Product Summary

1. Specification

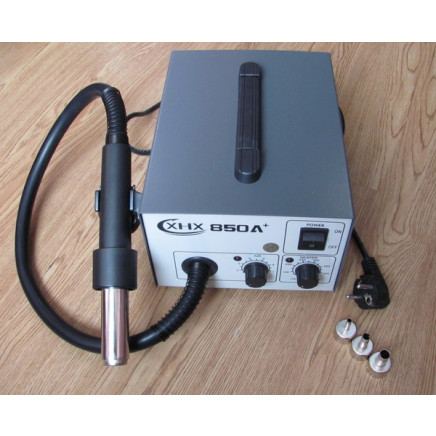

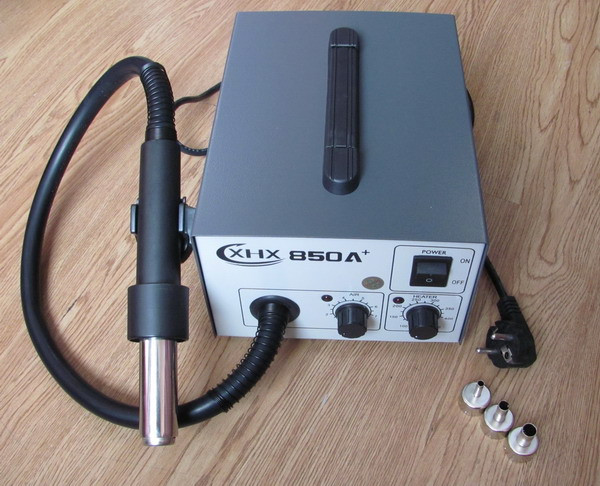

XHX-850A+ is designated by luminous tube common constant temperature.

Power: 580W
Type of carrent and pump: Double vortex soft blower
Amount of air current: 100l per minute (maximum)
Range of temperature: 100 C - 450 C
Manner of display: LED luminous tube
Length of handle component: 110cm
Size of machine: Height 14.5cm, Width 10.5cm, Depth 22.0cm
Weight of machine body: 2200 Gram

2. Characteristics

1) Tack back circuit with sensor
Micro-computer touch off temperature control
Displayed by LED
With big power, the temperature can rise quickly
The temperature that is not influenced by the amount of wind is stable and accurate.

2) The amount of air current can be adjusted continuously in a wide range.
Double vortex soft blower, the temperature can be adjusted expediently.
It adapt to multifold purpose.

3) The handle contains sensitive magnetic inductor.
The system gets into workingmode as soon as the handleis holded in hand; and it turns into waiting mode when the handle is put back on the bracket.
The Real-time manipulation is convenient.

4) The system which prives automatic cooling function can prolong life - span of the heater and protect the hot wind gun.

5) It takes little place of table-board as its size is small.

3. Use

1) It is fit for unsolder of diversiform components such as: SOIC, CHIP, QFP, PLCC, BGA etc.

2) It can be used for hot shrink, drying, getting rid of paint, getting rid of binding, ice-out, warm-up, antisepsis and gluey jointing etc.
