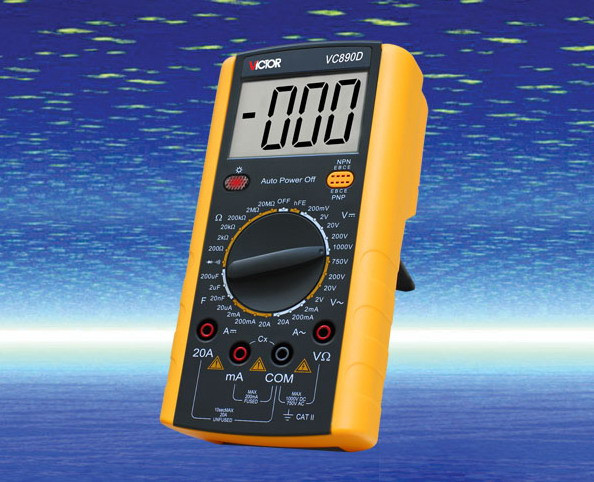

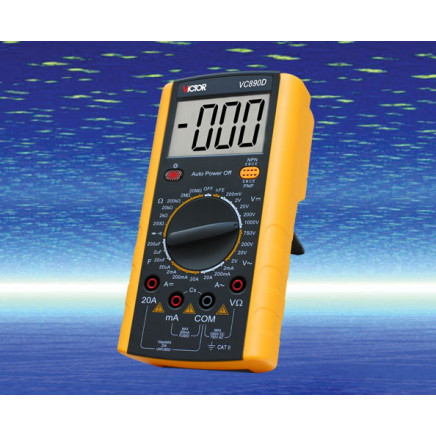

VC890D 3 1/2 Digital Multimeter

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Model: VC890D
Shipping Weight: 0.8kg
176 Units in Stock

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

·New type holster, streamline design.
·Large LCD makes the reading clearly.
·Metallic screen board with stronger antimagnetic and anti-interferential function.
·Full function protection, anti-high voltage circuit design.

Basic Function	Range	Basic accuracy
DC Voltage	200mV/2V/20V/200V/1000V	±(0.5%+3)
AC Voltage	2V/20V/200V/750V	±(0.8%+5)
DC Current	20uA/2mA/200mA/20A	±(0.8%+10)
DC Current	200uA/20mA/200mA/20A	?
AC Current	2mA/200mA/20A	±(1.0%+15)
AC Current	20mA/200mA/20A	?
Resistance	200?/2k?/20k?/200k? /2M?/20M?	±(0.8%+3)
Resistance	200?/2k?/20k?/200k?/20M?	?
Capacitance	20nF/2uF/200uF	±(2.5%+20)
Celsius	(-40~1000)?	?

Special Function
Diode	?
Transistor	?
Continuity buzzer	?
Low battery indication	?
Data Hold	?
Auto power off	?
Function protection	?
Restorable fuse protection	?
Shockproof protection	?
Input impedance	10??
Sampling rate	3 times/s
AC Frequency response	40~400Hz
Operation way	Manual range
Max. Display	1999
LCD size	55×43mm
Battery	9V (6F22)
Product color	Case: dark gray; Holster color?yellow
Product Net Weight	Approx:270g
Product Dimension	168×87×47mm
Standard Accessories	Test leads?battery?instruction manual?TP01
Standard Accessories	temperature probe?with temperature function??Testing accessories
Standard inner packing	Color box
Standard Quantity Per Carton	30 pcs
Carton size	405×350×450mm
Standard Gross Weight	Approx:25kg
