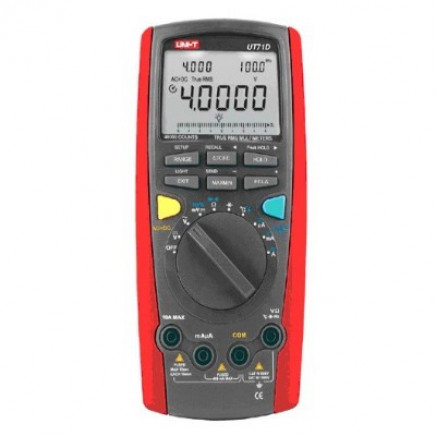

UT-71D Digital Multimeter

UT-71D Digital Multimeter

More Views

UT-71D Digital Multimeter

Be the first to review this product

More than 10 available

Availability: In stock

  • Model: UT-71D
  • Shipping Weight: 0.9kg
  • 196 Units in Stock
Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now
OR
UT-71D Digital Multimeter

Also available at

Login or Signup to View Links.
Description

Details

Specifications:
    • Basic Functions Range Best Accuracy
    • DC Voltage 400mV/4V/40V/400V/1000V (0.025%+5)
    • AC Voltage 4V/40V/400V/1000V (0.4%+30)
    • AC Bandwidth 100KHz
    • DC Current 400µA/4000µA/40A/400mA/10A (0.08%+8)
    • AC Current 400µA/4000µA/40A/400mA/10A (0.5%+15)
    • Resistance 400 /4k/40k/400k/4M/40M Ohm(0.3%+8)
    • Capacitance 40nF/400nF/4µF/40µF/400µF/4mF/40mF (1%+20)
    • Temperature (oC) -40oC ~ 1000oC (1%+30)
    • Temperature (oF) -40oF ~ 1832oF (1.5%+50)
    • Frequency 40Hz/400Hz/4kHz/40kHz/400kHz/4MHz/40MHz/400MHz (0.01%+8)
    • Duty Cycle 10%~90% (1%+30)
    • 4~20mA Loop 0~100% (1%+50)
    • Power Measurement
    • Special Functions
    • Fused 10A Range
    • Auto Ranging
    • Current Measurement Alarm
    • Function Set Up
    • Auto Ranging
    • Voltage & Current :
    • AC + DC Measurement
    • Data Logging 9999
    • Data Recall
    • Diode
    • Continuity Buzzer
    • True RMS
    • Peak Hold
    • Max/Min Mode
    • Relative Mode
    • Data Hold
    • USB
    • Double Display Backlight
    • Full Icon Display
    • Sleep Mode
    • Low Battery Display
    • Input Impedance for
    • DC Voltage Measurement
    • DC 200mV : Around 2.5GW
    • All Other Ranges : 10M Ohm
    • Max. Display 40000
    • Analogue Bar Graph


  • GENERAL CHARACTERISTICS

    • GENERAL CHARACTERISTICS Power 9V Battery (6F22)
    • LCD Size 73 x 50 mm
    • Product Color Red and Grey
    • Product Net Weight 384g
    • Product Size 200 x 93 x 40mm
    • Standard Accessories Test Lead, English Manual, Battery, Alligator Clip, USB Interface Cable,
    • Software, Point Contact Temperature, Probe, Carrying Bag, Test Clip
    • Standard Individual Packing Gift Box
    • Standard Quantity Per Carton 20 pcs
    • Standard Carton Measurement 542 x 376 x 388mm
    • (0.079 CBM Per Standard Carton)
    • Standard Carton Gross Weight 18kg
Additional Information

Additional Information

Manufacturer N/A
Send inquiry? Yes
Trending Product N/A
Invite Distributors N/A
Credit Points N/A
Price Match N/A
