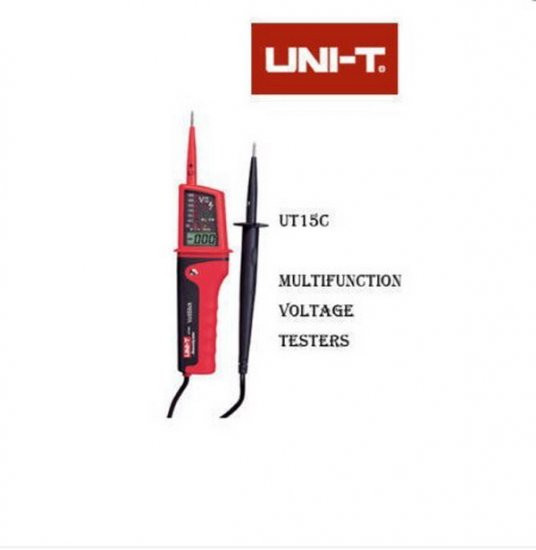

UNI-T UT15C Multifunction Voltage Tester Features
- LCD (AC/DC), 24V to 690V: ±(3%+5)
- Functions:
- AC/DC voltage measurements
- continuity test
- phase rotation test
- single lead (L2) voltage detection
- short circuit detection
- Autoranging
- Low battery indication
- Positive and negative polarity detection
- Torch
UNI-T UT15x Multifunction Voltage Tester Comparative Specifications
|
Model
|
UT15A
|
UT15B
|
UT15C
|
|
Short circuit detection
|
no
|
yes
|
yes
|
|
Display
|
no
|
no
|
LCD (AC/DC),
24V to 690V: ±(3%+5)
|
UNI-T UT15C Multifunction Voltage Tester Technical Specifications
|
Voltage steps (AC/DC)
|
12V: between 0 to 12V LED will illuminate
|
|
24V: between 19V ± 2V LED will illuminate
|
|
50V: between 48V ± 6V LED will illuminate
|
|
120V: between 110V ± 20V LED will illuminate
|
|
230V: between 200V ± 20V LED will illuminate
|
|
400V: between 340V ± 30V LED will illuminate
|
|
690V: between 520V ± 30V LED will illuminate
|
|
Continuity test
|
Range 0 to 100k?.
The continuity LED will illuminate and buzzer will sound.
|
|
Phase rotation test
|
50Hz to 60Hz
|
|
Single lead (L2) voltage detection
|
It is intended only as a quick check.
100V to 690V
50Hz to 400Hz
|
|
Power
|
1.5V Battery (AAA) × 2
|
|
Dimensions (H × W × D), mm
|
275 × 51 × 30
|
|
Weight, g
|
210
|
UNI-T UT15C Multifunction Voltage Tester Package contains
- Voltage tester UT15C
- Battery
- User Manual
