Abstract

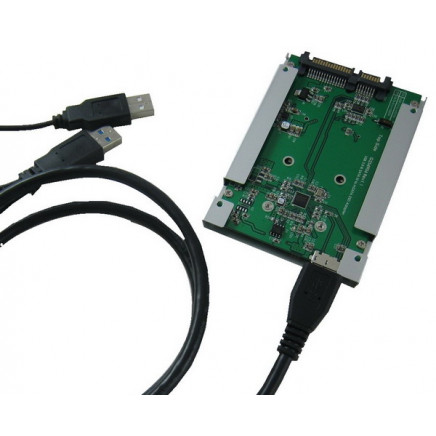

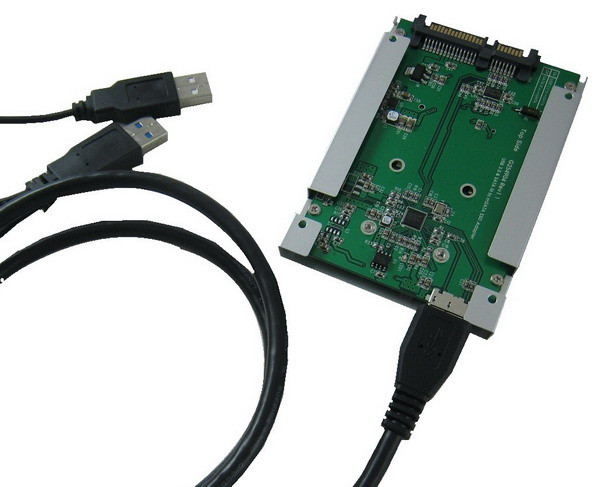

U423D is an economical 2.5" SSD. It uses 2.5" ultra-lightweight aluminum material shell, provide the mSATA SSD converted to USB 3.0 or SATA 6Gb/s interface, containing a mini PCI-e connector and two -- USB 3.0 connector and SATA 7+15pin connector to the host. After assembly is completed, it is 2.5" SSD, or USB to SATA external enclosure. It can be normal operation in a variety of operating systems such as DOS, Windows 95, 98, XP, 2000, Vista, Win 7, Linux,, Unix, etc. .

U423D adapter allows mSATA SSD as a system disk to start the operating system directly, without having to install any drivers.

Specifications

Compliant with ATA revision 3.0 Standard
Compliant with USB3.0 Specification Revision 1.0
Support UASP Protocol Specification Revision 1.0
To Host – SATA 7+15pin connector
To Host – USB 3.0 Micro B type female connector
Device – Mini PCI-e 52pin connector
mSATA SSD Form Factor as below:
Full Size: 50.95 mm (L) x 30mm (W)
Half Size: 26.8 mm (L) x 30 mm (W)

Application

1. Notebook
2. Internet Appliances
3. Kiosks
4. Industrial Computers
5. Routers
6. Firewalls

Support storage device

Intel 525, 313, 311, 310 Series mSATA SSD
Samsung PM800, PM810, PM830 Series mSATA SSD
Toshiba HG,SG2 Series mSATA SSD
Sandisk Gen 2 pSSD, P4 Meteor5 Series mSATA SSD
Any compatible mSATA SSD Card
