Abstract

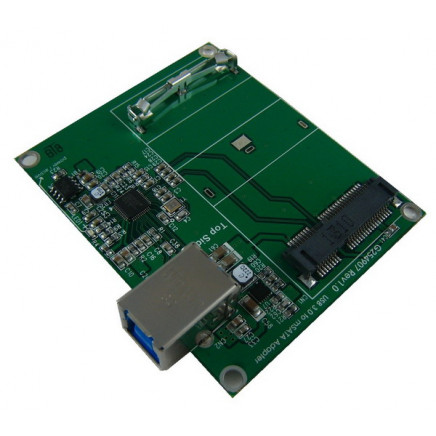

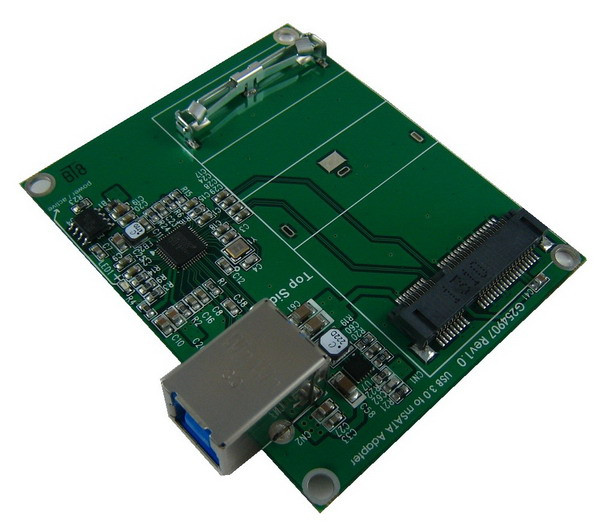

U213A is a USB3.0 converter, provides SATA 6Gb/s interface mSATA SSD converted to USB3.0. It has built a mini PCI-e connector for mSATA SSD and a USB3.0/B type connector to host connects. After assembly, it is the USB to mSATA Module, can operate in a variety of operating systems. Such as DOS, Windows 95, 98, XP, 2000, Vista, Win 7, Linux, Unix.

U213A adapter allows the mSATA SSD as a system disk to boot the operating system directly, without having to install any drivers.

Specifications

Compliant with ATA revision 3.0 Standard
Compliant with USB3.0 Specification Revision 1.0
Support UASP Protocol Specification Revision 1.0
Device – Mini PCI-e 52pin connector
mSATA SSD Form Factor as below:
Full Size: 50.95 mm (L) x 30mm (W)

Application

1. Notebook
2. Internet Appliances
3. Kiosks
4. Industrial Computers
5. Routers
6. Firewalls

Support Storage Device

Intel 525, 313, 311, 310 Series mSATA SSD
Samsung PM800, PM810, PM830 Series mSATA SSD
Toshiba HG,SG2 Series mSATA SSD
Sandisk Gen 2 pSSD, P4 Meteor5 Series mSATA SSD
Any compatible mSATA SSD Card
