Features:

- Support 2. 5 - 6. 5V devices
-USB interface, power supply, an external 5V power supply
- With the PC through USB universal serial port connected, transfer rate of 12MHz / s
- Suitable for notebook computer use, also suitable for desktop use
- Over current protection, effective protection against damage and device programmer
- Check all pins, you can check out any of the pins of the contact state
-48 Universal locking pin socket import can be a variety of universal adapter optional
- Support OS WINDOWS7 / vista / 2000 / 2003 / xp
- Plastic case, small size, light weight, low power consumption
- Automatic detection of manufacturers and models
- MCU timing, programming speed has nothing to do with the computer
- Software Support: Top Win ver6. O more

Performance and specifications:

1. Software: TopWin (for windows98se/2000/m3/xp)
2. Measured speed (Pl 11 / 800M, windos98se, USB1. 1)
-28F320 write + proofing 104 seconds
-29LF320 write + proofreading 112 seconds
-P89c58 5 seconds to write + proofing
3. Volume: 150 x110x26
4. Weight: 275g
5. Power: <2.5w (5v/500mA)
6. Lock Block: 40Pin socket import high-quality (replaceable)

Package List:

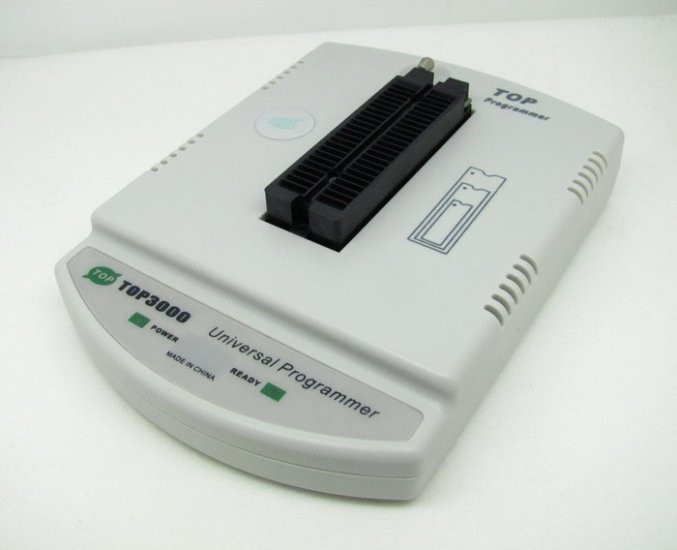

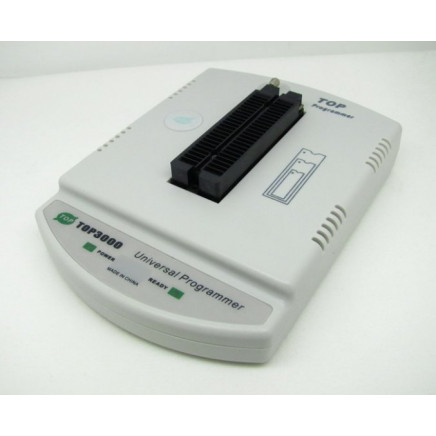

1X TOP3000 Universal Programmer
1X 5V/1A power (standby)
1X USB cable
1X TOP3000 Manual
1X TopWin software manual
1X TopWin Software CD
