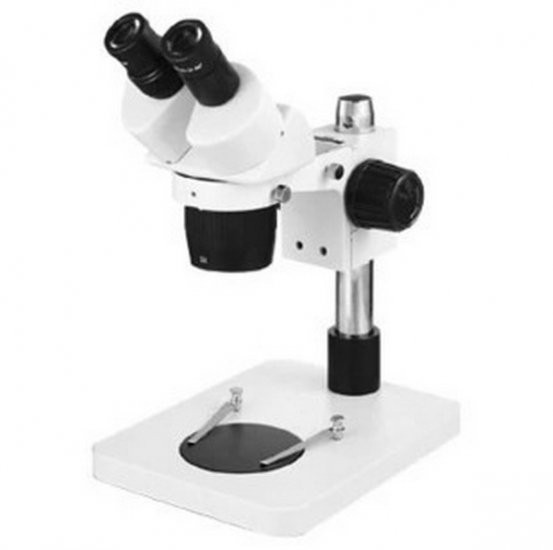

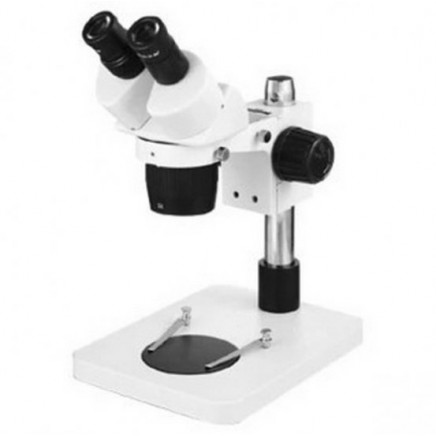

SEEPACK SPK-60L 10X-30X Stereo Microscope

Technical parameter

Working Distance:95mm

Magnification:10X-30X

Mode Of Zoom: Two Files Zoom

Light:Top Light Halpgen Lamp;Bottom light Fluorescent Lamp

Eyepiece:High SWH10X Eyespots Ultra Wide-angle Eyepiece,Field Of View ?23mm

Field Of View:5.1mm-33mm

Circular Column Diameter:?30mm

Pillar Center To Host Center Distance:140mm

Operation

Use the glass stage

Press the glass stage on the sunken place then the other side of the glass will be lifted.

Adjust the degree of tighness of the focusing arm

1. If you want to adjust degree of tightness of the focusing arm, you can hold one of the focusing knobs and turn anther one to attain a suitable position. The degree of tightness relis on the direction to be turned. The clockwise direction is tight, otherwise, is loose.

2.The suitable positon of tightness can make the adjustment more comfortable and prevent the focusing bracket from slipping down by its weight during the observation.

Set the specimen slide

1.Set the specimen on the center of stage plate. If necessary, clamp the slide with the clips.

2.Turn on the light.

Adjust the specimen slide

1.Turn the zoom control knob to the maximum magnification.

2.Turn the diopter adjusting rings to the zero.

3.Observe the specimen through the right eyepiece and make the image clear by turning the focusing knob.

4.Rotate the zoom control knob to the minimum magnification.

5.Observe the specimen through the right eyepiece and make the image clear by turning the right diopter adjusting ring.

6.Redo the step1 3 4 and 5 tillthe right adjusting ring is more precise.

7.Do the step 4 and make the image clear which is observed through the left eyepiece by turning the left diopter adjusting ring.

Connect the Digital head With the Monitor or TV set

1.Plug one end of the PVA cable into the socket of the digital head.

2.Plug the C-VIDEO or S-VIDEO of the PVA cable into the correct socket of Monitorn (TV set).

3.Connect the 12V DC power with the power socket of the PVA cable.

Appear the image on the Monitor or TV

1.Connect the power supply and then turn on the Monitor or TV.

2.For the monitor, the connect sign model must be chosen(C-video or S-video) and for TV. the channel must be set to the video channel.

3.Pull the pole out and adjust the focusing knob and then the image will appear on the screen clearly.

Connect with the computer

1.Plug one end of the PVA cable into the socket of the digital head.

2.Plug one of the C-VIDEO or S-VIDEO into the A/D board.

3.Plug the USB of the A/D board into the USB socket of the computer.

4.If your computer is mounted capture card, you can connect the C-VIDEO or S-VIDEO with the computer directly.

5.Connect the 12V DC power with the power socket of the PVA cable.

Appear the image on the computer

1.Turn on the power supply and let the computer work.

2.Install the software and the driver of the A/D board.(If they have been installed, this step can be omitted).

3.Double click the icon of the software, and then the video window will appear. You can set the size of window according to your linking.

4.Draw out the pole and adjust the focusing knob, and then the image will appear on the computer screen clearly.

5.If no image or the image without color, it maybe because the model of the input signal does not match the output signal of CCD or the model of C-VIDEO or S-VIDEO is not correct. The detail of operation refers to <software operation manual>.

Adjust the image

1. put the base, stand and digital head correctly, then fix the lock-screw tightly.

2.Put the object on the base stage.

3.Observe the object through the eyepiece and adjust the focusing knob to make the image of the object clearly.

4.Move the digital head or the object gently to adjust the image agreeing with observer.

Brief instruction of the software

1.The program design of the software is up to date, and the Chinese/English interface can berth powerful delineation bar which be used much conveniently and rapidly. You can finish most of analyze work only to click the mouse.

2.Can afford may powerful area choosing tools which can analyse any area your linking at will, such as adjusting hue and image, dealing with mathematical morphology, image matching, texture analyse, character identify and so on.

3.geometry character measuring function, automatically analyzing function such ad slightness body, grain body, line body and so on. The outcome can be kept in data and can be made into chart and so forth.
