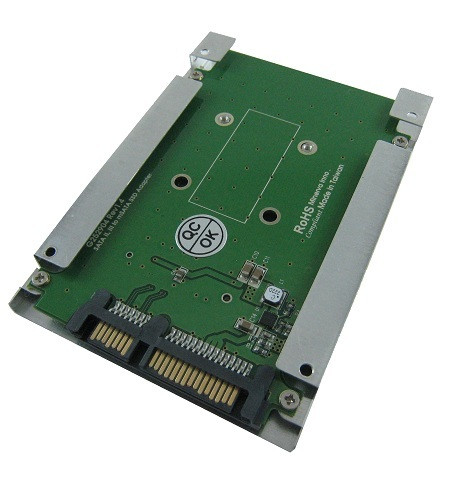

SATA III to mSATA Converter with 2.5 Inch Housing
The SATA III to mSATA Converter with 2.5 Inch Housing is SATA III to mSATA converter, providing one 7+15pin SATA connector on the host connection and one Mini PCI-e 52-pin connector on the SSD storage devices connection.
The SATA III to mSATA Converter with 2.5 Inch Housing converter allows the installation of an mSATA SSD as system disk, boot the operating system directly without having to install any drivers, but does not affect the execution speed of the SSD storage devices.
It works with DOS, Win95, Win98, Win XP, Win 2000 and Win7, Linux and Unix
Specifications:
-
Fully compliant with SATA revision 3.0
-
PCI Express Mini Card Electromechanical Specification 1.2
-
PWM Power IC / 1.4MHz 5.5V synchronous buck converter
-
mSATA input voltage: 3.3V ±5%, input current: 3A
-
Data transfer rate: 6Gb/s bandwidth
-
Operating temperature – Commercial (0°C to +70°C)
Supports mSATA SSD Sizes :
- Full size: 50.95 mm (L) x 30mm (W)
- Half size: 26.8 mm (L) x 30 mm (W)
Supports mSATA Storage Device:
- Sandisk U100 Series mSATA &compatible Storage
- Samsung PM830 Series mSATA & compatible Storage
- Micron RealSSD C400, C400v mSATA, Crucial mSATA & compatible Storage
Micro SATA Cables PN # MSATA-SATA-3 HSG
