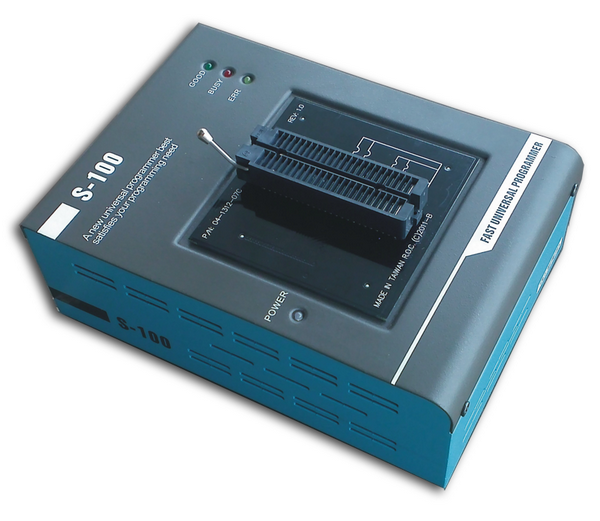

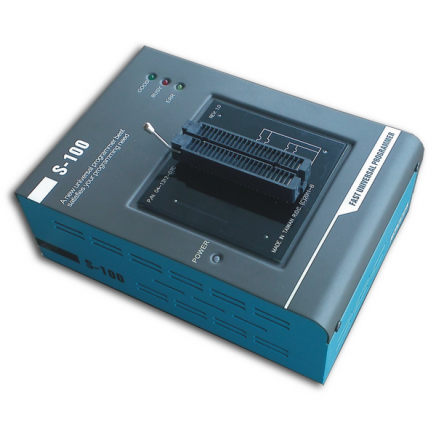

USB Interfaced Ultra-high Speed Stand-alone Universal Device Programmer
Features:
• Support More than 300 IC manufacturer, More than 80000 pcs devices.
• Support devices with Vcc Voltages as low as 1.2v
• Extremely fast speed. 64 Mb NOR FLASH memory in 12 seconds and 1Gb NAND in 110 seconds.
• Built with 144 universal pin-drivers. Universal adaptors are available for varies packages up to 144 pins. New device support will be easier.
• The programmer is controlled by a PC via USB2.0 (high speed) to program a chip.
• ISP/ICP programming capability available via ISP/ICP adaptor.
• Only IC manufacturer approved programming algorithms are used for high reliability. (+5%~-5%) and (10%~-10%) Vcc verification enhances programming reliability.
• Over-current and over-voltage protection for safety of the chip and programmer hardware.
• WINDOWS XP/Vista/Win7 compatibility
Hardware & Electrical Specifications:
• Supported devices: EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR & NAND)n, BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU. .
• Packages supported: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, uBGA, CSP, SCSP, ...
• PC interface: USB2.0
• Power?
Power source?100~240 V AC 50~60 Hz ?
Power consumption : ~ 0.5 A
• Dimension ?
W x D x H 134mm x 188mm x 65mm
• Weight?
~ 1.5kg
• Operation temperature ?
0 ~ 40? (32 ~ 105?)
