Abstract

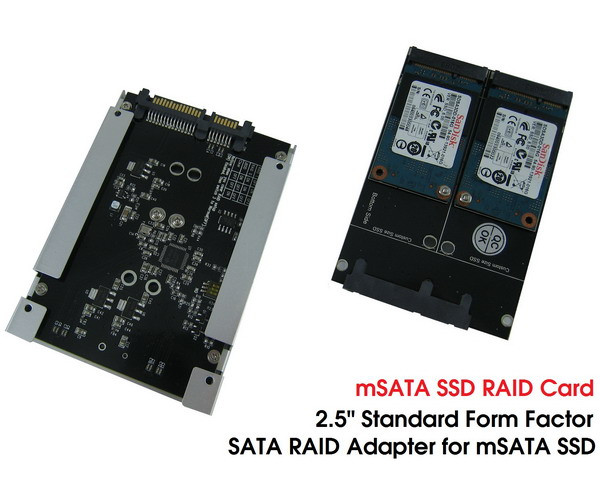

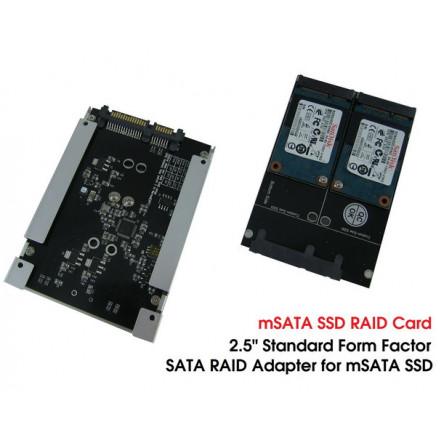

R2021D provide 2-port Mini PCI-e SSD connector, built-in 2.5-inch shell SATA II high-performance array card. It provides hardware to setup the RAID level, no driver, BIOS or software required for RAID installation, can be switched to RAID 0, RAID 1, JBOD three mode operation settings.

Specifications

mSATA SSDx2
Built-in the JMB390 high performance processor
Fully hardware-accelerated RAID Engine
Supports PM aware and non-PM aware host
Supports Native Command Queue (NCQ)
Supports RAID levels: 0 / 1 / JBOD3-button
switch to complete the RAID mode setup
No external DRAM or processor required for RAID operation

Application

Notebook, Ultrabook
RAID Subsystem
NAS Servers
Backup Systems
Disk Clone Systems
Serial ATA Enclosures
Large Capacity & High Performance SSD
Solid State Drive
Very Large Capacity Disk Systems
SATA Ports Expander
