Abstract

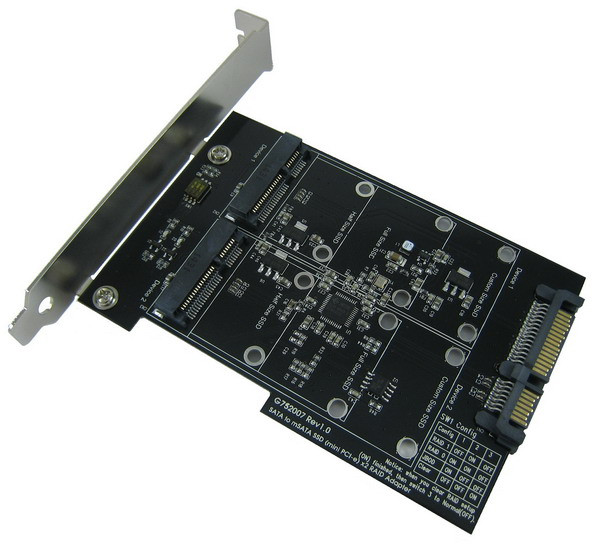

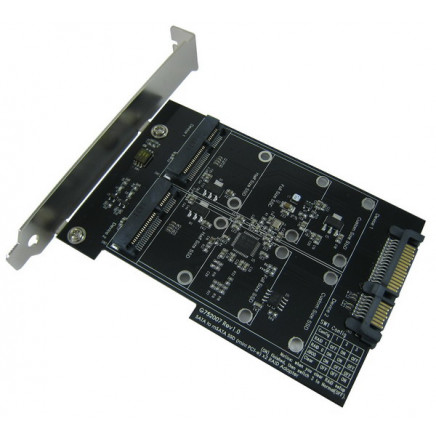

R2021B/C provide 2-port Mini PCI-e SSD connector SATA II high-performance array card. It provides hardware to setup the RAID level, no driver, BIOS or software required for RAID installation, can be switched to RAID 0, RAID 1, JBOD three mode operation settings.

Specifications

SATA II single-channel maximum capacity support to 4TG
Built-in the JMB390 high performance processor
Fully hardware-accelerated RAID Engine
Supports PM aware and non-PM aware host
Supports Native Command Queue (NCQ)
Supports RAID levels: 0 / 1 / JBOD
3-button switch to complete the RAID mode setup
No external DRAM or processor required for RAID operation

Application

RAID Subsystem
NAS Servers
Backup Systems
Disk Clone Systems
Serial ATA Enclosures
Large Capacity & High Performance SSD
Solid State Drive
Very Large Capacity Disk Systems
SATA Ports Expander
