Features
1. Intensity Adjustment, Good Variable Control Permit Gradual Increase in Brightness with Four-zone Lighting Control Separately
2. Reliability and Durability
3. Low Power Consumption,Super Brightness
4. Metal Shell, ESD
5. Reasonable Design, Uniformity Light, Non-flicker & Shadow
Applications
Stereo microscopes and machine vision systems to inspection or imaging as illumination.
Specifications
1?LED Q’ty: 72LEDs
2?Mounting Diameter: 62mm,Outer Diameter: 98mm
3?Input Power: DC12V 600mA
4?Input Voltage: Universal 100-240V AC
5?Output Power: 7.2W
6?LED Color Temperature: ±6500K
7?LED Luminance: ?15000mcd
8?LED Angle: 18°?Consistent?
9?LED Lifetime: 100,000 hrs
10?Working Distance: 95-115mm
11?LED Color: White?Optional Other Colors?
Standard Configuration

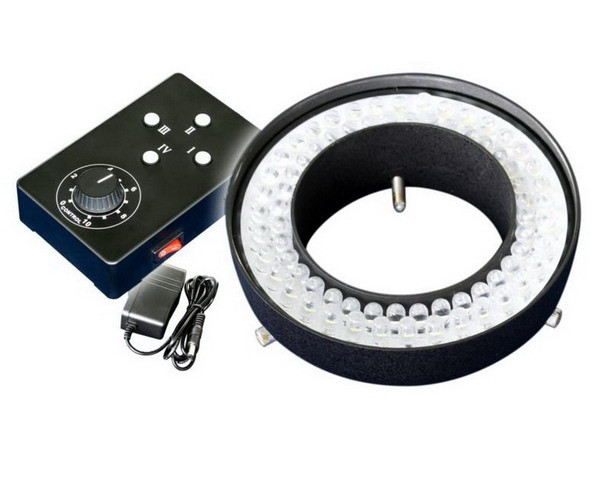

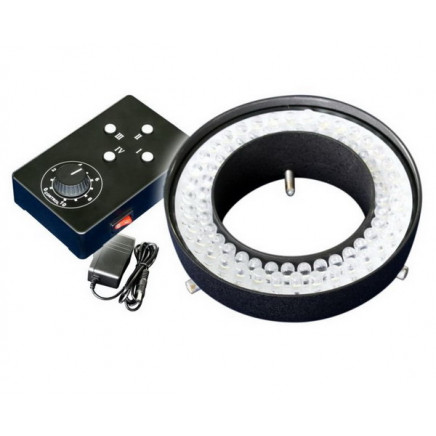

72LED Lamp, Light Control Box, DC12V Power Supply
Options Accessories
1. Polarizer Suit: ?95mm Analyzer and?26mm or ?42mm Polarizer (Alternative)
Effects: Reduce glare as to the light is soft for observe; more uniform light to generate clearer image.
2. Frosted Soft-filter Attachment: ?95mm, inspection of sample with heavy reflecting lights
3. Power Cable Options : UK, USA, Europe, Australia or Other System.
