Summary

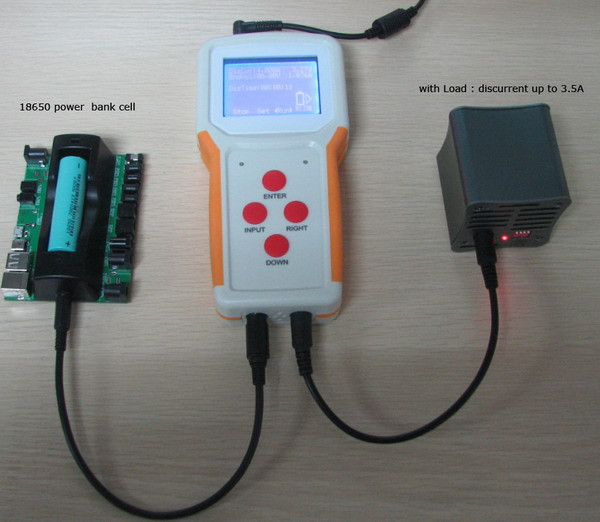

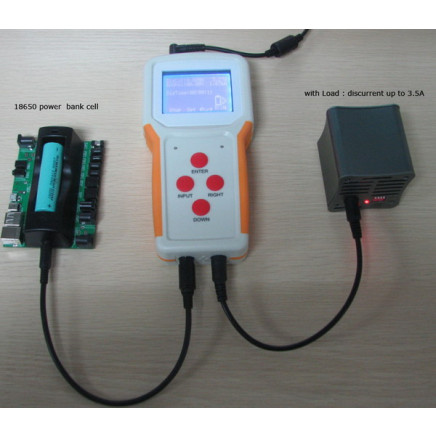

RFNT4 is a single channel and multifunction battery tester.

Features
? Support polymer li-ion battery, NI-MH battery, Ni Cd battery, power, adapter
? Supply for charging, discharging, battery testing, power/adapter testing, internal resistance testing, and voltage testing, capacity testing.
? LCD screen display function information.
? Enter, Down, Right, Adjust function keys.
? Charging consists of activate, pre-charge, constant current charge, constant voltage charge, end of charge.
? Discharging can adjust to constant current discharge, system support 1000mA Max, can set by DIS.CHG. External load, Max discharge current add to 4A
? Internal resistance testing support 20000m? Max. Voltage testing support DC 50V Max.
? Capacity testing support real time charge capacity and discharge capacity.

Parameters
? Size?201 x 99 x 35 mm
? Weight:383g
? Adapter
Input 100?240V Output 24V/3A
? Display mode
Segment LCD with white backlight + LED in red and green
? Discharge mode
Constant current discharge, system support 1000mA Max, can set by DIS.CHG. External load, Max discharge current add to 4A
? Charge mode
Constant current and constant voltages are the main mode. Active charge and pre-charge are available according to different battery voltage.
