Introduction:

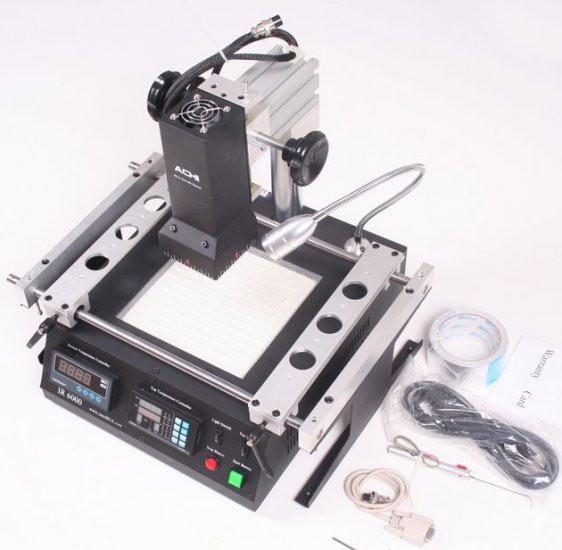

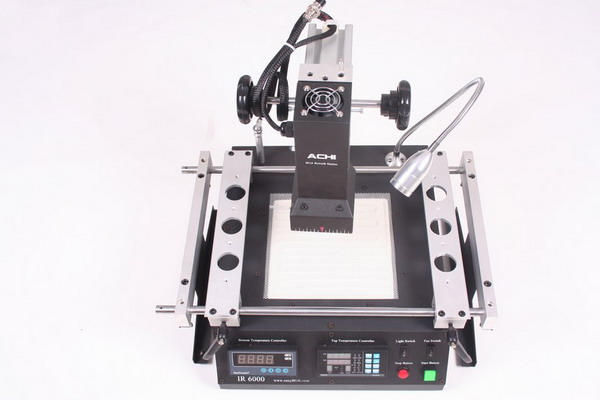

ACHI IR6000 BGA Rework Station is designed to meet the increasing everchanging demands of today`s fast BGA Rework environments (R).

Products apply to the welding of CBGA CCGA CSP QFN MLF PGA, all the green epoxy type BGA chip and other special parts such as metal shielding cover, plastic connector replacement of various and soft PCB.

Machine comes along with Manual and video demonstration CD-ROM,The information is easy to understand. Even if you have never engaged in BGA rework , it can be quickly mastered the technology

You’ll find its really the machine you need by its high integration Design, the smaller workbench, non-mixed cables and the convenient operation –all the process of soldering controlled by a button. Machine overall system integration Design, Rework station more integrated workbench area by area occupied by smaller, Didn’t mixed and disorderly of cables, use of one-button control, the ease of operation

The height of Top heating head may adjust by rotating the handle. The Top Infrared heater could rework BGA ICs of large size up to 70*70mm. The top& bottom temperature areas heat independently testing temperature, senstive temperature measurement sensor to obtain an accurate and instantaneous temperature reading and monitoring. The techology of closed-loop temperature control ensures accurate temperature process and even heat distribution.

The Linear guide type Bracket for BGA Reworks can be locked,adjusted by rotating the handle, It can fix PCB board easily, effectively prevent PCB board from deformation.

IR 6000 can be connected to a computer with a built-in PC RS232 serial port. It can be controlled by the software. it can set up 8 rising temperature segments and 8 constant temperature segments to control. It can save 10 groups of temperature curves at one time

The innovative design gets over the problem of ir heating rework station heating slowly and disorderly caused by the air flow. It can easy deal with the solder free soldering. The max temperature is up to 400 °C. It can easily deal with lead –free soldering work.

How to use

Please download this machine USER MANUAL HERE to see how to use.

Please download SETTING OF THE TEMPEATURE PARAMETERS MANUAL HERE to see how to set temperature.

Please watch the following demo videoes for how to do the rework.
