Description:

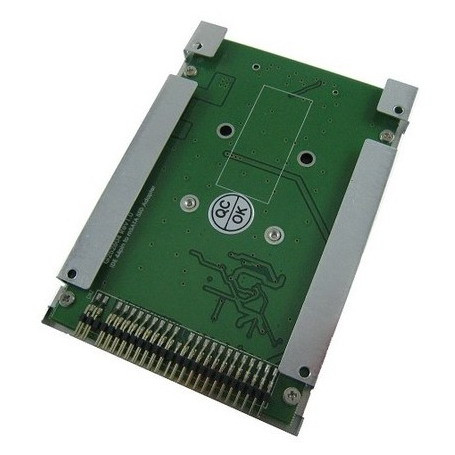

mSATA SSD to IDE convertr with 2.5” Housing

The IDE-MSATA-2.5IN converter is an economical 2.5 "SSD. It uses a 2.5" ultra-lightweight aluminum material shell, coupled with the mSATA SSD combination to IDE converter. When assembled, it can operate in a variety of operating systems. Such as DOS, Windows 95, 98, X P, 2000, Vista, Win 7, Linux, Unix, and so on.  The adapter allows the installation of mSATA SSD as system disk, boot the operating system directly, without having to install any drivers.

Specifications:
•Fully compliant with SATA revision 2.6
•PCI Express Mini Card Electromechanical Specification 1.2
•Fully compliant with SFF-8212 specification for 2.5” Drives.
•Fully compliant with Intel Common Building Block HDD Platform
•PWM Power IC / 1.4MHz 5.5V synchronous buck converter
•mSATA input voltage: 3.3V ±5%, input current: 3A
•Support ATA/ATAPI-7 specification.
•ATA/ATAPI Ultra DMA Mode 0, 1, 2, 3, 4, 5, 6, 7.
•ATA/ATAPI PIO Mode 0, 1, 2, 3, 4.
•Operating temperature – Commercial (0°C to +70°C)

Support the following form factor mSATA SSD:
•Full size: 50.95 mm (L) x 30mm (W)
•Half size: 26.8 mm (L) x 30 mm (W)

Support mSATA Storage Device:
•Intel 310, 311 Series mSATA module SSD
•Samsung PM800, PM810, PM830 Series mSATA module SSD
•Toshiba HG,SG2 Series mSATA Module SSD
•Sandisk Gen 2 pSSD, P4 Meteor5 Series mSATA module SSD
•Any compatible mSATA SSD Card

Note : mSATA SSD not included

Micro SATA Cables PN # IDE-MSATA-2.5IN
