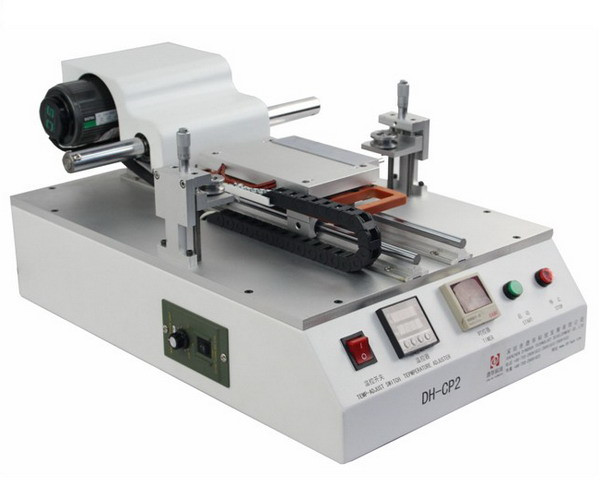

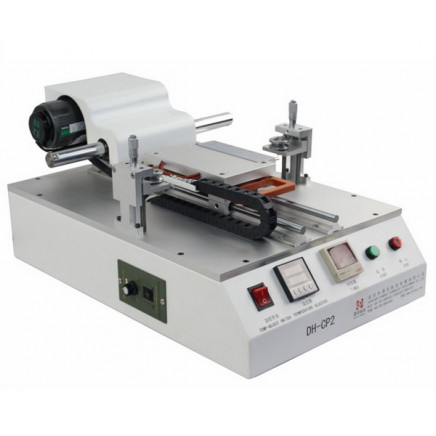

The machine use for Iphone Samsung HTC and touch screen, split screen assembly, and now many mobile phones (including Iphone Samsung) and touch screen display are connected together, the screen had cracked or broken touch screen replacement with overall , the cost is very high, replace the glass cover generally takes Depot Repair. Or the need to purchase expensive equipment package, including separate machines, SMT machines, laminating machine and bubble machine. Our water and glue bonding process, no equipment, no venue for ordinary repair shops. Despite a slow speed, but the cost is very low.
- Auto heating metal plate,maximum temperature is 400 centigrade
- Safety power system inside, avoiding the electric leakage problem
- Anti static body material,prevent the LCD and the flex cable being damaged from the static
- Easy installation
- Smooth metal plate to hold the touch screen without any damaged
- Power supplyAC 85V to AC 265V 50Hz ,almost for users from all over the world
- Temperature should be set to 80 centigrade to 100 centigrade,when you do the job on iphone and galaxy series etc.
- Compatible for LCD or LED screen assembly
- Safety power system to avoid leakage
Procedure of the job:
1. Wind the wire on the bar around the screw.
2.Put your lcd with touch screen on the metal plate,lcd side above
3.Turn on the machine and wait for the metal plate become 80-100 degree
4.Start to moving the mould front and back gently and slowly until the lcd seperated from the glass. If the glass is totally broken, please stick a tape on the surface of the glass to make it easy to seperate and avoid it hurt the lcd.
5.Finally you will find yourself do a good job,now start to get a well pay business!!
Note:
1. Must ensure that the machine's ground wire grounded.
2, do not let air flow blowing straight on the plate, otherwise it will affect the heater heating.
