Description:

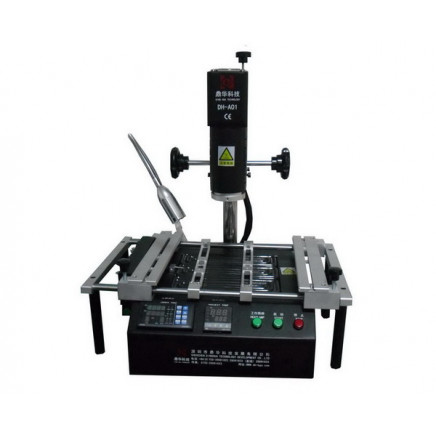

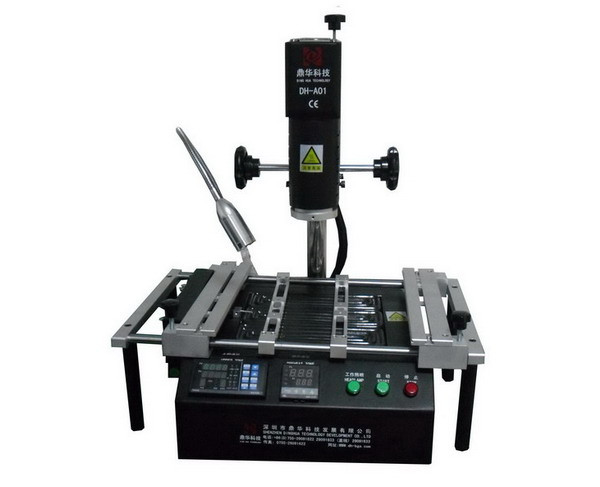

 1. This machine designed with 2 temperature zones , the upper heated by hot air and the lower part by IR, the upper and lower temperature are controlled separately, collocated with high-precision temperature control instrument, which can set 8 heating and cooling temperature segment, and store 10 groups of temperature meanwhile.

 2. It uses high precise k-type thermocouple closed-loop control and automatic temperature compensation system, with PLC and temperature module to enable precise temperature deviation to add and subtract 2 degrees. Meanwhile, external temperature measurement connector enables temperature diction and accurate analysis of real time temperature curve.

 3. The PCB layer board use an external movable stand, very flexible and convenient. V-groove PCB works for rapid, convenient and accurate positioning, which can meet all kinds of PCB board of positioning.

 4. Flexible and convenient removable fixture on the PCB board can protect the PCB fringe devices from damaging and transmuting. It can also adapt to various BGA chip’s repaired.

 5. Various sizes of BGA alloy nozzles, which can be adjusted 360 degree for easily installation and replacement. Overflow launder on the top of tuyere prevent components around BGA chip from damaged by blow hot during heating.

 6. 8 liters (down) and 8 segments constant temperature control. External lighting, convenient for work and observation

 7. After demolition and completion of welding, operators should make relevant preparations as hearing the warning voice; meanwhile it should use a large flow cross-flow fan by auto / manual to cooling of the PCB board , to prevent the deformation of PCB board to ensure the welding results.

 8. It approved CE certification, and this appliance was equipped with emergency stop switch and automatic power-off protection device when emergency happens.

 Power input 110VAC is available.
