Zhme 12V Recovery Winch Auto Winch 4X4 Winch for Offroad

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
15.0	US $ 255/ Piece

Price:US $255.0 / Piece

Trade Terms: FOB

Payment Terms: L/C, T/T

Price Valid Time:From Dec 17, 2014 To Mar 17, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:E9500S

Type:Electric Winch

Power Type:Series Motor DC

Pull Direction:Forward

Brand:Zhme

Applicable Environment:Mountain Road

Certification:CE

Export Markets:Global

Additional Info.

Trademark:ZHME

Packing:Strong Carton Box, Optional Pallets

Standard:CE

Origin:Ningbo, China

HS Code:84253190

Production Capacity:6000PCS / Month

Product Description

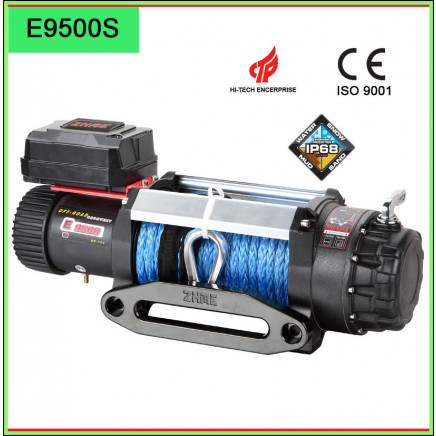

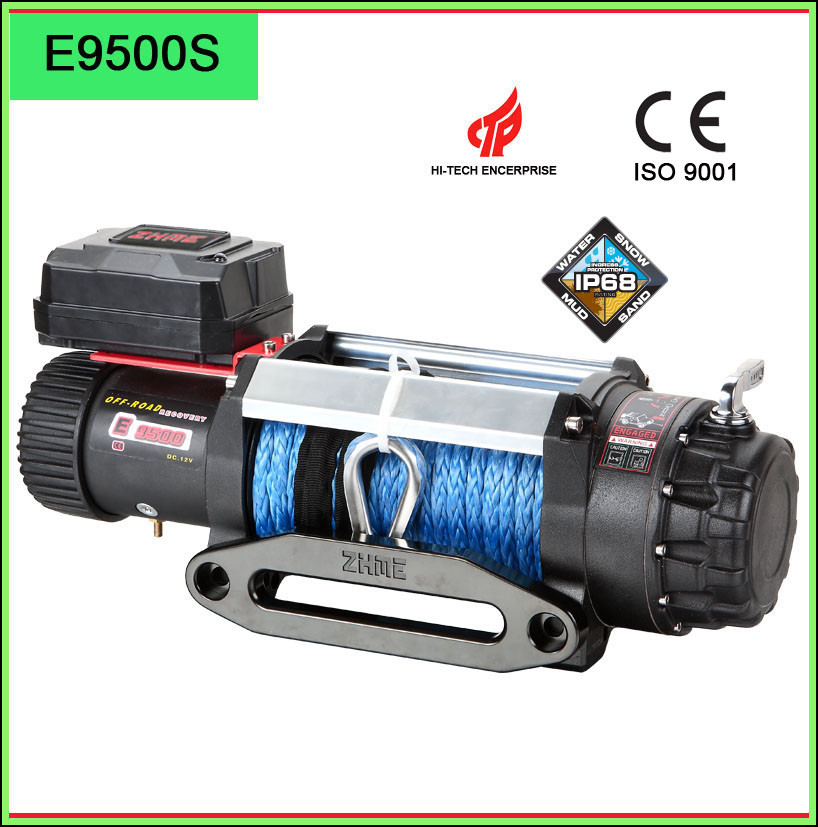

Electric water proof Winch E 9500 S

1. All sealed high perference motor. Heavy duty series wound motor delives superior torque output and faste line speed, quality O-ring sealed for water resistant.

2. Zhme patent special oil seals with double lips fixed on drum supports for water proof.

3. Automatic, full load brake.

Rated line pull: 9500lbs (4310 kgs) Single line.
Motor: Seires Wound 6.0 HP/4.4 kw, 12V DC.
Gear Train: 3 Stage Planetary
Gear Ratio: 212: 1
Clutch Sliding Ring Gear
Braking action: Automatic in the drum
Fairlead: 4-way Roller Fairlead
Rope: Synthetic rope 9.5mmX26m
Drum size: 2.5"X 9.0" ( 63mm X 224mm)
Dimensions: 23"X6.7"X8.4"(552mm X 170mm X 214mm)
Mounting bolt pattern: 10" X 4.5" ( 254mm X 114.3mm)
Battery: Recommended 650 CCA minimum for winching 25 Square mm, 72" ( 1.83m)
N. W: 79lbs (36 kg)
Packing: 620mm X 200mm X 390mm / Carton

One 20 feet container covers 400 cartons, If need, Use pallets.

Accessories:

PERFORMANCE
Line speed and motor current (first layer)	Line pull	Lbs	0	2000	6000	8000	12000	15000
	Line pull	Kgs	0	907	2722	3629	5443	6804
	Line speed	FPM	19.7	10.2	8.5	7.9	5.9	3.9
	Line speed	MPM	6	3.1	2.6	2.4	1.8	1.2
	Motor current	Amps	70	150	200	250	330	420
