Z41W-16p/25p/40p Stainless Steel Gate Valve

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

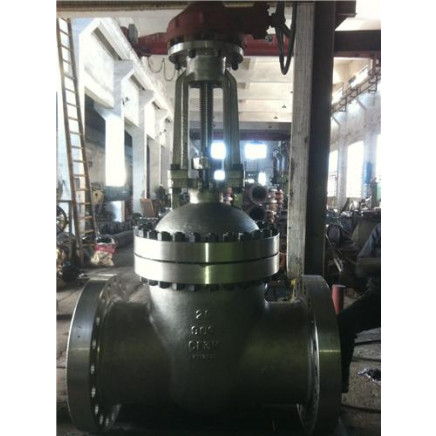

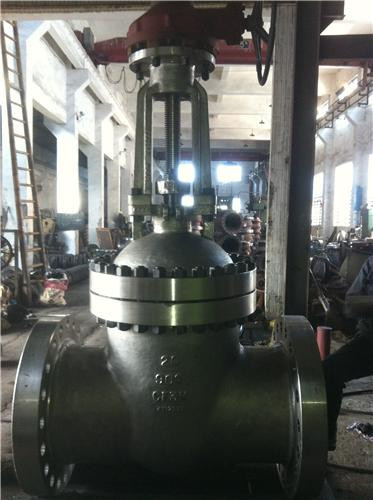

Z41W-16p/25p/40p Stainless Steel Gate Valve

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, EXW, CIF, DDP

Payment Terms:L/C, T/T, Western Union, Paypal

Trademark:SHANGHAN/Customer Label/OEM

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Type:Direct-acting

Material:Cast Steel

Connection Form:Flange

Pressure:1.6/2.5/4.0

Actuator:Manual

Seal Surface:Wedge Gate Valve

Thread Position of Valve Rod:Inside Gate Valve

Usage:Regulation

Standard:ANSI

Application:Industrial Usage, Water Industrial Usage, Household Usage

Body Material:Stainless Steel

Bonnet:Stainless Steel

Disc:Stainless Steel

Yoke Nut:Stainless Steel

Hand Wheel:Brass

Export Markets:Global

Additional Info.

Trademark:SHANGHAN/Customer Label/OEM

Packing:Braid Bag, Container, Wooden Case

Standard:API/GB/JIS/KS/DIN

Origin:Hebei, China

HS Code:8481804090

Production Capacity:3000ton Per Month

Product Description

Z41W-16P/25P/40P Stainless Steel Gate Valve
This valve is suitable the nitric acid type pipeline which all opens all shuts, not use for throttle flow

Main parts and materials For Z41W-16P/25P/40P Stainless Steel Gate Valve

Valve body	Stainless steel
Bonnet	Stainless steel
Disc	Stainless steel
Yoke nut	Stainless steel
Hand wheel	Brass

Function and Specification of Z41W-16P/25P/40P Stainless Steel Gate Valve

Type	Nominal pressure (MPa)	Testing pressure		Suitable temperature( ºC )	Suitable medium
		Strength(Water)(MPa)	Enclose(Water)(MPa)
Z41W-16P	1.6	2.4	1.8	? 200	Nitric Acid
Z41W-25P	2.5	3.8	2.8
Z41W-40P	4.0	6.0	4.4

Manufacturing Process of Z41W-16P/25P/40P Stainless Steel Gate Valve
(01)Mold warehouse-----(02)Wax-----(03)Repair mold line ----(04)Wax polish ----(05) Tuple trees ----(06)Cast molding----(07)Dry-----(08) Dewaxing ----(09)Wax equipment ----(10) Smelting

Outline and connecting measurement of Z41W-16P/25P/40P Stainless Steel Gate Valve

Type	Nominal diameter DN(mm)	Measurement(mm)											Reference weight(KG)
Type	Nominal diameter DN(mm)	L	D	D1	D2	D3	b-f	Z-d	H	H1	H2	D0	Reference weight(KG)
Z41W-16P	15	130	95	65	46		14-2	4×14	175			120	3.38
	20	150	105	75	56		16-2	4×14	180			140	4.18
	25	160	115	85	65		16-2	4×14	210			160	5.52
	32	180	140	100	76		18-2	4×18	280			180	7.72
	40	200	150	110	84		18-2	4×18	350			200	9.52
	50	250	165	125	99		20-2	4×18	358			240	13.94
	65	270	185	145	118		20-2	4×18	375			240	18.94
	80	280	200	160	132		20-2	8×18	433			280	23.68
	100	300	220	180	156		22-2	8×18	502			320	29.8
	125	325	250	210	184		22-2	8×18	612			360	44.5
	150	350	285	240	211		24-2	8×22	676			360	58.7
	200	400	340	295	266		24-2	12×22	820			400	91.1
	250	450	405	355	319		26-2	12×26	969			450	143
	300	500	460	410	370		28-2	12×26	1142			560	181
	350	550	520	470	429		30-2	12×26	1280			640	270.8
	400	600	580	525	480		32-2	16×30	1452			640	366
Type	Nominal diameter DN(mm)	Measurement(mm)											Reference weight(KG)
Type	Nominal diameter DN(mm)	L	D	D1	D2	D3	b-f	Z-d	H	H1	H2	D0	Reference weight(KG)
Z41W-25P	15	130	95	65	46		14-2	4×14	175			120	3.38
	20	150	105	75	56		16-2	4×14	180			140	4.18
	25	160	115	85	65		16-2	4×14	210			160	5.52
	32	180	140	100	76		18-2	4×18	280			180	7.72
	40	200	150	110	84		18-2	4×18	350			200	9.52
	50	250	165	125	99		20-2	4×18	358			240	13.94
	65	270	185	145	118		22-2	8×18	375			240	18.94
	80	280	200	160	132		24-2	8×18	433			280
	100	300	235	190	156		24-2	8×22	502			320
	125	325	270	220	184		26-2	8×26	612			360
	150	350	300	250	211		28-2	8×26	676			360
	200	400	360	310	274		30-2	12×26	820			400
	250	450	425	370	330		32-2	12×30	969			450	167.3
	300	500	485	430	389		34-2	16×30	1142			560	230
	350	550	555	490	448		38-2	16×33	1280			640	330
	400	600	620	550	503		40-2	16×36	1452			640	434.4
Type	Nominal diameter DN(mm)	Measurement(mm)											Reference weight(KG)
Type	Nominal diameter DN(mm)	L	D	D1	D2	D3	b-f	Z-d	H	H1	H2	D0	Reference weight(KG)
Z41W-40P	15	130	95	65	46	40	14-4	4×14	175			120
	20	150	105	75	56	51	16-4	4×14	180			140
	25	160	115	85	65	58	16-4	4×14	210			160
	32	180	140	100	76	66	18-4	4×18	280			180
	40	200	150	110	84	76	18-4	4×18	350			200
	50	250	165	125	99	88	20-4	4×18	372			250
	65	280	185	145	118	110	22-4	8×18	395			280
	80	310	200	160	132	121	24-4	8×18	457			300
	100	350	235	190	156	150	24-4.5	8×22	552			350
	125	400	270	220	184	176	26-4.5	8×26	634			400
	150	450	300	250	211	204	28-4.5	8×26	708			450
	200	550	375	320	284	260	34-4.5	12×30	858			500
	250	650	450	385	345	313	38-4.5	12×33	1015			560
	300	750	515	450	409	364	42-4.5	16×33	1203			640
	350	850	580	510	465	422	46-5	16×36	1341			640
	400	950	660	585	535	474	50-4	16×39	1492			720

Advantage of Hebei Shanghan

1,Professional in Standard series Valves

2,Free sample

3,Factory quality certificate ISO9001 & 14001

4, We are factory for the Russian standard flanged pn16 stem gate valve, casting, machining, painting, delivery process are completed.

5,OEM service is accepted, Customer's logo or label accepted

6,Delivery on time once we accept your order

7,CNC lathe in the workshop with 8 machining assembly line

8,Resin and coated sand casting technology owned by ourselves

9, We have the IF electric furnace support the casting parts for the russian standard stem gate valve.

10, Heat treatment equipment to ensure the valve quality, must will no any deformation on valve body.

11,Twice strict water pressure test and air pressure test before the valve been put in storage and before delivery

12, Middle and high class products to support the customers' different requirement. (light and pound grade)

13,Packing & transporation changed according to your request

14,Produce the products according to your drawings that will be most satisfy you

About Hebei Shanghan
(1) Deal with quality products highly efficient and ability to deliver in large batches.
(2) Certification as API, CE, Det Norske Veritas 9001/14001 etc
(3) 200+ production series covers thousands specifications on high, medium and low pressure types
(4) 2 Japan casting automatic production line with 5 china-made semi-automatic casting production lines, 40+ workshops, 1000+ sets of high precision & inspection equipment
(5) Network admission certificate of CNPC, Sinopec, China Power
(6) We are committed that wherever you are, the great service are in sight!
