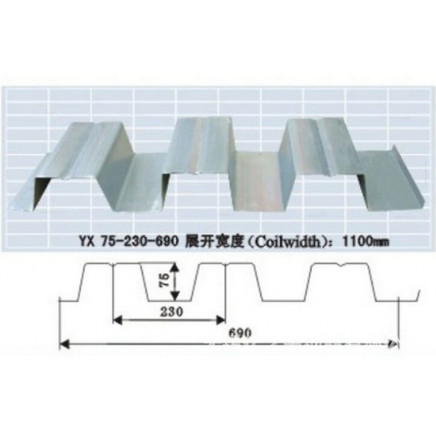

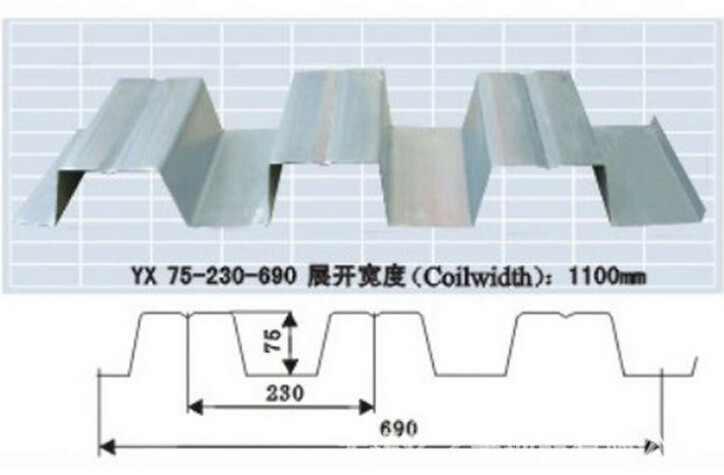

Yx75-230-690 Galvanised Al Zn Floor Decking Sheets

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:US $650.0 / Ton

Min. Order (Tons)	Unit Price
20.0	US $ 650/ Ton

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Sep 18, 2014 To Feb 28, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Description

Details

Basic Info.

Model NO.:YX75-230-690

Type:Steel Plate

Technique:Cold Rolled

Standard:GB, JIS

Surface Treatment:Galvanized

Application:Decking Sheet

Steel Thickness:0.7-1.5mm

Sheet Peak Spacing:305/280/250/125mm

Effective Width:915mm/600mm/750mm

Export Markets:Global

Additional Info.

Trademark:Shengxin

Packing:Seaworth as Customer?s Requirement

Standard:SGS BV

Origin:Xiamen, China

Production Capacity:10000ton/Per Month

Product Description

Galvanzied steel floor decking sheet, used in steel structure workshop, house, and other steel structure buliding, as the floor decking of the building.

Decking floor steel sheet:

Model: YX76-305-915; YX-51-250-750, YX-130-280-600, YX35-125-750
Thickness: 0.7mm-1.5mm
Length: Customized, but not longer than 11.8m

Specifications:
Galvanzied steel floor decking sheet

Sheet Thickness: 0.7-1.5mm

Sheet Peak Spacing: 305mm/280mm/250mm/125mm

Effect Width: 915mm /600mm/750mm,

Technique: Cold rolled.

Package; Export standard and fully seaworthy

Certificate: SGS,

Application: Power plant, power equipment company, car showroom, steel structure plant, cement warehouse, airport terminal, railway station, stadium, concert hall, theater, supermarket, logistics center, etc.

Merits:
1 light weight
2 high strength
3 high loading capacity
4 easy for installation/construction
5 much better than traditional ones
6 excellent appearance

Description:
Floor Decking Steel Sheet is roll formed by roll forming machine, mainly using galvanized steel, at thickness of 0.8/1.0/1.2mm. Simple shape with high rib and high strength. Put the plate above the welded wire net, fill cement between them. This panel is usually used as the floor of high buildings, it can save steel mound and can also save the weight, in the same loading capacity. Use this plate, and save the steel quantity, and thus save cost.
