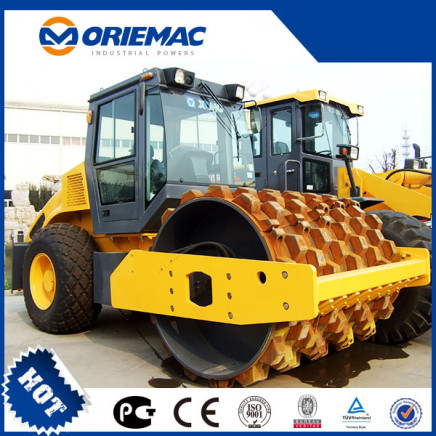

XCMG Brand Single Drum Road Roller Compactor Xs142j with Sheep Foot Price

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$38000.0 - $40000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 40000/ Piece
3.0	US $ 38000/ Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Mar 27, 2014 To Jun 27, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:XS142J

Type:Road Roller

Working Method:Wheeled

Axle:Single Drum

Static Linear Pressure:385n/Cm

Travel Speed:12km/H

Grade Ability:55%

Power(W):92

Weight:14 Tons

Export Markets:Global

Additional Info.

Trademark:XCMG

Packing:Nude Packing

Standard:ISO

Origin:Jiangsu, China

HS Code:84294019

Production Capacity:500/Month

Product Description

XCMG 14 ton single drum road roller XS142J

Good price XCMG xs142j road roller 14 ton
1. Drum width 2130mm
2. Engine Cummins 4B3.9 110kw

XCMG 14 ton single drum road roller XS142J

Feature:
XS142J vibratory compactor is a kind of heavy duty self-propelled vibratory compactor. It can effectively compact various soil layers and rock fill, and can be applied to the constructions of modern freeways, airports, embankment fill, ports, dams, railways, mines, etc.

Performance feature
The spacious and bright cab features wide view and comfort.

Simple operation
The humanity instrument panel has a reasonable layout, all the control buttons are clear at a glance.
Adopt the gearbox with synchronizer, which is easy to operate.
The special compactor drive axle has the function of preventing slipping, featuring strong traction.

Reliable and durable hydraulic system
The standard configuration includes imported open gear pump and motor. The optional configuration includes closed hydraulic vibration system, imported piston pump, motor (16t, 18t). All those have a long service life, supplying stable start-oscillation and oscillation stop and high compacting quality.

Energy-saving and environmental friendly power
Shanghai Diesel Engine 114 series water-cooled engine has low noise, meeting the emission standard of European I. The maintenance-free battery can be started easily and work smoothly in low temperature.

High efficient and reliable vibratory compacting system
Unique drum structure features good rigidity and intensity. The bearing adopts short cylindrical bearing, featuring high rotary speed limit and strong bearing capacity. The left vibration chamber and right vibration chamber are symmetrical, avoiding the polarization of the drum.
The vibratory bearing can be lubricated when the compactor travels, which is simple and convenient, ensuring a quite low lubricating system failure rate.
Adopt the numerical control blanking, numerical control plate rolling, numerical control bender, and numerical control horizontal machining center to ensure the precision of the whole machining.

Optional configuration
The integral convex block drum, split convex block drum, and the cab with air conditioning.
Convenient maintenance
The engine cover is easy to open, and the opening angle is large, which make the maintenance part accessible.
The high positioned air intake prolongs the maintenance interval of the air filter.

Model	Unit	XS142J
Operating weight	kg	14000
Weight on front drum	kg	7000
Static linear pressure	N/cm	322
Speed range	km/h
Speed I		2.7
Speed II		4.8
Speed III		10.5
Theoretical gradeability	%	30
Min. external turning radius	mm	6800
Steering angle	°	±30
Oscillating angle	°	±11
Vibration frequency	Hz	28
Nominal amplitude (high/low)	mm	1.9/0.95
Excitation force (high/low amplitude)	kN	274/137
Engine model		Shanghai Diesel Engine D4114
Type	Water cooled, pressurized	Water cooled, pressurized
Max. power	kW	92@2200r/min
Engine oil consumption	g/kW.h	230
Hydraulic oil tank capacity	L	170
Fuel tank capacity	L	180
