XCMG 26 Ton Tire Vibratory Road Roller XP262

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 30000/ Piece

Price:US $30000.0 / Piece

Trade Terms: FOB, CFR, CIF, FAS, CIP, CPT, FCA

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Mar 28, 2014 To Jun 27, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:XP262

Type:Road Roller

Working Method:Wheeled

Axle:Uniaxial Monowheel

Color:Yellow

Export Markets:Global

Additional Info.

Trademark:XCMG

Packing:Nude, Suitable for Shiping

Standard:ISO

Origin:Jiangsu, China

Production Capacity:100 Sets/Month

Product Description

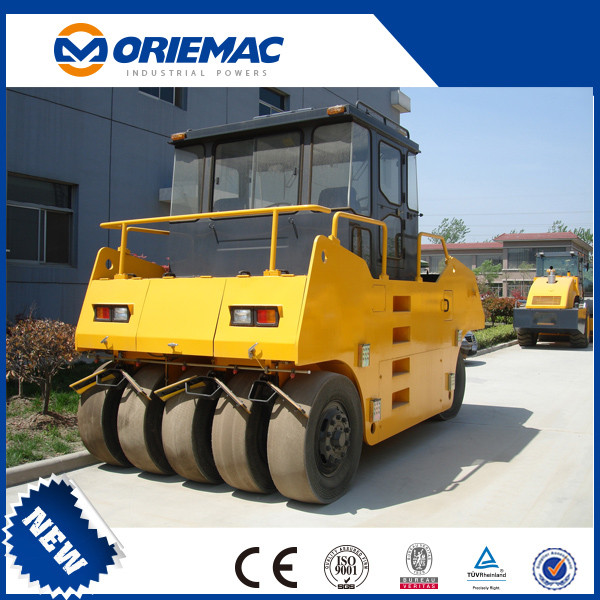

XCMG road roller tyre roller XP262
1. Working mass: 14500kg
2. Compacting width: 2750mm
3. Shangchai Diesel engine D6114ZG10B4.

Driving comfort
Spacious and bright cab features wide view and comfort. Both-side operation can absolutely avoid rolling the curb and the compacting blind corners.
Simple operation
There are two steering wheels, two seats, and two independent control systems for operations. The speed change adopts electric control handle and two-speed gear shift design, which can respectively meet the requirements of compaction and site transfer, together with flexible electronic control operation and comfortable handfeel, greatly reduces the labor intensity of the drivers.
Excellent performance
Adopting the pneumatic tyre to compact the layer will not damage the compacted materials. The compact performance can be improved by adding or reducing the counterweight and changing the inflation pressure of the tyres. Because of the kneading effect produced by the tyre's elasticity, the material displacement will be produced in all directions, forming even dense surface without cracks, which can prolong the service life of the road.
Adopt the front wheels swing mechanism. When the machine works on rough road, the mechanism ensures the even ground pressure, which can make the materials be compacted evenly.
The optional international leading infrared tyre heating system realizes the no water sprinkling work of the compactor, and improves the density and service life of the road.
Unique structure
The transmission system adopts the hydraulic transmission with infinitely variable speeds. The start of the torque converter and the speed change are stable and without impact, reducing the shear stress to the road, and improving the compacting quality. The torque converter adopts hydrodynamic drive, which makes the compactor have adaptivity, ensures the diesel engine and the transmission system work under the rated working condition, and prolongs the service life of the compactor.
Safety and reliability
The brake system includes emergency brake and hand brake. The emergency brake adopts air over oil shoe brake system, ensuring the safety, durability and reliability of the machine. The hand brake adopts diaphragm spring brake, it supplements the foot brake and is restricted by the foot brake, featuring safety and reliability.

Type	Unit	XP262
Min. Working mass	kg	12900
Max. Working mass	kg	26000
Axle load,wheels	kg	1600
Static linear load	kg	11500
Theoretical gradeability	%	20
Min.outer turning radins	mm	9000
Min.ground clearance	mm	290
Overlapping of front&rear tyre	mm	70
Wwinging width	mm	±50
Compacting width	mm	2365
Rolling pressure	kPa	250~460
Centrifugal force(High/Low)	mm	3840
Speed	km/h	0~8
	km/h	0~20
Numbers of tyre		13/80-20
Tires pattern		Smooth
Numbers of tyre		Ago 4 After 5
Engine
model			D6114ZG10B
Rated speed	r/min		2000
Rated power	kw		115
Engine oil consumption	g/kW•h		224
Water tank capacity	L		1600
Hydraulic oil tank capacity	L		100
Fuel tank capacity	L		180
