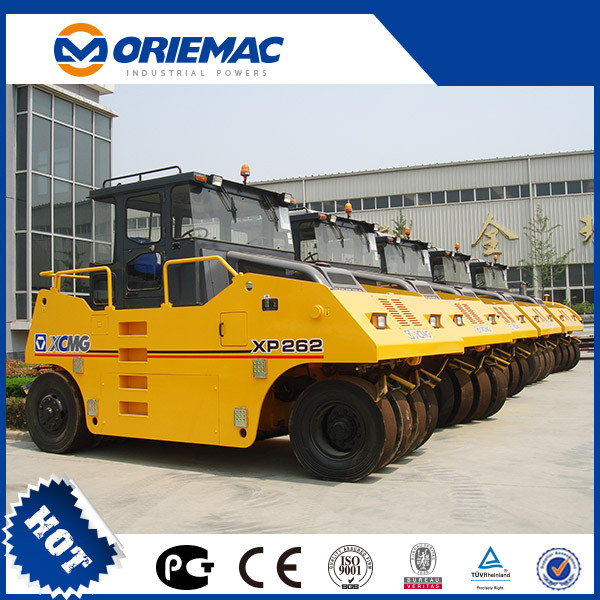

XCMG 26 Ton Pneumatic Roller Compactor XP262

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF, FAS, DAP, CIP, CPT

Payment Terms:T/T, Money Gram, Western Union

Trademark:XCMG

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:XP262

Type:Road Roller

Working Method:Vibration

Axle:Biaxial Dual-Drum

Operating Weight:26t

Engine Model:D6114zg10b

Engine Power:115kw

Compaction Width:2365mm

Export Markets:Global

Additional Info.

Trademark:XCMG

Packing:Nude Packing

Standard:CE, ISO9001

Origin:Jiangsu, China

HS Code:84294019

Production Capacity:500 Set/Sets / Month

Product Description

Driving comfort
Spacious and bright cab features wide view and comfort. Both-side operation can absolutely avoid rolling the curb and the compacting blind corners.
Simple operation
There are two steering wheels, two seats, and two independent control systems for operations. The speed change adopts electric control handle and two-speed gear shift design, which can respectively meet the requirements of compaction and site transfer, together with flexible electronic control operation and comfortable handfeel, greatly reduces the labor intensity of the drivers.
Excellent performance
Adopting the pneumatic tyre to compact the layer will not damage the compacted materials. The compact performance can be improved by adding or reducing the counterweight and changing the inflation pressure of the tyres. Because of the kneading effect produced by the tyre's elasticity, the material displacement will be produced in all directions, forming even dense surface without cracks, which can prolong the service life of the road.
Adopt the front wheels swing mechanism. When the machine works on rough road, the mechanism ensures the even ground pressure, which can make the materials be compacted evenly.
The optional international leading infrared tyre heating system realizes the no water sprinkling work of the compactor, and improves the density and service life of the road.
Unique structure
The transmission system adopts the hydraulic transmission with infinitely variable speeds. The start of the torque converter and the speed change are stable and without impact, reducing the shear stress to the road, and improving the compacting quality. The torque converter adopts hydrodynamic drive, which makes the compactor have adaptivity, ensures the diesel engine and the transmission system work under the rated working condition, and prolongs the service life of the compactor.
Safety and reliability
The brake system includes emergency brake and hand brake. The emergency brake adopts air over oil shoe brake system, ensuring the safety, durability and reliability of the machine. The hand brake adopts diaphragm spring brake, it supplements the foot brake and is restricted by the foot brake, featuring safety and reliability.

Model	Unit	XP262
Min. working weight	kg	13900
Max. working weight	kg	26000
Axle load,wheels	kg	1100
Static linear load	kg	11000
Theoretical gradeability	%	20
Min. turning external radius	mm	9000
Min. ground clearance	mm	290
Tyre overlap amount	mm	70
Front wheel swing range	mm	±50
Compaction width	mm	2365
Ground pressure	kPa	250~460
Wheel base	mm	3840
Travel speed	km/h	0~8
	km/h	0~20
Tyre specification		13/80-20
Tyre tread		Smooth
Tyre amount		Front 4 rear 5
Engine model		D6114ZG10B
Rated speed	r/min	2000
Rated power	kw	115
Engine oil consumption	g/kW•h	224
Water tank capacity	L	1100
Hydraulic oil tank capacity	L	100
Fuel tank capacity	L	180
