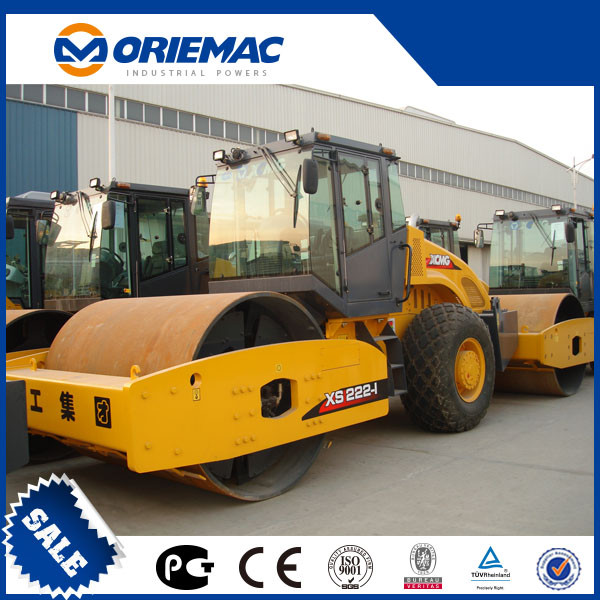

XCMG 22ton Large Hydraulic Road Roller (Xs222)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 60000/ Piece

Price:US $60000.0 / Piece

Trade Terms: FOB, CFR, CIF, FCA, EXW

Payment Terms: L/C, T/T, Paypal, Money Gram, Western Union

Price Valid Time:From Jan 15, 2014 To Mar 18, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:XS222

Type:Road Roller

Working Method:Vibration

Export Markets:Global

Additional Info.

Trademark:XCMG

Packing:Nude Package

Standard:ISO, CE, GOST

Origin:China(Mainland), Jiangsu

Production Capacity:9000units/ Year

Product Description

XCMG 22ton large Hydraulic Road Roller(Xs222)

Specifications
22 ton XCMG XS222 Fully Hydraulic Road Roller Compactor
1. Cummins engine, 132 KW
2. Static linear load: 704 N/cm

22 ton XCMG XS222 Fully Hydraulic Road Roller Compactor

Comfortable driving
ROPS driving cab is equipped with an air conditioner, radio and suspended chair. It has a bigger space and broad view inside.
Unique structure
Unique cylindrical drum structure features high rigidity and intensity. Short cylindrical bearing with high limited rotation speed provides high load - carrying capacity. The symmetrical arrangement of the right and left vibration chambers avoids the polarization of the vibratory drums.
Easy operation
According to the ergonomics theory, all meters, indicators and buttons are centered on the operation panel. The throttle handle and FWD/REV handle are put on the right side to improve the sense of comfort.
The failure diagnosis screen with alarms can avoid any unnecessary downtime.
The simple and easy lubrication mode ensures an extremely low failure rate of the lubricating system.
XCMG is the first manufacturer to adopt the central engine for effortless maintenance.
Leading compacting performance
The unique hydraulic driving system design and heavy vibratory wheel weight make the XCMG's roller highly advanced in compaction ability.
Heavy loaded drive axle and nonskid differential mechanism can furthest transfer the output power as well as the tractive force of engines.
Outstanding configuration
The key components are provided by international suppliers (hydraulic pump, motor, drive axle, vibratory bearing and rotating alarm lamp), it also has several engine models for selection to meet different working conditions and customer's needs.
Multiple functions
The split convex block drum (below 16t) and integral convex block drum (18-20t) can be selected according to the customer's requirement.
Easy maintenance
The aural and visual alarm device can timely provide the maintenance message to avoid the machine faults and to shorten the down time.
The self-opening engine shield makes the engine and hydraulic pump easy to access to.

Type	Unit	XS222
Operating weight	kg	22000
Load on front drum	kg	15000
Load on rear wheels	kg	7000
Drum width	mm	2130
Static linear load	N/cm	704
Vibration frequency(Low/High)	Hz	28/33
Nominal amplitude(High/Low)	mm	1.86/0.93
Excitation force(High/Low)	KN	390/270
Travel speed	km/h	0~10
Steering angle	°	±33
Swing angle	°	±10
Theoretical gradeability	%	50
Min. external turning radius	mm	6500
Engine model		Cummins B5.9
Engine power	kw	132
Rated engine speed	r/min	2200
Engine oil consumption	g/kW.h	232
Hydraulic oil tank capacity	L	240
Fuel tank capacity	L	240
