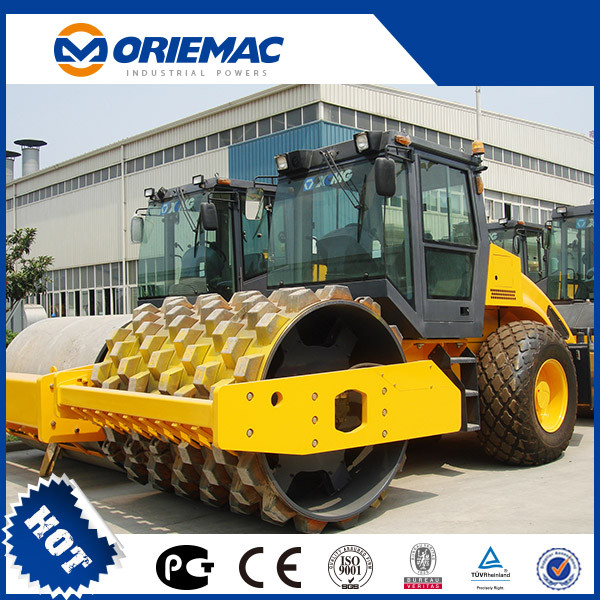

XCMG 22 Ton Hydraulic Single Drum Vibratory Compactor Xs222e

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 1000000/ Piece

Price:US $1000000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Oct 30, 2014 To Jan 30, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:XS222E

Type:Road Roller

Working Method:Vibration

Axle:Triaxial Three-Wheel

Color:Yellow

Export Markets:Global

Additional Info.

Trademark:XCMG

Packing:Nude, Suitable for Shiping

Standard:ISO

Origin:Jiangsu, China

Production Capacity:100 Sets/Month

Product Description

XCMG Vibratory Compactor XS222E Road Roller
1. Reliable performance and high performance
2. Advanced technology
3. SC8D190.1G2

Comfortable driving
ROPS driving cab is equipped with an air conditioner, radio and suspended chair. It has a bigger space and broad view inside.
Unique structure
Unique cylindrical drum structure features high rigidity and intensity. Short cylindrical bearing with high limited rotation speed provides high load - carrying capacity. The symmetrical arrangement of the right and left vibration chambers avoids the polarization of the vibratory drums.
Easy operation
According to the ergonomics theory, all meters, indicators and buttons are centered on the operation panel. The throttle handle and FWD/REV handle are put on the right side to improve the sense of comfort.
The failure diagnosis screen with alarms can avoid any unnecessary downtime.
The simple and easy lubrication mode ensures an extremely low failure rate of the lubricating system.
XCMG is the first manufacturer to adopt the central engine for effortless maintenance.
Leading compacting performance
The unique hydraulic driving system design and heavy vibratory wheel weight make the XCMG's roller highly advanced in compaction ability.
Heavy loaded drive axle and nonskid differential mechanism can furthest transfer the output power as well as the tractive force of engines.
Outstanding configuration
The key components are provided by international suppliers (hydraulic pump, motor, drive axle, vibratory bearing and rotating alarm lamp), it also has several engine models for selection to meet different working conditions and customer's needs.
Multiple functions
The split convex block drum (below 16t) and integral convex block drum (18-20t) can be selected according to the customer's requirement.
Easy maintenance
The aural and visual alarm device can timely provide the maintenance message to avoid the machine faults and to shorten the down time.
The self-opening engine shield makes the engine and hydraulic pump easy to access to.

Item	Unit	XS222E
Operation weight	kg	22000
Front axle load	kg	15000
Static linear load	kg/mm	704
Vibration frequency	Hz	28/33
Nominal amplitude	mm	1.86/0.93
Excitation force	kN	390/270
Speed I	km/h	0~4
II	km/h	0~5
III	km/h	0~6.4
iv	km/h	0~10
Theoretical gradeability	%	50
Min. turning radius (internal)	mm	4370
Engine model		SC8D190.1G2
Rated power	kW	140
Rated speed	rpm	2200
Dimension (Length ×Width× Height)	mm	6222×2390×3077
