XCMG 16 Ton Single Drum Road Roller Xs162j

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 10000/ Piece

Price:US $10000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Jan 13, 2014 To Apr 13, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:XS162J

Type:Road Roller

Static Linear Pressure:362mpa

Travel Speed:10.51km/H

Grade Ability:20%

Power(W):115

Weight:16 Tons

Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:XCMG

Packing:Nude Packing

Standard:ISO, CE

Origin:Jiangsu, China

Production Capacity:500/Month

Product Description

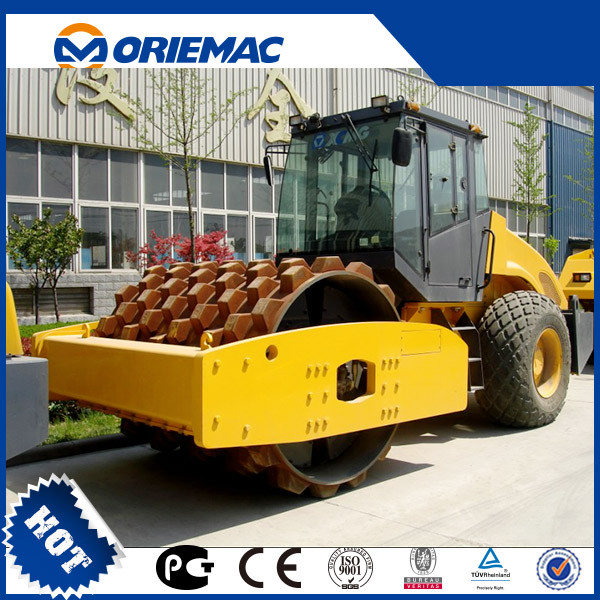

XCMG 16 ton single drum road roller XS162J
XCMG 16 ton mechanical single drum vibratory compactor XS162J
1. Operating weight: 16ton
2. Rated Power: 115kw

XCMG 16 ton single drum road roller XS162J

XCMG xs162j road roller is a kind of heavy duty self-propelled vibratory compactor. It can effectively compact various soil layers and rock fill, and can be applied to the constructions of modern freeways, airports, embankment fill, ports, dams, railways, mines, etc

Performance feature
The spacious and bright cab features wide view and comfort.
Simple operation
The humanity instrument panel has a reasonable layout, all the control buttons are clear at a glance.
Adopt the gearbox with synchronizer, which is easy to operate.
XCMG xs162j road roller drive axle has the function of preventing slipping, featuring strong traction

Model	Unit	XS162J
Operating weight	kg	16000
Weight on front drum	kg	7700
Static linear pressure	N/cm	362
Speed range	km/h
Speed I		2.54
Speed II		4.97
Speed III		10.51
Theoretical gradeability	%	30
Min. external turning radius	mm	6500
Steering angle	°	±33
Oscillating angle	°	±11
Vibration frequency	Hz	28
Nominal amplitude (high/low)	mm	1.9/0.95
Excitation force (high/low amplitude)	kN	290/145
Engine model		SC8D156.2G2B1
Type	Water cooled, pressurized	Water cooled, pressurized
Max. power	kW	115@1800r/min
