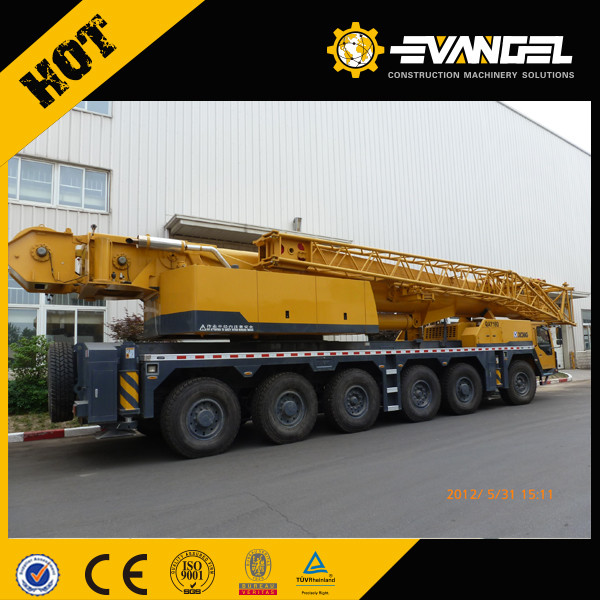

XCMG 16 Ton Hydraulic Truck Crane (QY16D)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB

Payment Terms:L/C, T/T, D/P, Western Union

Trademark:XCMG

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QY16D

Best Delivery:Within 15 Days

Rated Lifting Capacity:16ton

Rated Working Radius:3m

Max. Slewing Speed:2.5r/Min

Total Vehicle Mass:24000kg

Engine Rated Power:170/2200kw/(R/Min)

Export Markets:North America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Additional Info.

Trademark:XCMG

Packing:Seaworthy Packing

Standard:ISO, CE

Origin:Jiangsu, China

HS Code:87051091

Production Capacity:2000sets/Month

Product Description

QY16D Hydraulic Truck Crane Detail Description:

1)Adopts self-made truck crane chassis with Shanghai D6114 engine or Hangzhou WD415.21 engine.
2) 4-section telescopic boom of all-round hexagonal cross-section has powerful lifting capacity. The main boom gives a maximum lifting height of 30.7m and plus jib offers a maximum lifting height of 38.5m.
3)A gravity lowering device equipped in winch system facilitates working efficiency; Constant-closed external meshing brake makes operation safe and reliable.

4) Side-mounted jib, double cylinders for front support elevating, fully hydraulic drive and double H-shaped outriggers.
5) Large box type frame of torsion resistance, and wide outrigger extension greatly improve load lifting capacity.
6) Guide roller meticulously designed avoids rope-disorder.
Swing system with cycloid cylindrical lantern gear reducer can absorb shock effectively, run smoothly.

7) Driver's cab is equipped with damping adjustable seat and adjustable steering wheel. Air conditioner is available.
8) Newly designed operator's cab is spacious, comfortable and wide vision.
9) Air circuit with a dryer improves its reliability greatly.
Well-equipped safety devices, such as automatic moment limiter, hoist height limiter and working radius indicator. Illuminators facility operation at night.
10) The vehicle, equipped with devices for use in plateau, suits many kinds of working environment.

Classificatory	Item		Unit	Parameter
Engine	Model			D6114ZLQ5B
Outline dimension	Overall length		mm	11990
	Overall width		mm	?2500
	Overall height		mm	3350
	Wheel base	Axle 1, Axle 2	mm	4025
	Wheel base	Axle 2, Axle 3	mm	1350
Mass	Total mass in travel state		kg	24000
	Axle load	Axle 1	kg	6400
	Axle load	Axle 2	kg	17600
Travel performance	Travel speed	Max. travel speed	km/h	?70
	Travel speed	Min. stable travel speed	km/h	3~4
	Turning diameter	Min. turning diameter	m	?20
	Turning diameter	Min. turning diameter at boom tip	m	?23
	Min. ground clearance		mm	270
	Approach angle		(°)	21
	Departure angle		(°)	10
	Braking distance (at 30km/h with full load)		m	9.5
	Max. grade-ability		%	24
	Fuel consumption for 100km		L	35

Main Technical Data for Lifting Operation

Classificatory	Item				Unit	Parameter
Lifting performance	Max. total rated lifting capacity				t	16
	Min. rated working radius				m	3
	Turning radius at turntable tail				m	?3.12
	Max. load moment	Base boom			kN.m	686
		Fully extended boom			kN.m	388
		Fully extended boom + Jib			kN.m	254
	Outrigger span	Longitudinal			m	4.6
		Lateral			m	5.4
	Lifting height	Base boom			m	?9.9
		Fully extended boom			m	?30.7
		Fully extended boom + Jib			m	?38.5
Working speed	Boom raising time				s	?60
	Boom full extension time				s	?95
	Max. swing speed				r/min	?2.5
	Hoist speed (single line)		Main winch	Full load	m/min	?54
				No load	m/min	?100
			Aux. winch	Full load	m/min	?54
				No load	m/min	?100
Noise limit	Crane exterior noise				dB (A)	?118
	At seated position				dB (A)	?90
