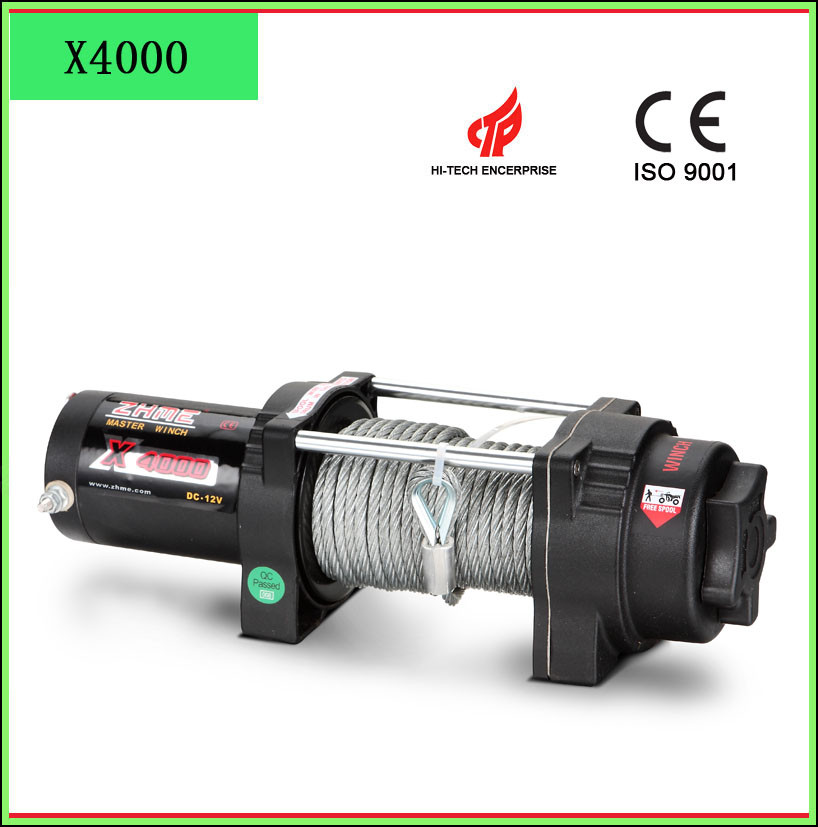

X4000 Winch with Wire Rope

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
50.0	US $ 68/ Piece

Price:US $68.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T, Paypal

Price Valid Time:From Apr 07, 2015 To Jul 07, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:X4000

Type:Electric Winch

Power Type:Permanent-magnet DC

Pull Direction:Forward

Electric Winch Model:ATV

Working Voltage of Electric Winch:Low Voltage

Brand:Zhme

Applicable Environment:ATV

Certification:GS, CE

Item:X4000

Rated Line Pull:4000lbs(1818kgs) Single Line

Motor:Permanent Magnetic Motor 1.6HP/1.2kw, 12V DC

Gear Train:3 Stage Planetary Gear 198:1

Dimensions:348mm X 114mm X 120mm

N.W.:7.6kg

Export Markets:Global

Additional Info.

Trademark:ZHME

Packing:Color Box

Origin:Zhejiang, Ningbo

HS Code:84253190

Production Capacity:China

Product Description

Motor: High performance permanent magnetic motor, provides fast line speed.
Contactor: 200 Amp Rated contactor, 12V DC.
Gear Box: Reducednoise, waterproof, and dependable. 3 stage planetary gear of 20CrMnTi, hardened gears for long life, a solid power multiplier.
Brake: Fully independent and automatic braking ensures safety and reliability.
Waterproof: Seals for motor and gear box, o-ring for gear box, Cold drawn steel tube, high strength could protect wire rope well and no damage when braking.

Specifications
Item	X4000
Rated Line Pull	4000lbs(1818kgs) single line
Motor	Permanent magnetic motor 1.6hp/1.2kw, 12V DC
Gear Train	3 stage planetary gear
Gear Ratio	198:1
Braking Action	Automatic in the drum
Fairlead	Aluminum Hawse Fairlead
Rope	Wire Rope 6mm x 10m
Drum size	50mm x 76.5mm
Dimensions	348mm x 114mm x 120mm
Mounting Bolt Pattern	124mm×76mm
N.W.	7.6kg
