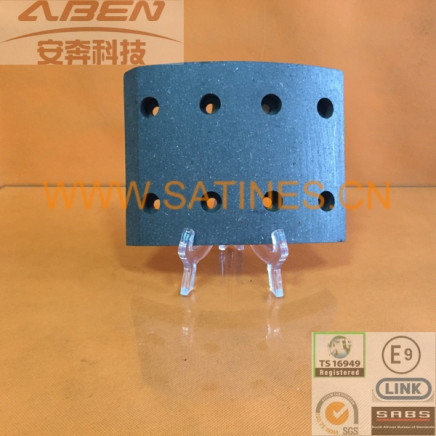

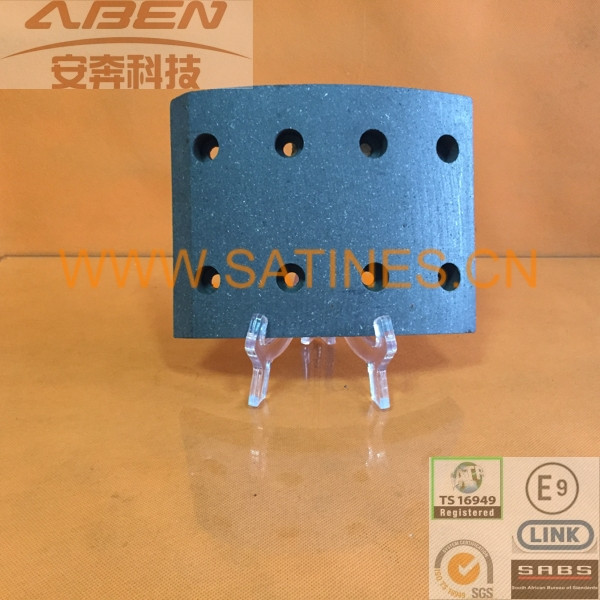

Wva 17372 Anben Truck Part Brake Lining

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
50.0	US $ 5.0-11.0/ Piece

Price:$5.0 - $11.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T, D/P

Price Valid Time:From Jun 24, 2015 To Dec 31, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:WVA17372

Type:Brake Lining

Material:Asbestos Free

Position:Front

Certification:TS16949, SGS, ECE

Long Life Time:Excellent Braking Performance

Bfmc:Fi/148/1

Wva:17372

Size:L1:224 L2: 215W:100t:8.7

Rivets:8

Rivets Size:8*15

Vehicle:Iveco

Export Markets:Global

Additional Info.

Trademark:OEM avaliable

Packing:Export Standard Packing

Standard:GG/FF Grade

Origin:China

HS Code:8708301000

Production Capacity:200000sets/Month

Product Description

Fruehauf brake lining 17794 BMFC FI/109/1
Specifications

Brake lining 7794 size: 380*365*100*8mm
with low noise,no dust, excellent performance,good quality and competitive price

Material: Astestos,   100% asbestos free,   semi-metel,   ceramic.

Application:

Heavy Duty Truck. Trailer. Bus,for truck of various brand.
Quality Assurance:
Certificate and standard.
1. According to GB5763-2008
2.ISO/TS16949:2009
3.SABS
4. Chase test, SGS. LINK, E9

FRUEHAUF brake lining
1.high quality&good FRUEHAUF brake lining
2.material: asbestos&non asbestos
3.400 kinds for truck,trailer,bus,etc

Main market: China inland, South America,South Afica, West Africa, The Middle East.Europ and America.

Export standard Packing:
4PCS IN A SHRINK PP BAG PACKAGE, 2sets putinto export standard box, and pallet ,according to customers' requirement

Inspection Item	Standard	Test Result
Normal Temperature Friction Coefficient (150ºC)	0.42±0.06	0.4
Hot Friction Coefficient(250ºC-300ºC)	0.42±0.09	0.39
Wear Rate(×10-7m3/Nm150ºC)	0-0.77	0.16
Impact Force(J/cm2)	?0.30	0.5

Other models for Japanese cars

SUZU (truck)

Model	Year	Axle	Part No	PC	Dimension	Drum Diam	Rivets Sz	Rivets PC
BPR 460	79~80	F	47115-079	4	140x11.7x370	400	12x6x16	18
BPR 460	79~80	R	47115-420	8	178x14.5x195	410	7x19	13
BQR 460	81~83	F	47115-079	4	140x11.7x370	400	12x6x16	18
		R	47115-420	8	178x14.5x195	410	7x19 F5	13
		HB	46235-022	2	60x5.5x275			16
CQM 451M,521,541D,571,	81~83	F	47115-079	4	140x11.7x370	400	12x6x16	18
601,651, 681,701		R1	47115-450	8	178x14.5x195	410	7x19	13
		R2	47115-079	4	140x11.7x370	400	12x6x16	18
CVR 14,17,70	83~	F	47115-406	8	139.5x15.8x191	410	12x6x18	10
		R	47115-409	8	178x15.8x191	410	12x6x18	15
		HB	46235-022	2	60x5.5x275		F5	16

MAZDA

Model	Year	Axle	Part No	PC	Dimension	Drum Diam	Rivets Sz	Rivets PC
T3000, T4000	84~	F	WO-23-31-312	4	75x8.0x285	320	J8	12
T3000, T4000	84~	R	WO-23-31-312	4	75x8.0x285	320	J8	12
T3500	87~	F	WD-37-33-312	4	90x8.5x290	320	B5x11	12
T3500	87~	R	WD-37-33-312	4	90x8.5x290	320	B5x11	12
T4100	87~	F	WD-37-49-312	4	90x11.0x303	320	12x6x12	12
T4100	87~	R	WD-37-49-312	4	90x11.0x303	320	12x6x12	12

NISSAN (truck)

Model	Year	Axle	Part No	PC	Dimension	Drum Diam	Rivets Sz	Rivets PC
5TC 81	67~68	F	41039-90113	8	129.5x15.0x184	400	12x6x20	6
5TC 81	67~68	R	44066-90118	8	177.5x18x195	410	B & N	9
5TVC 10,11	69~71	F1	41039-90113	8	129.5x15.0x184	400	12x6x20	6
		F2	41039-90113	8	129.5x15.0x184	400	12x6x20	6
		R	44066-90118	8	177.5x18x195	410	B & N	9
		HB	36119-90005	2	75x6.0x340		J8	12
5TWDC 10,11	67~70	F	41039-90113	8	129.5x15.0x184	400	12x6x20	6
		R1	44066-90118	8	177.5x18x195	410	B & N	9
		R2	41039-90113	8	129.5x15.0x184	400	12x6x20	6
		HB	36119-90005	2	75x6.0x340		J8	12
