Wl-D-880 Hydraulic Wheelchair Lift Platform Can Be Folded with CE Certificat

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CIF, EXW

Payment Terms:T/T, Paypal, Western Union

Trademark:Xinder

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:WL-D-880

Application:for Disable

Lift Mechanism:Dual Arm

Carrying Capacity:Weight Level

Moves:Stationary

Driven Type:Hydraulic

Running Mode:Stationary

Feature:Products for The Disabled

Certification:CE

Load Capacity:350kg

Platform Dimention:1150*720 Mm / 1250*820 Mm

Own Weight:135kg

Electric Systerm:12V / 24V

Max Floor Height:880mm

Certificate:CE

Export Markets:Global

Additional Info.

Trademark:Xinder

Packing:Wooden Case

Standard:CE

Origin:Jiangsu Changzhou

HS Code:84289090

Production Capacity:500sets/Month

Product Description

A. INTRODUCTION

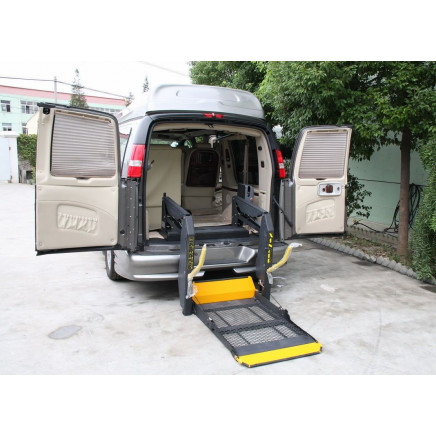

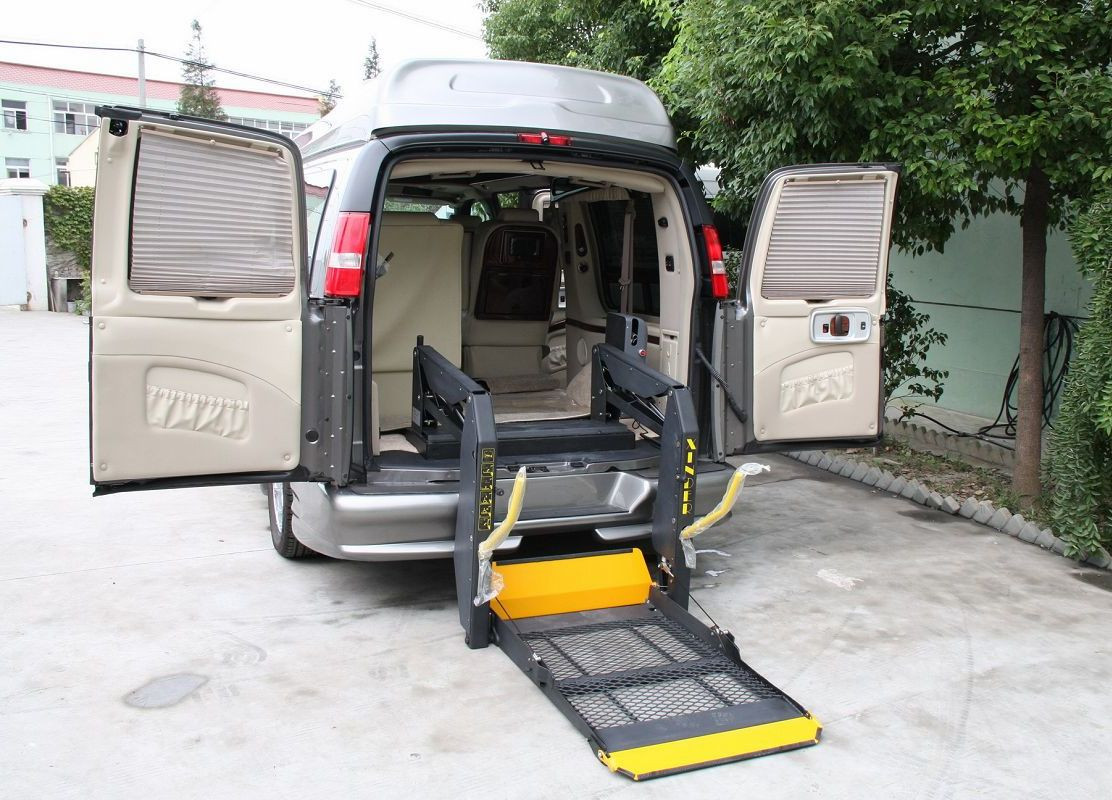

WL-D series Dual-Arm wheelchair lift provides an easy access for the people in wheelchair to get in/out of vehicles. The platform can move smoothly, reliably and safely, whose loading capacity can be up to 350kg. There is electrical &hydraulic control system in WL-D series wheelchair lift, which can operate lift to extend, stow, lift and lower down. Lift performance is controlled by standard controller which can be wire control or remote control. Moreover, there is manual equipment for manual operation.

Maintenance free bearing is used at hinged joint, so that this lift is easy to maintenance. This van wheelchair lift will take up little vehicle space because of the exquisite and compact design and completely steel structure.

WL-D Series wheelchair lifts are fully hydraulic in operation, for both the fold/unfold and up/down cycles. Lift operation is controlled by the standard hand-held control, the on-lift controls, or the optional remote control.

This WL-D-880 wheelchair van conversion offers you dependable accessibility while its trim, compact design maximizes valuable interior space. The lift also features a strong durable steel frame built to give you years of dependable service.
B. ADVANTAGES

Automatic Inboard and Outboard Rollstops
Powerful hydraulic pump ensure smooth, stable operation for heavy wheelchairs and scooters
All-steel frame features convenient handrails for increased comfort and security
Stable, non-skid platform with automatic inboard and outboard rollstops accommodates most wheelchairs and scooters
Pre-lubricated bearings at all major pivot points offer long-term durability
High gloss, polyester powder coat finish resists corrosion
Built in manual backup system
Compact design, quiet and smooth operation
Easy to maintain
C. TECHNICAL SPECIFICATION

Loading capacity	Own weight	Electric system	Max working pressure	Platform dimension	Max floor height
350 kg	134 kg	12-24 Volt	14 Mpa	1150720mm/1250820mm	880 mm

Model	Operation	Working Method of front and rear rollstop	Position of Hydraulic pump	Application
WL-D-880	Electric and manual	Automatic	Inside vehicle	Van, minibus

D. DIMENSIONS

Model	Overall Length(A)	Overall Width(B)	Overall Height(C)	Platform Net Length(D)	Platform Net Width(E)	Required Door Width(F)
WL-D-880-1150	440	1135	1225	1150	720	1000
WL-D-880-1250	440	1235	1325	1250	820	1100
