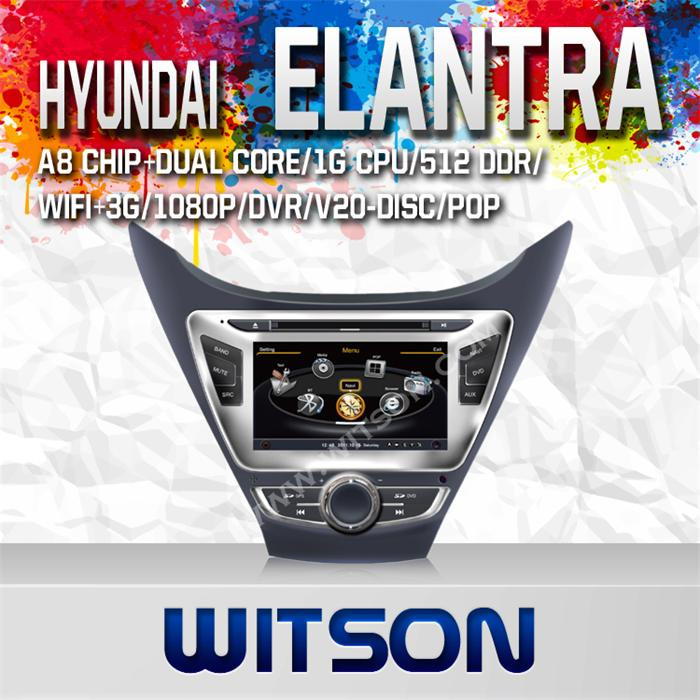

Witson Car Audio with GPS for Hyundai Elantra (2011-2012) (W2-C092)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 300.00/ Piece

Price:US $300.0 / Piece

Trade Terms: FOB, EXW

Payment Terms: T/T, Western Union, Paypal, PAYPAL

Price Valid Time:From Apr 02, 2014 To Jul 02, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:W2-C092

Type:Car Radio

Placement:Dashboard

Certification:CE

Export Markets:Global

Additional Info.

Trademark:WITSON

Packing:Standard Export Carton

Standard:ce

Origin:China

HS Code:85287180

Production Capacity:80000PCS/Month

Product Description

For HYUNDAI ELANTRA (2011-2012)

Special Features:

1GMHZ CUP Main Frequency/512M DDR II ROM
V-20 disc CDC Memory (Copy 20 Disc Music Inside Memory)
Built in 4G FLASH
3G/WiFi Internet Ready
Front DVR Camera (High Solution & Speed) (Optional)
1080P HD Video Display
Split-screen Image Function
File Management
Video and Audio Copy
Bluetooth Phone Book/Searching
FM/AM Tuner /RDS
Auto Rear Viewing Function
iPod Ready Optional
Built-in HD GPS/Dual Zone System
Unique 3D Flash Graphical User Interface
DVB-T Box (Touch Screen Operation, No Need Remote Control) (Optional)
Steering Wheel Control Support

The following maps of countries are available now:
EU MAP: Austria, Switzerland, Liechtenstein, Italy, Belgium, Netherlands, Luxemburg, France, Monaco, Spain, Germany, Greece, Vatican, San Marino, Denmark, Finland, Norway, Sweden, Portugal, Gibraltar, Channel Island, England, Ireland, Lisle of Man, Northern Ireland, Scotland
GULF AREA: Saudi Arabia, Oman, Bahrain, United Arad Emirate, Qatar, Kuwait
OTHER MAP: America, Canada, Australia, Turkey, Russia, Brazil, Argentina, South Africa, Chile are available
Menu Language& Navigation Voice: Arabic, English, Dutch, French, German, Italian, Portuguese, Spanish, Russia

S100 platform design request
hardware & system explanation
Type	Name	Description
CPU main CPU	Samsung S5PV210	CPU high quality Samsung CPU
frequency	1GMHZ	CPU main frequency
ROM	DDR II 512MB	standard ROM
hard disc	INAND FLASH 4GB (16G) INAND FLASH 4GB can be increased to 16G	Can make built in map while the hard disc is 4G
resolution	800*480	high resolution digital panel
color	65000 color	colorful display
OS	WINCE 6.0	Support muti-language,support oversee map
GPS receiver	frequency :1575.42MHZ C/A CODE
	protocol standard:NMEA-0183 V3.01
	channel-66 channel for serching sateellite,22 channel for tracking
	tracking sense:-164dBm
	locate:3m 2D RMS
BT module	working frequency:2.402GHZ-2.480GHZ ISM Band
	MIC sense: -42dB
touch panel	4 wire resistance(ready adaptor for capacity panel on PCB)

S100 - platform design request - function Description
Main function	Basic function Description
system update	no need special tools,update all software such as UI/MCU by sd card only
Video fuction set up	Lightness/ contrast/ color adjustment,support style set up
Doual zone	DVD TV AUX Vedeo output,1 chanel CVBS video output,DVD TV AUX optional
	Daul zone audio harness output,stereo harness output,TV AUX IPOD RADIO DVD for optional;can also select Bass for main channel output
	Add dual zone control adaptor
Bass output	Separated output
ipod function	Belongs to main-board,auto display when connects to IPOD device
	Video playing(not support currently,but there is port ready for future)
	Support audio playing,name display,album, singer's information
DVD function	Car Spec DVD loader,Build in virtual disc(20 disc)changer
	support DVD\DVD-R\DVDąRW\HDCD\CD-R\CDąRW\MP3\MP4 \Picture CD\VCD\WMA
AUX function	2 channel,support front &rear AUX input (alternative)
TV function	support analog TV,support all TV system, Analog TV & digital TV-alternative.
	DVB-T ISDB CMMB Support digital TV,DVB-T ISDB CMMB,support 2tuners
Radio	Build in car spec AM/FM tuner,support RDS,support local& long-distance
	99 station for AM,99 station preset for FM
	support to scan different frequency station by area step
Bluetooth	support built in MIC,external MIC,standard adaptor,no MIC wire
	support BT 2.0 ,A2DP,support phone book,calling record,BT music
	support phone book,calling recall,phone book transferred
	phone book language is the same as the cell phone
POP	3-Zone POP
GPS	Build in high quality GPS module,gain satellite signal faster and stable
	support GPS signal query TMC
	GPS audio can be work together with front &rear speakers
Rear camera	1 channel video input,Enter camera menu once in reverse
	support device on when the car in reverse
External digital TV box	DVB-T,CMMB,ISDB,support external digital TV box-DVB-T,CMMB,ISDB,support double digital tuner.Build in/external is alternative
External USB (2 channel,1A output electric current)	USB1:USB2.0 USB1:USB 2.0,for media playing,photos reading
	support WMW,AVI,MPEG,MP3,MP4,RMVB(1080P),JPEG format,support name album,singer's name
	USB2-for 3G internet or WIFI Input
SD card	SD1- for navigation,support SD2.0 protocol standard SDHC,support 32 GB. Support map data
	support SD2-for media palying and photo reading.
	support WMV,AVI,MPEG,MP3,MP4,JPEG,support name,album,singer's name
Game	built in games
tooling	build in normal tools,calculator ,calendar.
GOD	support
Video recording	can record DVD,AUX,TV
File magement	build in flash and external SD,USB for data transferred
