Description

Details

Basic Info.

Model NO.:DF-5260112

Export Markets:Global

Additional Info.

Trademark:VEISE

Standard:CE, FCC,RoHS, ISO9001:2000

Origin:China

Production Capacity:5000pcs/month

Product Description

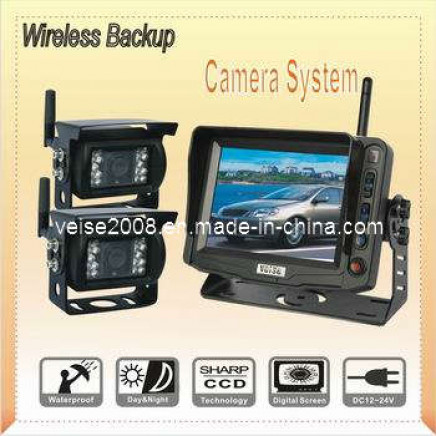

*5"TFT LCD Reversing Monitor Built-in 4 CH 2.4GHz wireless receiver and Day/Night Sensor for Illumination of the Control Knobs, On-Screen Menu for All Settings: Normal/Mirror view, Reversing Image Delay, Priority of Reverse Camera, Automatic switch ON (by reverse gear and or by direction lights)

*Backup Camera with 2.4GHz Wireless Transmission Box Built-in Magnet, Easy installation

PRODUCT SPECIFICATION

2.4GHz Wireless Transmission Backup Camera(MODEL:DF-4103FS*2)

Image Type: 1/3 Color SHARP CCD

Horizontal Resolution:420TV Lines

Effective pixel:NTSC:510(H)X492(V);PAL:500(H)X582(V)

Usable lllumination:0Lux(Built ln 18 IR LED ON)

Free viewing angle: 130 °

Transmission Power: 10mW (Estimate of 100 meter wireless send distance without block)

Shockproof: 10G

Waterproof: IP68

Operation Temperature : -10°C~+50°C RH95%Max

Storage Temperature : -20°C~+60°C RH95%Max

Free Operating Voltage: DC11-32 Volts

Dimensions: 75(W)X45(D)X75(H)mm

Weight : 200g

5" Digital Wireless Receiving TFT LCD Monitor (Model:SP-526)

Display Resolution: 960(H) X 234(V) dot

Wide view angle(CR>10):(up/ down): 45/65 (left/right): 65/65

Brightness (cd/m2): 300

Contrast ratio: 300:1

Color system: PAL/NTSC

Built-in 4 CH(2.414/2.432/2.450/2.468)GHz wireless receiver

Estimate of 100 meter wireless receive distance without block

Receiving power: -80 dB

Operating temperature: -20ºC to +70ºC

Storage temperature: -30ºC to +80ºC

Power consumption:DC11~32V

External dimensions:L*W*T(110X77X23)mm

Weight Approx: 179g

Product Accessories

Auto Cigarette Lighter, Remote Control, User's Guide
