Wireless Camera Observation Video System for Farm Tractor, Combine, Cultivator, Plough, Trailer, Truck

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Wireless Camera Observation Video System for Farm Tractor, Combine, Cultivator, Plough, Trailer, Truck

More Views

Wireless Camera Observation Video System for Farm Tractor, Combine, Cultivator, Plough, Trailer, Truck

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CIF, EXW

Payment Terms:L/C, T/T, Western Union

Model NO.:DF-5362361

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:DF-5362361

Technology:Infrared

Style:Bullet Camera

Type:CCTV Camera

Sensor:CCD

Horizontal Resolution:420tvl

Kind:Autofocus Lens

Certification:CE, FCC, RoHS, ISO9001: 2000

Feature:Waterproof / Weatherproof, High Definition, Mini Size

Sensor Size:1/3 inch

Remote Control:Without Remote Control

Export Markets:Global

Product Description

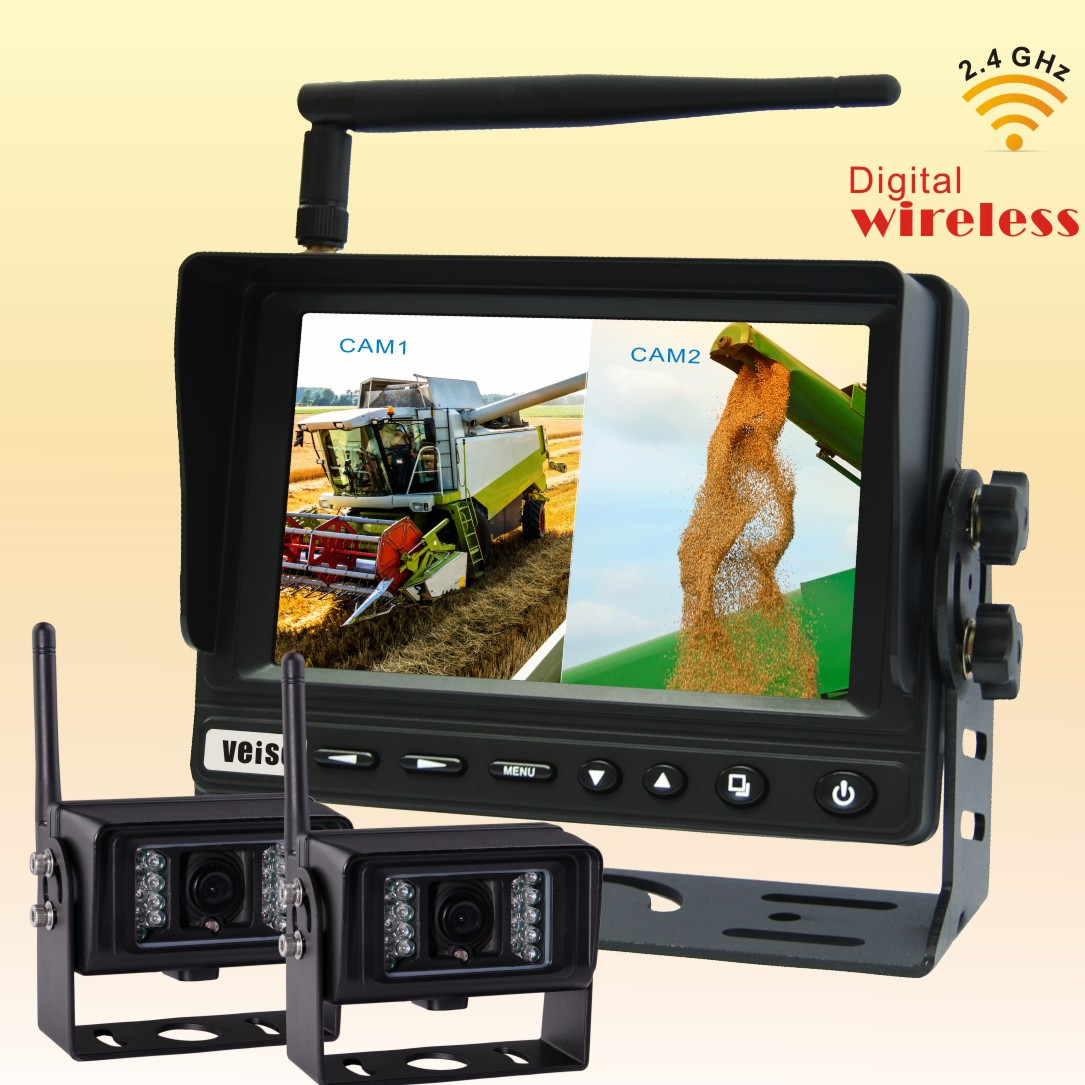

Wireless Camera Observation Video System for Farm Tractor,Combine,Cultivator,Plough,Trailer,Truck

Digital Wireless Camera Monitor Systems
5"Digital Screen TFT LCD Monitor Built-in 2.4GHz Digital Wireless Receiver,Graphical
menu Image automatic cycle mode, night mode settings, reversing ruler settings,
reversing the priority function is triggered;
Picture Mode sub-screen, two screens
Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing
DC14~+87V(Td400mS) 5pulses Load Dump,300cd/m2 Brightnes
2.4GHz Digital Wireless Camera Aluminum Camera IP69K Waterproof and 10G Vibration,
IR LEDs for Night Vision
Free Operating Voltage: DC10~32V
Wireless Camera Observation Video System for Farm Tractor, Combine, Cultivator, Plough, Trailer, Truck

Digital Wireless Monitor Camera system

Digital Wireless Receive Monitor(Model:SP-536)

5" Digital Screen TFT LCD Monitor

Built in 2 CH 2.4GHz Digital Wireless Receiver

Operation Frequency:2400 ~ 2483.5MHz

Receiving Sensitivity:?-86dBm(1MHZ QPSK MD300RE)

Overlapping Hopping Channel:80

Color System:PAL/NTSC

Display Resolution: 800RGB(H) X 480(V) dot

Wide view angle(CR>10):(up/ down): 70/70 (left/right): 50/70

Brightness (cd/m2): 300

Contrast ratio: 500:1

Operating temperature: -20ºC to +70ºC

Storage temperature: -30ºC to +80ºC

Free Operating Voltage: DC10~32V

External dimensions:(L x W x T) (139X100X49mm)

Weight Approx: 450g

Digital Wireless Waterproof IR Camera(MODEL:DF-8275H-SFS*1)

Image Type: 1/3 inch Color CMOS

Built in 2.4GHz Digital wireless transmitter

Transmission Power:18dBm with Power control

Line of Sight Range:?100M

Horizontal Resolution:500TV Lines

Effective pixel:NTSC:720(H)X480(V);PAL:720(H)X480(V)

Usable Illumination : 0Lux ( Built in 18pcs IR LED's for Picture Support in the Dark)

Free viewing angle: 120°

Waterproof: IP69K

Shockproof: 10G

Free Operating Voltage: DC10-32 Volts

Dimensions: 106(W) x 75(H) x 70.4(D) mm (without mounting)

Weight : 450g

Accessorie

U- Support Bracket,Angle Adjustment Screw,Removable Sun Visor,Electrical Connecting Cable,Antenna*3,User's Manual
