Windows CE 6.0 GPS Navigator Box with 1GHz 800X480

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:50 Pieces

Trade Terms:FOB

Payment Terms:L/C, Western Union, Paypal

Trademark:Lsailt

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:LLT-JV3307

Type:GPS Navigator

Use:Automotive

Port Number:Multichannel

Model:Integration Type

Carrier Frequency:Dual-Frequency

Chip:MStar

Brand:Lsailt

Certification:ISO14001

Main Frequency:800MHz/1GHz

Hvga:800X480

OS:Wince 6.0

Mirror Link:Two-Way Touch

Export Markets:Global

Additional Info.

Trademark:Lsailt

Packing:Standard Export Box

Standard:CE, RoHS, SGS, GMP, etc.

Origin:Shenzhen, Guangdong

Production Capacity:50, 000, 000 PCS/Year.

Product Description

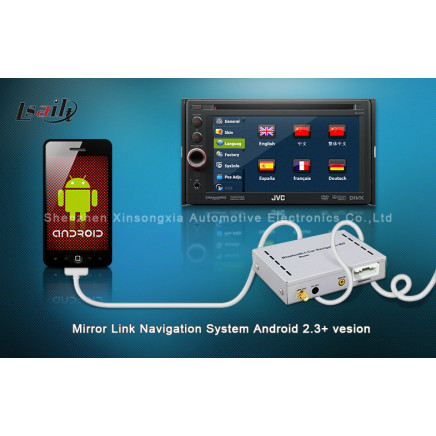

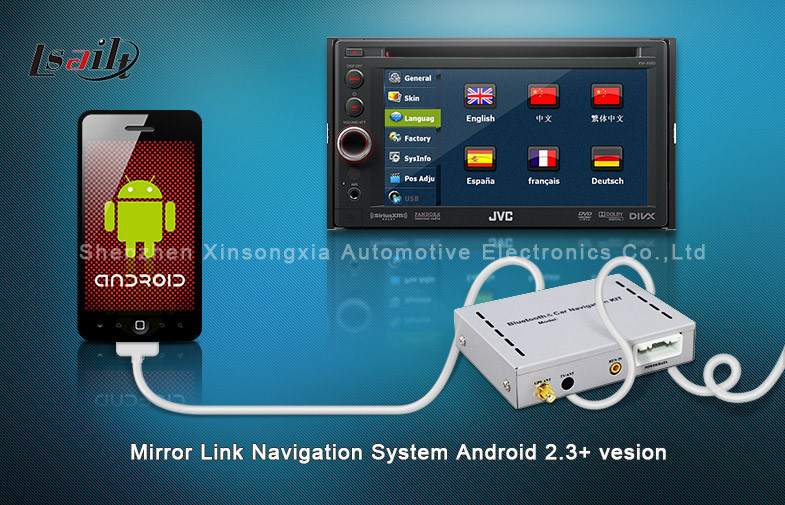

Mirror Link Navigation for SONY with Mute Dedicated Line / Touch Function

Trade Terms

Min. Order	1Set	Unit Price	Negotiation
Trade Terms	FOB	Payment Terms	T/T, western Union, PayPal
Supply Ability:	3,000pcs per month	Delivery Time:	5 working days after received your payment
Packaging Details:	Standard export carton	HTTP	www.lsailt.com
SIZE	1188426 (MM)	GR. WT	0.8KG/SET

Custom properties

CPU	1GHZ	RAM	256M
Working voltage	9-12V	OS	WINCE 6.0
HVGA	800X480	MAP	IGO/PAPAGO
Mirror Link	Two-way touch	Type	Through the cable

Add Advantages:
1) Nondestructive installation design, which does not damage to the wires of original car; special interface cable, plug-up installation without wire cut;
2) Choose installation functions freely (Bluetooth optional);
3) Technology is reliable, take the original agreement;
4) After upgrading, it still remains all the functions of the original head unit, even if navigation goes wrong, which does not affect the function of the original car;
5) After-sales service is convenient, replace the adapter module directly, compare with special machine, it's much simpler, less risk, more safe and reliable;
6) Choose beautiful interface as you like;
7) Achieve handwritten navigation, and control the navigation by touching it. Compare with the original navigation module, it's more convenient and flexible.

Product Description:

1. Adopt high performance RAM11, car regular hard acceleration processorA6II,main frequency is 1GHZ;
2. With high capacity memory for DDR3 256M;
3. OS:WINCE6.0;
4. Support many kinds of resolutions,default 800*480;
5. Support mobile mirror link;
6. Support many kinds of navigation software. Support 3D live navigation With Navigation voice mixing function, Support runs multiple maps; the highest support 32G;
7. Support touch screen operation;
8. Support upgrade OS by TF card and U Flash Disk ;
9. Support USB 2.0 external U Flash Disk. Support external Hard Disk;
10. Support many kinds of video formats(1080P):AVI(H.264, DIVX, DIVX, XVID, rm, rmvb, MKV(H.264, DIVX, DIVX, XVID), WMV, MOV, MP4(H.264, MPEG, DIVX, XVID), MPEG, MPG, FLV(H.263,H.264);
11. Supports many audio formats :WAVE,AIFF,AU,MP3,MIDI,WMA,RealAudio,VQF,OggVorbis,AAC,APE;
12. Equipment with Bluetooth function, providing a telephone connection, Bluetooth music player and other functions;
13. Design EQ sound choice function, achieve high quality music effect.

Product Application:

1.Vehicle: Car, bus, truck;
2. Brands: Toyota, Honda, Nissan, GM, Buick, Kia, HYUNDAI etc.
3. Super auto supplies supermarket,car audio modification store,automobile service factory
4. Apply to the car DVD host:PIONEER/KENWOOD/SONY/JVC/ALPINE/PHILIPS etc.

Competitive advantages:

1. Easy installation. Nondestructive installation;
2. Random installation ,without secondary installation;
3. Simple functions, strong stability, which more useful,
4. Convenient to upgrade map.
5. Design EQ sound choice function, achieve high quality music effect.

Product accessories
Mainframe	1(standard configuration)
Dedicated wire	1(standard configuration)
Antenna	1(standard configuration)
USB cable	1(standard configuration)
Specification	1(standard configuration)
certification	1(standard configuration)
Warranty card	1(standard configuration)
Microphone	1(standard configuration)
SPK	1(optional configuration)
Map card	1(optional configuration)
Mute dedicated line	1(optional configuration)

Product parameter
CPU	SiRF Atlas VI
Main frequency	800MHZ/1GHZ
RAM	256M DDR3
Flash memory	256Mcan expand to 8GB
Navigation storage	SD/TF maximum 32GB
HVGA	800X480 or 480X234(RGB)
Working voltage	DC 9-16V
Dual Video Display	CVBS,Y/C,YPbPr,RGB
Video out voltage	1.0Vpp/75?
Operating temperature	-40慢to +85慢
Storage temperature	-40慢 to +100慢
USB	mouse,mobile mirror link,AV display,maximum 32G
Sound out	Dual channel CD stereo sound
Audio playing	MP3,M4A,WAV,AMR,AWB,AAC,FLAC,MID,MIDI,XMF,RTTTL,RTX,OTA,WMA,RA,MKA,M3U
VIDEO playing	MPG,MPEG,DAT,VOB,TS,TRP,TP,M2TS,MTS,MP4 ,MOV,RMVB,RM ,MKV,DIVX, AVI,ASF,WMV,FLV,TS,WEBM.
Format of pictures	JPEG,JPG,GIF,PNG,BMP,WBMP.
MAP	IGO/PAPAGO/ Careland/DaodaoTong
Navigation sound	Voice sent back/ sound mixing e
Sound Control	More EQ simulate control
	Balancing control
	Acoustic control
	Spectrum collection and variety shows
Time set	clock,Auto-Sync through GPS
BT	BT 4.0 CLASS 2 mode
Track sensitivity	-161dBm
Positioning accuracy	10m,2D RMS,5m,2D RMS,WAAS enable
GPS Antenna type	External active ceramic antenna

For models: 2015 Models:

AVH-X1750DVD, AVH-X2750BT, AVH-XL4750DVD, AVH-XL4750DVD, AVH-XL5750BT, AVH-X5750, AVH-X6750DVD, AVH-X7750BT, AVH-X8750BT

2014 Models:

AVH-X4000NEX, AVH-X5600BHS, AVH-X4600BT, AVH-X3600BHS, AVH-X2600BT, AVH-X1550BHS, AVH-X2550BT, AVH-X2550DVD, AVH-X4550BT,

AVH-X5550BT, AVH-X6550, AVH-X7550, AVH-X8550, AVH-X4650, AVH-X5650BT, AVH-X6650BT, AVH-X7650BT, AVH-X8650BT,

2013 Models:

AVH-X8500BHS, AVH-X7500BT, AVH-X6500DVD, AVH-X5500BHS, AVH-X4500BT, AVH-X3500BHS, AVH-X2500BT, AVH-X1500DVD etc. all machine with NAVI interface. (800X480))
Statement: All brands on this website are belong to original company, if do not want to use this website, please note in time and delete.
