WiFi 3G Mobile DVR GPS Tracking System

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$95.0 - $118.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 118/ Piece
500.0	US $ 95/ Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Sep 18, 2014 To Dec 24, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OX-TK-8204

Type:GPS Tracker

Use:Automotive

Operation System:Linux

Compression:H.264

Signal System:PAL:25 Fps, NTSC:30 Fps

Optional Function:G-Sensor ;WiFi;3G-WCDMA,Cdwma,Cdwma2000,TD-SCDMA

Extended Port:Rj45X1;RS232X2;RS485X2

Warranty:One Year

Certificator:CE; RoHS; FCC

Export Markets:Global

Additional Info.

Trademark:OEM/ODM

Packing:Gift Box

Standard:CE, ROHS

Origin:China

Production Capacity:50000PC /Year

Product Description

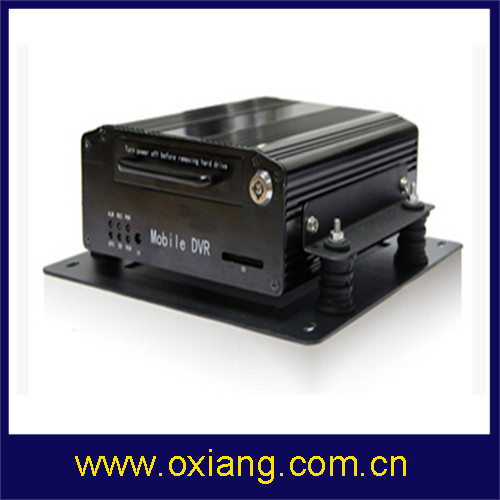

Newest 3G/WiFi Mobile DVR GPS Tracking System

Features:

1. Management for 500 vehicles

2. Real-time video and audio monitoring

3. Real-time vehicle status with complete information: Online number, speed, GPS Tracking,
Temperature, brakes, backing up, turnning and alarming etc

4. Remote control to gas-off/power off to vehicles

5. Video search, download

6. Picture capture

7. Intercom, Broadcasting, Text To Speech

8. PTZ Control

9. History Tracking

10. Alarm linkage(Speeding alarm, external emergency alarm, hard disk error alarm, video lost alarm, electronic map markers)

11. Electronic security fence

12. Google Map/Mapinfo

13. Multiple access, permissions setting

Technical Specifications:
Operation System	Linux
Compression	H.264
Signal System	PAL:25 fps, NTSC:30 fps
Language	Simplified Chinese/Traditional Chinese/English optional, OSD Menu
Display Frame Rate	D1/HD1/CIF Selectable. 4CIF@25fps,4HD1@25fps,2D1@25fps+25fps
Video Input/ Output	4-CH Input/1CH Output
Audio Input/Output	4-CH Input/1CH Output
Alarm Input/Output	4 alarm input/2Output
Recording	Manual/ Schedule/ Motion Detection
	GPS Vehicle tracking, Speed detection, Synch time
	Event Sensor trigger, Speeding, Accelerometer, Temperature, Video Loss
Playing Mode	Support 1 channel or synchronous 4 channels By PC
Searching Mode	By Time/ By Date/ By Event
Storage	Support single/Dual SD card selectable, 128GB Total/Max 64GB for Each
Built-in Model (Optional)	G-SENSOR
	GPS
	3G( WCDMA/CDWMA2000/TD-SCDMA)
	WIFI 802.11b/g
Remote Control	IR Remote Control /Control Panel
Software Upgrade	SD Card
Power Input/Output	8~36V Input,12V Output
Camera's remote power supply	Supply Remote Power for 4 channel cameras DC12V@2A
Extended Port	RJ45X1;RS232X2;RS485X2
Working Temperature	-30degree~+70 degree
	Relatively Humidity 20% - 95%
	Vibration Resistance < 2 Grms
	Shock Resistance < 1200 Grms
Vehicle key signal	?4V (OFF),?5V(ON)
Power Supply	DC8V~36V,6W
	8~36V Input, DC12V@2A Output for 4CH Cameras
Meas(LWH)	22x15x7.6 cm
