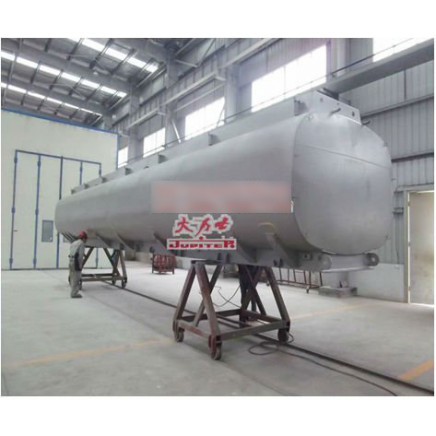

Widely Used Oil and Fuel Tanker Semi Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF

Payment Terms:L/C, T/T, Paypal, Money Gram, Western Union

Trademark:Jupiter

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:FTW9357TJZG

Type:Towing Pin

Towing Pin Material:Carbon Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Flexible Universal Joint

Brake Pad Material:Ceramic

Towing Pin Type:Mushroom Type

Towing Pin Diameter:50mm

Differential Gear Type:Gear Type

Independent Suspension Type:Trailing Arm Type

Size:as Your Requirements

Colour:as Your Request

Use:Oil or Fuel Storage

Export Markets:North America, South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:Jupiter

Packing:Nude or as Customer?s Requirement

Standard:CCC

Origin:China

HS Code:87163910

Production Capacity:1000 PCS Per Year

Product Description

Type
Fueling vehicle for fuel

Tank
Carbon steel Q235B

Thickness of tank
6mm

Thickness of end cover
6mm

Thickness of baffle
4mm

Overall Dimensions(LxWxH)
12980× 2495× 3800mm

Tanker Dimensions (LxWxH)
12800× 2300× 1620/1800mm

Tank effective cubage
43m³

Tank Fittings
One-six compartments or according to clients requi-Rementsand with related fittings like hatch, manhole, Dischargevalve, emergency valve, ladder, walking way.

Weight
Tare Weight
11500Kg

Payload
27400Kg

Gross weight
38900Kg

Chassis
Material
Q345B material of the main beam and cross beam, top/bottom flange: 12mm/16mm, width: 150mm, middle flange: 8mm

Axle number
Three

Axle specs.
FUWA brand

Wheelspan
7160+1310+1310

Plates of spring
8/8/8

Suspension
Air or mechanical suspensions FUWA Brand

Rim

Rim quantity
12 pieces

Rim quality
12.00R20/11.00R20

Tire quantity
12pieces

Brake
Dual line Air Brake with T30 on front axle,
T30/30 on middle and back axle

Emergency relay valve
Chinese brands

Electrical
24V, 6 ways, ISO air connector

Light
Same as international standard including front, side,

Rear, turn signal lamp, number plate lamp

Miscellaneous
1 piece Tools box; 2 pieces Spare Tire Carriers

King pin
3.5inch Chinese brands

Landing gear
2 PCS FUWA brands

Side Guard
2 PCS, on each side of the chassis

Fire extinguisher
2 PCS, on each side of the tank

Mud guard
6 PCS plastic mud guard

Rear bumper
Big one in the rear of the chassis

Hose box
2 PCS PVC hose box 5 meters long

Hose
2 PCS discharge hose 5 meters long

Painting
Two layer of anti-corrosive primer, one layers of
Finish primer

Marking
According to the requirement of the buyer

Guarantee Period
One year

Shipping terms
Container transportation

Widely Used Oil and Fuel Tanker Semi Trailer

Trailer Model	2 /3 axles fuel semi trailer
OverallDimension(LxWxH)(mm)	11000×2500×2800/customize
Payload	40ton
Volume	40-45CBM/customize
Tank	Single compartment
Tank body thickness	5 /6mm
Front and end plant thickness	5/6 mm
The diesel engine	Standard extraposition 4102
air compressor	Standard 12 CBM
Landing Gear	Standard single 28ton
Traction Pin	90mm
The material of main beam	The height of the beam is 500 mm, upper plate is14mm,
The material of main beam	down plate is16mm,middle plate is 8mm.
Axle	FUWA brand, 2 axles, 13ton/axle
Wheelbase(mm)	6200/7780/8880+1310+1310 mm
Suspension system	Common Mechanical suspension
Steel Spring	-/10/10 leaf spring suspension
Steel rim	12 pieces
Tire Type and quantity	12R22.5 8 pieces
Spare Wheel Bracket	2 pieces
Ladder	Yes
Tool Box	1 standard
access door	2 sets
Brake system	Dual Line braking system
Brake block	3 pieces ,dilated
Brake air chamber	Six double air chamber
Electrical system	1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
	Tail lamp with turn signal, brake light & reflector, side lamp etc.
	One set 6-core standard Cable.
Side Guard	According to customer's requirement
Painting	Color by customer's requirement
Packing	Polish with wax before shipping
Usage	Is mainly used for transporting dry bulk cargo,suck as cement, flour, grain,
	Flexible , convenient operation, working efficiency, large volume, make full use of space
	and the advantages of safe and reliable.
