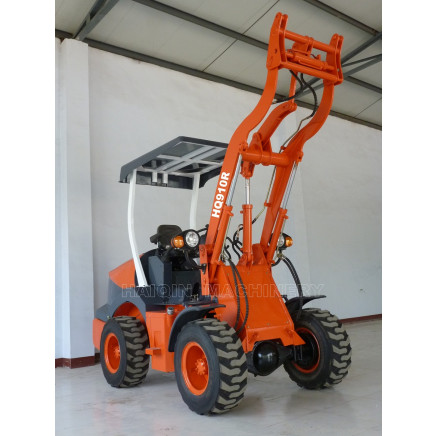

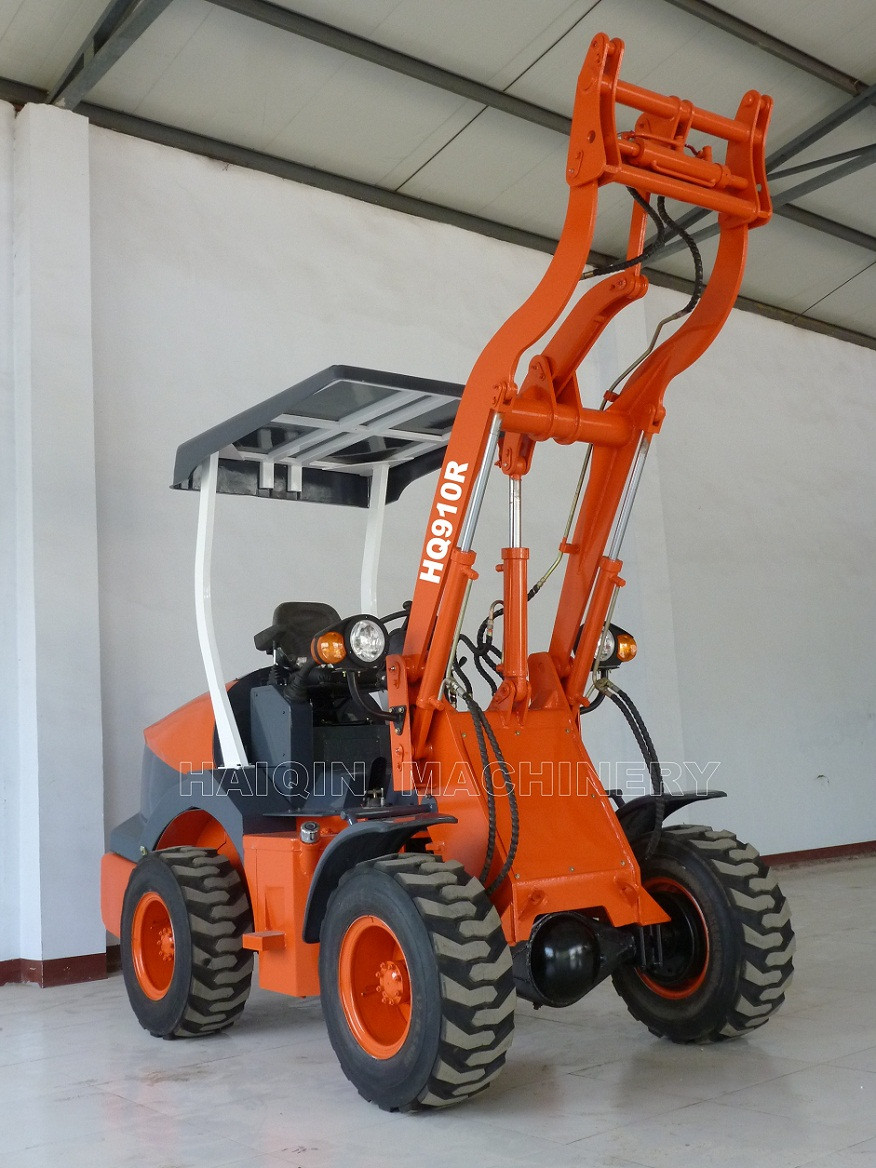

Whole Hydraulic Small Wheel Loader (HQ910R) with CE

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 8000.0-11000.0/ Piece

Price:$8000.0 - $11000.0 / Piece

Trade Terms: FOB, CFR, CIF, FCA, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Mar 13, 2015 To Nov 15, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:HQ910R

Type:Wheel Excavator

Usage:Earth Moving

Bucket:Shovel

Transmission:Hydraulic Transmission

Drive Type:Internal Combustion Drive

Bucket Capacity:0.5~1.0m³

Size:Small-Scale

Certification:CE, ISO9001: 2000, SGS

Condition:New

Loading Weight:1000kg

Engine:Euro III

Export Markets:Global

Additional Info.

Trademark:Haiqin

Packing:3 Units in One 40 Feet Container

Standard:CE, ISO, SGS, ROP&FOPS

Origin:Shandong, China

HS Code:84295100

Production Capacity:8000 Units / Year

Product Description

Wheel Loader ( HQ910R):

Whloe Hydraulic Driving
Steering pumps, priority valve and other hydraulic parts are import from America or Itlay.
CE Certificate
Euro III Engine
Multi-function
Joystick operation

Wheel Loader( HQ910R) Specifications:

Overall Dimensions: 4113 mm/1430mm/2323mm(2000)
Operating Weight: 2690kg
Max. Breakout Force: 35KN
Min. Ground clearance: 230 MM
Turning angle: 35 degree
Min turing redius: 3750 MM
Engine model: XINCHAI 490BT or XINCHAI EURO III 490BPG / Japan Yanmar EURO III 4TNV-88-BS
Power of engne: 32.4/2400, 25.2 / 2200 kw/ rmp
Cylinder: 4/108/125
Speed, (km/h )
Forward 1 0-7
Forward 2 0-24
Back 1 0-7
Back 2 0-24
Rated bucket capacity: 0.5 m3
Three times: 9 s
Dump height fully raised: 2420 mm
Reach fully raised: 850 mm
Tyre model: 10-12.5 / 12-16.5 / 31*15.5-15
Tyre width: 270 / 300 / 380 mm
Track base: 1160 mm
Wheel base: 1740 mm

Model	HQ910R
optional	Hydro quick hitch
	pilot control
	China EuroIII engine
	Yanmar engine
	12.00-16.5 tire
Fork	Grass Fork
	Wood grapple
	Snow blade
	4-in-1 bucket
Overall Dimension(mm)	4443/1430/2523(2300)
Rated Loading(t)	1.0
Operating Weight(kg)	2690
Maximum Breakout Force(kN)	35
Min.Ground Clearance(mm	230
Steering Angle(°)	35
Min.Swerve Diameter(mm)	3750
Forward I(km/h)	0-7
Forward II(km/h)	0-24
Backward I(km/h)	0-7
Backward II(km/h)	0-24
Engine Model	490BPG
Rated Power/Rated speeds(kw/r/nin)	32.4/2400
Rated Bucket Capacity(m3)	0.54.
Total Time(S)	9
Dump Height Fully Raised(mm)	2420
Reach Fully Raised (mm)	850
Tyre Type Specification	10/12.5
Tyre Width (mm)	270
Track Base (mm)	1160
Wheel Base (mm)	1710
Maximum Speed (km/h)	24
