Wheelcjair Elevator for Van for The Disabled

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CIF, EXW

Payment Terms:T/T, Western Union, paypal

Trademark:Xinder

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:WL-UVL-700S-1090

Driving Type:DC Elevator

Capacity:<500kg

Persons:1 Passenger

Certificate:CE

Platform Size:1150*720mm or 1250*820mm

Loading Capacity:350kg

Operation:Electric

Export Markets:Global

Additional Info.

Trademark:Xinder

Packing:Wooden Case

Standard:CE

Origin:China

HS Code:84289090

Production Capacity:10000

Product Description

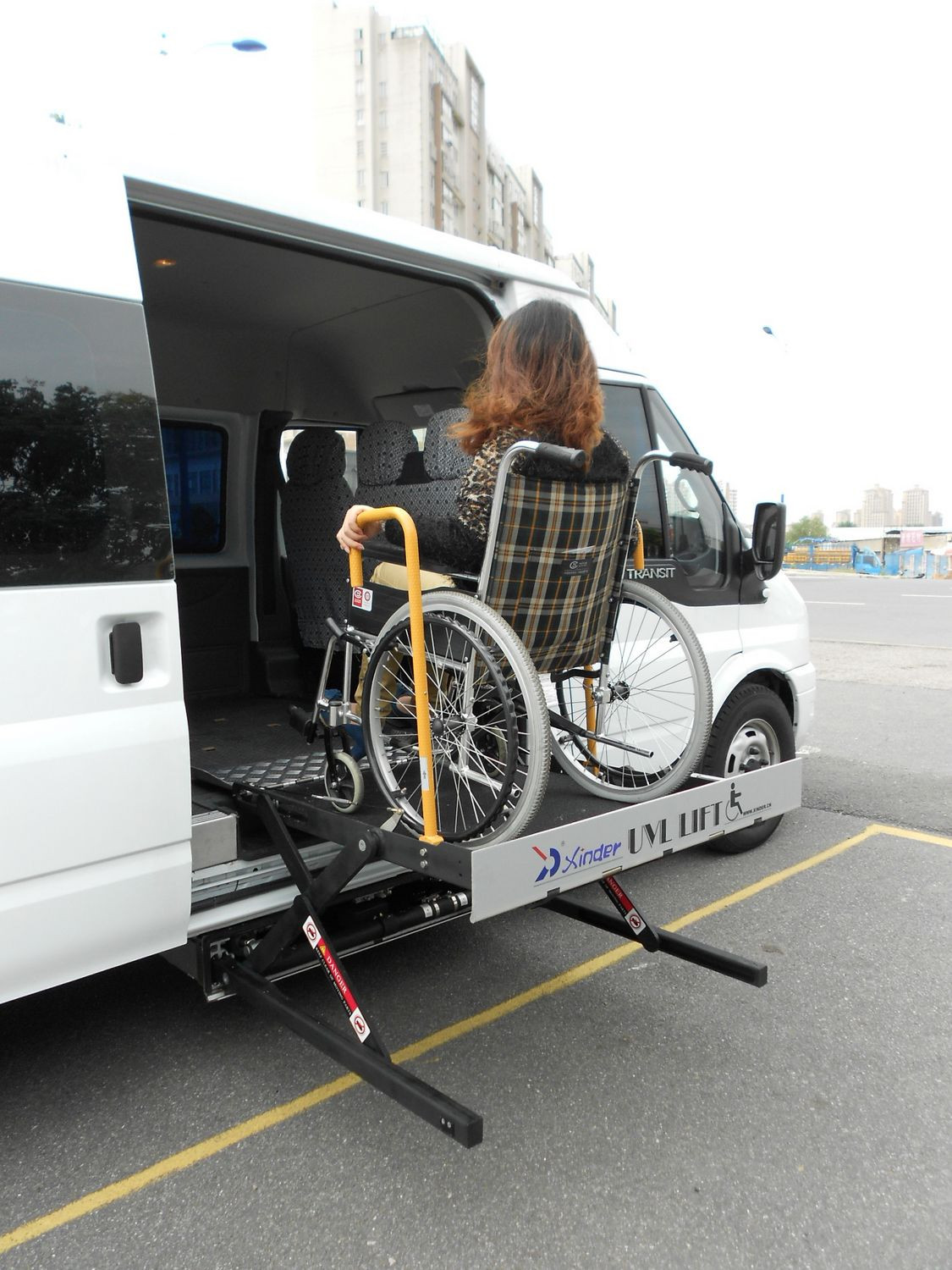

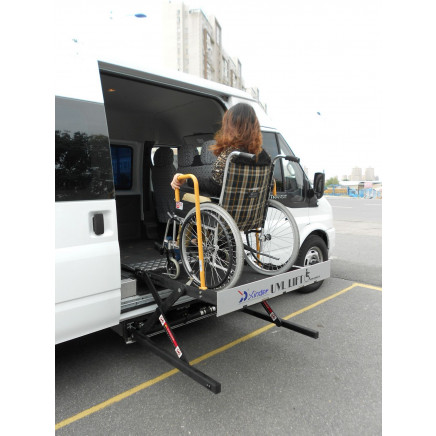

WL-UVL-700-S-1090 wheelchair lift is specially designed for van, and it is installed under vehicle floor at the side door. It is operated easily, safe and reliable, with load capacity 350KG. The wheelchair occupant, attendant or driver can operate it by operating switches.
This wheelchair lift platform extends out from vehicle floor, raises to vehicle floor or down to ground. If you do not use it, the platform can be folded under vehicle floor so that make sure enough room for doorway. There is a non-slippery platform to put the wheelchair on, and each front rollstop and rear rollstop, which all make the wheelchair go inside the vehicle, also protect the platform when it raise up and down.
It uses hydraulic power unit, stable when hydraulic lift up, save up electricity when gravity decline. With optional standard kit manual emergency devices, if the lift without power, it will be operated manually by more than 2 staffs.

2. ADVANTAGES
Ø Protection: Electric front and rear rollstop, and side bars
Ø Safety: No-skid aluminum honeycomb platform and handrail (option)
Ø Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs
Ø Dual lifting arms are activated hydraulically, providing a stable and strong lifting environment.
Ø Side handrails (Option), for increased comfort and security
Ø Sound and flash light alarm during operation of platform
Ø Built in manual backup system

Ø Raise lift platform: Motor drive, hydraulic function;
Ø Lower lift platform: Pressure release valve of power unit control velocity of flow to provide gravity function;
Ø Raise platform manually: Operate manual pump;
Ø Lower platform manually: Rotate button of manual pressure release valve with specialized tool;
Ø Movement of front & rear rollstop: Electric drive(front rollstop), mechanical drive (rear rollstop);
Ø Model & Capacity of hydraulic oil: L-HV46
