Description

Details

Basic Info.

Model NO.:WL-D

Type:One Cylinder Hydraulic Lift

Lifting Capacity:350kg

Driving Type:Hydraulic

Certification:CE

Driving Motor Number of Mechanical Lift:1

Condition:New

Brand:Xinder

Design:Single Post

Model:Wl-D-880s

Max Lifting Height:880mm

Safety Capacity:350 Kg

Plaftform Dimension:1150*720/1250*820mm

Certificate:CE

Volt:24V or 12V

Operation:Electric and Hydraulic Control

Own Weight:135kg

Packing Size:1240*600*1400mm

Gross Weight:185kg

Export Markets:Global

Additional Info.

Trademark:xinder

Packing:Wooden Case

Standard:1150*720/1250*820mm

Origin:China

HS Code:8428909090

Production Capacity:1000 Sets/Month

Product Description

Model: WL-D-880S

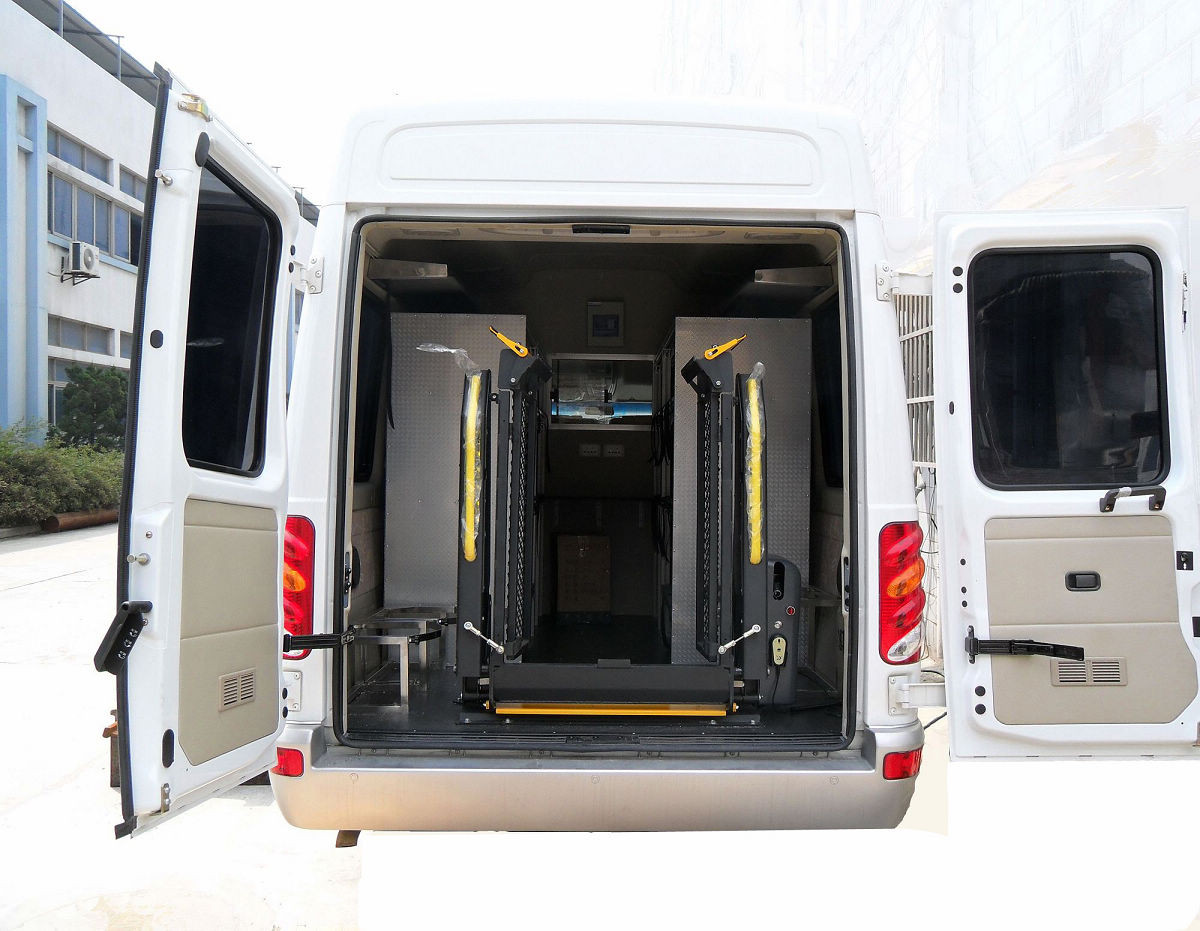

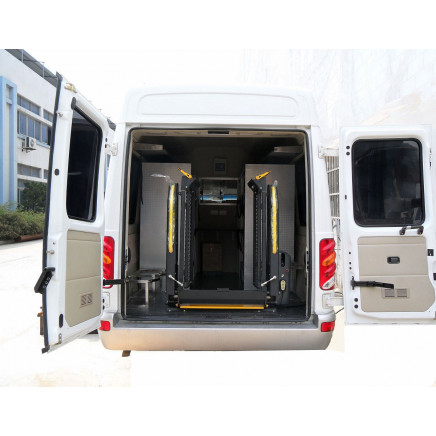

This WL-D-880S wheelchair lift gives new meaning to the term accessibility. The fully automatic split platform folds up and out of the way at the push of a button, leaving the doorway clear. The steel frame and powerful hydraulic pump ensure a fast, secure means of entry and exit. You will find the convenient and easy to operate.

ADVANTAGES
¨ Exclusive split-platform design allows clear access to the vehicle's interior
¨ Powerful hydraulic pump ensure smooth, stable operation for heavy wheelchairs and scooters
¨ All-steel frame features convenient handrails for increased comfort and security
¨ Stable, non-skid platform with automatic inboard and outboard rollstops accommodates most wheelchairs and scooters
¨ Pre-lubricated bearings at all major pivot points offer long-term durability
¨ High gloss, polyester powder coat finish resists corrosion
¨ Built in manual backup system

Model	WL-D- 880-1150	WL-D- 880S-1150	WL-D- 880U-1150	WL-D- 880-1250	WL-D- 880S-1250	WL-D- 880U-1250
Platform Size (A×B)	720×1150	720×1150	720×1150	820×1250	820×1250	820×1250
Overall Width (C)	1135 mm	1135 mm	1135 mm	1235 mm	1235 mm	1235 mm
Overall Height (D)	1225 mm	1225 mm	1130 mm	1225 mm	1225 mm	1130 mm
Overall Length (E)	440 mm	440 mm	500 mm	440 mm	440 mm	500 mm
Max Lifting Height(F)	880 mm	880 mm	880 mm	880 mm	880 mm	880 mm
Rated Voltage	DC12/24V	DC12/24V	DC12/24V	DC12/24V	DC12/24V	DC12/24V
Max Working Pressure	14 MPa	14 MPa	14 MPa	14 MPa	14 MPa	14 MPa
Loading Capacity	350 Kg	350 Kg	350 Kg	350 Kg	350 Kg	350 Kg
Own Weight	135 Kg	135 Kg	135 Kg	135 Kg	135 Kg	135 Kg
