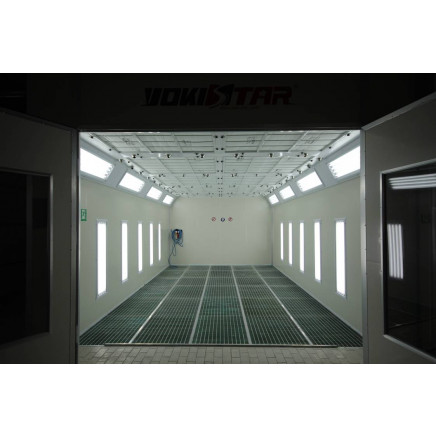

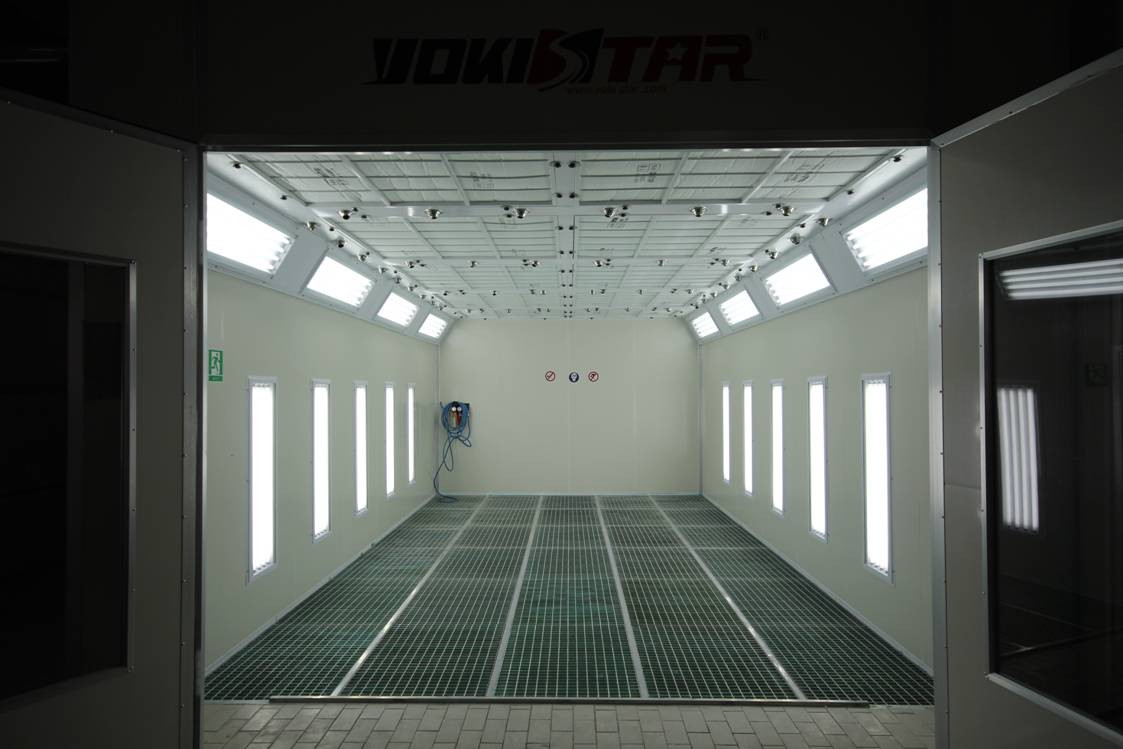

Waterborne Industrial Coating Oven Spraybooth

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$20800.0 - $27040.0 / Set

Min. Order (Sets)	Unit Price
1.0	US $ 20800/ Set
16640.0	US $ 27040/ Set

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, Cash

Price Valid Time:From Apr 11, 2014 To Apr 13, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:YS-70 nonstandard

Certification:CE

Airflow Direction:Full Downdraft Airflow Way

Heating Mode:Diesel

Paint Mist Treatment:Dry-type

Condition:New

Ventilation:Full Downdraft Airflow Way

Air Intake:2X4kw Double-Intake Centrifugal Fans

Air Exhaust:1X7.5kw Double-Intake Centrifugal Fan

Heating:Riello Rl28 Diesel Burner

Voltage:1X220V, 3X380V, Your Special Voltages Are Accepted

Optional Colour:White, Blue, Orange and Red

Port:Huangpu Port or by Your Order

Main Product:Spray Booth, Prep Station, Infrared Curing System

Export Markets:Global

Additional Info.

Trademark:YOKISTAR

Packing:Bubble Film Packing for Sea Transportation in Bulk

Standard:20?GP can load 1 set, 40?GP 2 sets.

Origin:Guangzhou, China

HS Code:84198990

Production Capacity:120units/Month

Product Description

Model:YS-70 nonstandard
Inside dimention:6900*3900*2650mm L*W*H
Any Size Requirements Can Be Met.
with waterborne paint system

A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products.
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.

Warranty
The goods are guaranteed for 12 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.

YOKISTAR Products
High quality and advanced technology are applied in YOKISTAR product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp.

Waterborne Industrial Coating Oven Spraybooth

	YS-70
	Luxurious spray booth
Room body	CE shape room body
Wall panel	50mm, EPS wall panel
Main door	Folding main door, 4 folds, 3200в2600 mm(WвH), made by bending steel without cover frame, colour : blue. Escape door:1 unit,800в2000 mm(WвH),colour:white.
Basement	Galvanized steel assemble, 350mm high, quadrate steel support, 5 rows of grilles made by flat bar and twisted steel, then galvanized. 3 ramps, external setting, 900в2500mm/pc.
Intake air system	2в4KW double-intake centrifugal fans for intake air, motor outside, belt- drive, air capacity for each fan: 30000m3/h
Exhaust air system	1в7.5KW double-intake centrifugal fan for exhaust air, motor outside, belt drive, air capacity: 25000m3/h.
Damper actuates	electric damper actuates from spraying to baking cycle,electric damper for exhaust air
Heating system	RIELLO RL28diesel burner, stainless steel heat exchanger, max heating productivity: 28000kcal/h.
Filter system	Pre-filter,ceiling filter,fibreglass filter,activated carbon filter

Lighting system	Ceiling lights: 10Unitsв4Pcs=40Pcsв36W, with electronic ballasts.
Lighting system	Side lights: 8Unitsв4Pcs=32Pcsв36W,with electronic ballasts.
Control system	Power supply switch,emergency stop,fire proof valve,PLC combined with HMI control,equip inveter for motors
Total power	24.6KW
Note	This model has waterborne paint system
