Vibration Detector, Seismic Detector for Atms (VV600/602PLUS)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:5 Pieces

Trade Terms:FOB, EXW

Payment Terms:L/C, T/T, Paypal, Money Gram, Western Union

Trademark:GE

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:VV600/602PLUS

Type:Sensor

Usage:Anti-theft, Metal

Installation Mode:Built in

Application:Home, Communication Electronic Products, ATM, Jewelry

Pcaking:Ge Original

Unique Selling Points:Experienced Staff & Best Price

Warranty:3-Year

Weight:0.5kg

Export Markets:Global

Additional Info.

Trademark:GE

Packing:Original CTN

Standard:CE, UL

Origin:China

HS Code:8531100000

Production Capacity:1000PCS Per Week

Product Description

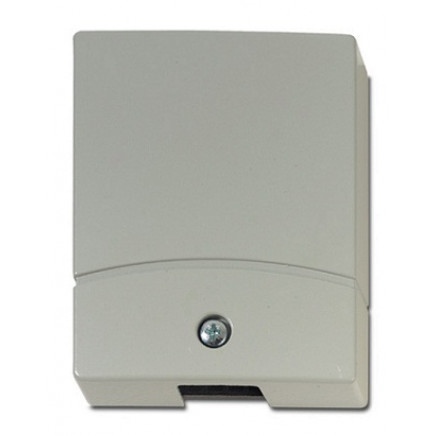

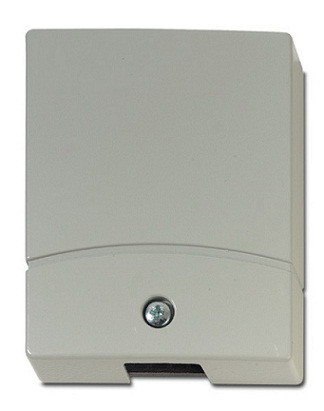

VV602-PLUS Seismic Detector for ATMs and Night Safe Deposit Boxes

For more details, please:
Contact: Tina
Sype: Dana_z88
TEL: 0086 -13316516142

Specifications:
Input power 9 to 15 VDC, 2 V pk-pk
Current consumption Nominal 8.6 mA
Alarm output Form A solid state relay, max series resistance 35 ohm
Alarm indication LED-indication screw no. 3
Sensitivity adjustment 5 steps of approx. 6 dB each
Test output Screw no. 4 for measuring ambient noise level
Detection range 3 to 14 m radius. See Installation Manual for planning Purposes
Tamper protection Temperature 84° C, drill shield, opening contact, pry-off Contact
Low voltage alarm 7.5 V
IP rating IP30
Operating temperature -20 to +55° C
Relative humidity 90% at 30° C
Dimensions (W x H x D) 81 x 101 x 28 mm

The VV600/602 Plus series seismic detectors are designed to detect attempts to break into vaults, safes, night deposit boxes, automatic teller machines (ATMs) and other reinforced physical areas such as data storage's and filing cabinets. The VV600 Plus Series is a next generation development based on proven high technology electronic processing with excellent secure detection without false alarms. Not only with a new look but also designed for the highest security with full-scale tamper protection and two possibilities of testing.

SPC	Mini ATM Vibration selective Motion detector, Seismic Detector
Model	GE VV602-PLUS
Power Supply	From 9 to 15V, max. ripple 2V pp, nom. Value 12V
Current consumption	24mA max
Alarm output	SPTS NC relay capacity 100mA at 30V(3w) opens in alarm for approx.1/2 second
Tamper output	Micro-switch capacity 100mA at 30V(3W)
Alarm Indicator	Led remote output for VT608/VT609; at rest=negative ;alarm on=contact open
Adjustment	Potentiometer with 5 settings,6db each setting
Range	See table above
Anti-tamper Protection	Withstands temperatures of 84° C,anti-rilling shield, contact against magneticfields,antiopening device and cut off,low electricity supply(under 7V)warning cicuit
MTBF	240,000 Philips method
Operating temperature	de+5° C to +40° C
Ralative humidity	90%
	electrostatic discharges 20KV max
	electrical discharges 1.5KV to 0.4mJ max
Dimensions	8010030mm(HLD)
Colour	Gray RAL 7035
Weight	0.5KG
