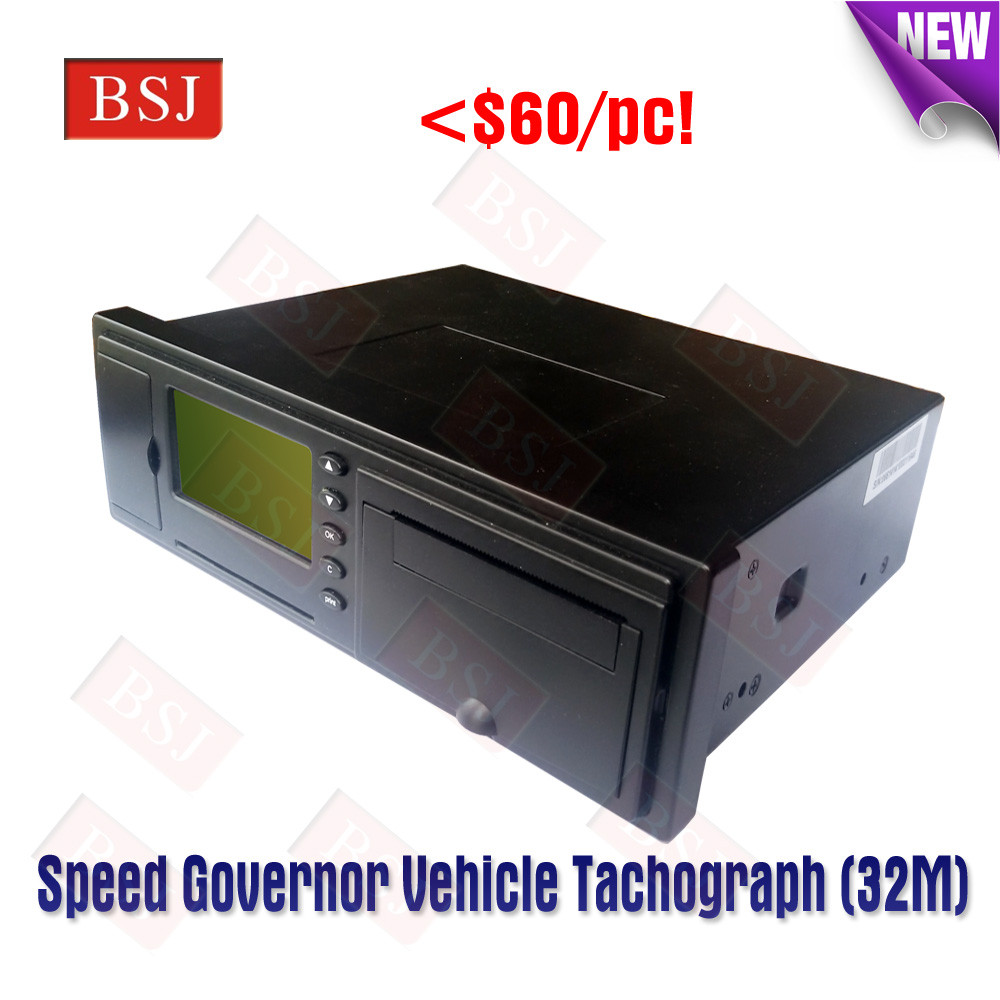

Vehicle Travelling Data Recorder Speed Governor with 2.5" LCD Screen A8

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 1/ Piece

Price:US $1.0 / Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Dec 15, 2014 To Mar 15, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:vehicle travelling data recorder speed governor A8

Screen Size:2.5"

Function:Driving Data Recording, Accident Recording and Analyzing, Video Storing, Self-checking, Identity Recognition, Data Communication, Display and Print, Fatigue Driving Warning, Over Speed Warning

Shooting Angle:160А

Pixel:5 Million

SD Card Memory Size:16G

Camera:2-way

Video Resolution:Normal Definition

Brand:DEC

Voltage:9-36V

Current:70mA 12V

Print Current:390mA-1200mA

Speed Range:0-255km/H

Speed Accuracy:0.5km/H

Size:180*152*50mm

Color:Black

CPU Chip:Arm7 Cortex-M3

Main Frequency:72MHz

CPU Flash Capacity:256k

Export Markets:Global

Additional Info.

Trademark:BSJ/Customized brand is accepted

Packing:Gift Box/Netural Box

Standard:ISO9001; CE; Rohs; CCC;

Origin:Shenzhen, China.

HS Code:85311010

Production Capacity:4000PCS/Day

Product Description

I. Function of vehicle travelling data recorder speed governor with 2.5" LCD Screen A8

1. Self-test function
2. Identity function
3. Recording and storing function for vehicles driving time, speed and mileage
4. Speed alert and recording function
5. Over-time driving (fatigue driving) alarming and recording function
6. Accident doubtful points and record analyzing function
7. Showing printing function
8. Data communications function
9. Management of vehicle information and driver files

II. Quality Service System of vehicle travelling data recorder speed governor with 2.5" LCD Screen A8

1. SQA
2. Design Process Quality Assurance
3. Manufacturing Process Quality Assurance
4. OQC
5. Customer Service Quality Assurance

III. Firmware of vehicle travelling data recorder speed governor with 2.5" LCD Screen A8

1. Boshijie firmware and software programming is configured by our in house team of engineers
2. This team is qualified to develop new firmware for customer's protocol or for newly added functions
3. Boshijie welcomes customer inquiries and challenges for our team of engineers
4. Firmware development includes but not limited to: New firmware (different protocol) development; Modification to current firmware
New function development

IV. Hardware of vehicle travelling data recorder speed governor with 2.5" LCD Screen A8

1. Backed by an R&D team of over 50 engineers, develop new hardware according to customer's requirements as well as further modifications based on our existing products.
2. Hardware design includes but not limited to: PCB Re-layout
New case design
External Device Integration

V. Features and Benefits of vehicle travelling data recorder speed governor with 2.5" LCD Screen A8

Integrated thermal printer
Speed sensor (optional)
English / Chinese menu text (optional)
Additional fleet management features
National regulation and international automotive standards fulfillment
RS232 and USB front connectors

VI. Data recording function of vehicle travelling data recorder speed governor with 2.5" LCD Screen A8

Time: Driver's driving time, break/rest time,
Vehicle speed: Average speed per minute for the last 360 hours
Engine speed: Average speed per minute for the last 360 hours

Accident data: The last 3 records can be locked/unlocked
Fatigue driving events: Driving more than 4 hours without resting at least 20 minutes; Accumulated driving time higher than 8 hours within 24 hours
Over speed events
Events and faults
Special parameters such as the vehicle coefficient characteristic, rpm.

VII. Technical Specifications of vehicle travelling data recorder speed governor with 2.5" LCD Screen A8

Installation dimensions: 190mm з 58mm з 155 mm (w з H з D), 1-DIN radio slot format
Operating voltage: 24 V12 V
Measuring range: 0 to 220 km/h
Operating temperature: 25 А C to +70 А C
Storage temperature: 40 А C to +85 А C
Pulse range: 4, 000 to 25, 000 pulses per km
Clock: Real-time clock
Inputs: Speed sensor, n sensor
Outputs: 2 з V pulse; 1 з 4 pulses/m
Accuracy:
Speed: Б 1 km/h
Distance: 5 km Б 0.1 km
Time: Б 2 s per day
Data keeping time: >5 year (without power)
Protection: IP43
Weight: Approx. 1000 g
Certification: E-mark, CCC (CE, FCC, RoHS upon request)

Model	BSJ-A8
Voltage	9~36V
Current	70mA@12V
Print voltage	9~36V
Print current	390mA~1200mA
Power consumption	0.84W
Speed range	0~255km/h
Speed accuracy	0.5km/h
Size	180.1mmз152.2mmз50.1mm
Case color	Black
CPU chip processor	ARM7 Cortex-M3
Main frequency	72MHZ
External store capacity	8GB
CPU Flash Capacity	256K
Temperature	-20~70 temperature
Dot-matrix LCD Screen	240з32
Print format	Thermal print
External data port	RS232 USB
RTC	DS1307 Chip offered
