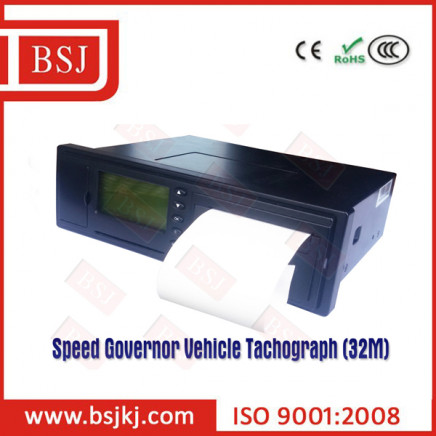

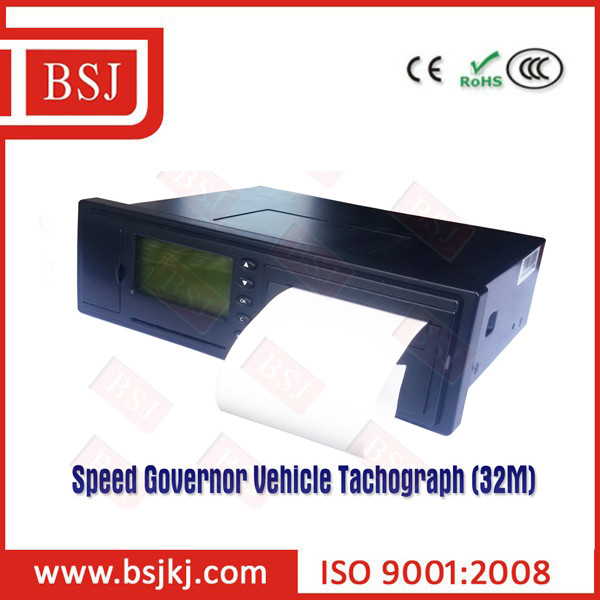

BSJ-A8 Vehicle Digital Tachograph with IC card,printer,camera
System summary
A8 can use RS2332-USB DB9 port to connect with PC to record, save vehicle's driving speed, time, mileage or some related vehicle driving's other information.
Main function
A. Display function
(1)Real time display function
A: You do not need make any operation, BSJ-A8 can show IC card code, current driving speed etc.
B: Press UP key to check real time clock (A8 can offer GMT+8's time, date, it will show YY/MM/DD/HH/MM/SS etc)
(2)Show driving record
A8 support show and record data include: RTC, driver's code and driver license number, latest 360 hours driving speed, VIN code, car plate number, car plate classification, doubtful accident data, latest 2 days driving mileage, fatigue driving record etc.
(3)Show fatigue driving and record
When the same driver keeps continuously driving for 4 hours, A8 will start to record fatigue driving time, it also will send alarm information via speaker in A8.
(4)Show vehicle information and driver file management
A8 can show and record driver's ID function, before driver start to driving, he can plug in IC card to identify his ID.
(5)Check and set parameter
A8 support many ways to check and set parameter, such as check vehicle parameter, IC card information, set sensor ratio, over speed alarm threshold, standard time calibration, vehicle information setting, driver information setting etc.
B. USB function
Upgrade program, download accident doubtful point data, BIN format file.
C. Print function
Print paper can show content include:
Car plate number,
Car plate classification,
Driver's code,
Driver's license number,
Print time,
Parking time,
The last 15 minutes vehicle's average speed(it will record one speed per minute, it record 15 times),
Fatigue driving time (the latest 4 times fatigue driving records)
D. Cut off circuit protect function
A8 can store all data before you cut off electricity of your device.
Details:
Model
BSJ-A8
Voltage
9~36V
Current
70mA@12V
Print voltage
9~36V
Print current
390mA~1200mA
Power consumption
0.84W
Speed range
0~255km/h
Speed accuracy
0.5km/h
Size
180.1mmз152.2mmз50.1mm
Case color
Black
CPU chip processor
ARM7 Cortex-M3
Main frequency
72MHZ
External store capacity
8GB
CPU Flash Capacity
256K
Temperature
-20А~70А
Dot-matrix LCD Screen
240з32
Print format
Thermal print
External data port
RS232 USB DB9
RTC
DS1307 Chip offered
Strong extendibility: Multi-reserved interface,selectable communication handle,display and camera.
Excellent stability: Industrial grade of chip, professional anti-interference process,multilevel battery protection and reliable equipment operation.
Characteristics of monitoring center:
Excellent interface and convenient operation.
Efficient dispatching system and support of more online vehicle.
Two version of software(C/S and B/S version), especially B/S version of software is very convenient for customer to examine vehicle and check historical track.
Software interface of monitoring and control centre can be customized according to customers requirement and habit of usage.
Configuration List
1. Host of vehicle GPS terminal 1
2. Owners Manual 1
3. Warranty Card 1
4. Certificate of Conformity 1
5. Power cord 1 turns
6. GPS antenna 1
7. GPRS/CDMA antenna 1
8. Installation fittings Several
