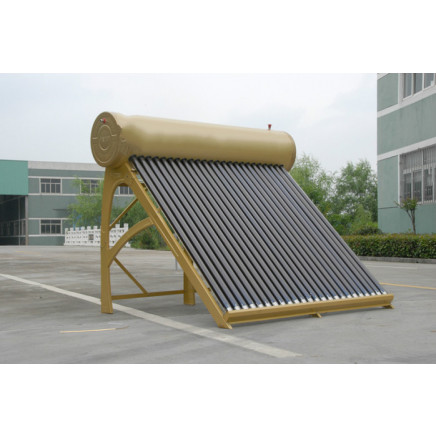

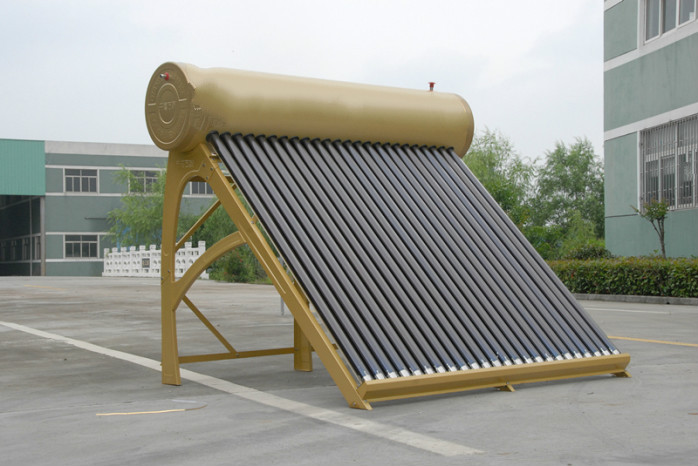

Vacuum Tube Unpressure Solar Water Heater for Home Use (150629)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Sets)	Unit Price
1.0	US $ 70.0-250.0/ Piece

Price:$70.0 - $250.0 / Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Western Union

Price Valid Time:From Jun 29, 2015 To May 31, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:JLF150629

Max. Capacity:>200L

Structure:Compact Type

Pressure:Unpressurized

Interior Material:Stainless Steel

Collector Components:Glass Vacuum Tube

Composition:Tank Insulation

Certification:CE, ISO9001, CCC

Tube Size:58mm 1800mm

Warranty:5years

Solar Water Heater Color:as Per Customer

Frame:30degree to 60degree

Product:200L Solar Water Heater Solar Water Tank Solar Hot

Export Markets:Global

Additional Info.

Trademark:JJL

Packing:Standard Export Carton with Foam

Standard:58mm*1800mm

Origin:China

HS Code:8419191000

Production Capacity:36000PCS/Year

Product Description

200L Solar Water Heater Solar Water Tank Solar Hot Water Solar Water Heating Solar Hot Water Tank

We manufacturer of Solar Water Heaters,Solar,Solar Panel,Solar Water System,Stainless Steel Solar,Solar Collector,Solar Tank,Pool Heater,Solar System for Home,Hot Water Heater,Heat Pipe Solar Collector,Solar hot water heating system,Solar thermal collector,Pressure solar water heater,Swimming Pool Solar Heater,Solar Geysers etc.

Specifications:
1.Solar Water Heater Inner tank:SUS304-2B,0.4mm
2.Solar Water Heater Outer tank:Galvanized Steel 0.4mm
3.Vacuum tube:58*1800mm three target
4.Stand:Galvanized Steel 1.5mm
5.Insulation layer:55mm
Remark:
1.Solar heat storage tank diameter(mm): 410/460
2.Thickness, insulated(mm): 60
3. Vent connection(inch): 1/2
4. Electric heater connection(inch): 1
5. Water connection(inch): 1/2
6. Collector angle(degree): 30/45

Model	Tube Size	Tube Qty	Actual Capacity	Loading QTY
	MM		(L)	20' GP	40' GP	40' HQ
JIJ4715-15-NP	47*1500	15	82.5	72	150	188
JIJ4715-18-NP	47*1500	18	99	61	128	161
JIJ4715-20-NP	47*1500	20	110	56	117	147
JIJ4715-24-NP	47*1500	24	132	48	100	125
JIJ4715-30-NP	47*1500	30	165	40	83	104
JIJ5818-15-NP	58*1800	15	120	44	91	115
JIJ5818-18-NP	58*1800	18	144	37	78	98
JIJ5818-20-NP	58*1800	20	160	35	72	91
JIJ5818-24-NP	58 *1800	24	192	29	60	76
JIJ5818-30-NP	58 *1800	30	240	23	49	62
JIJ5818-36-NP	58 *1800	36	288	20	41	52
