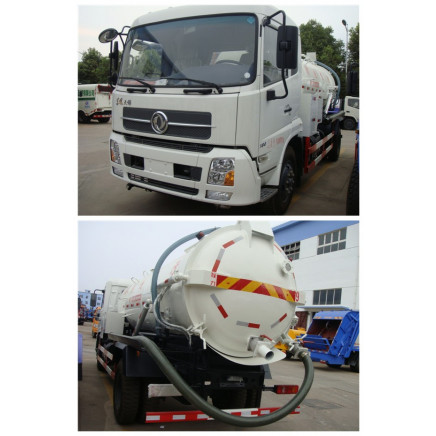

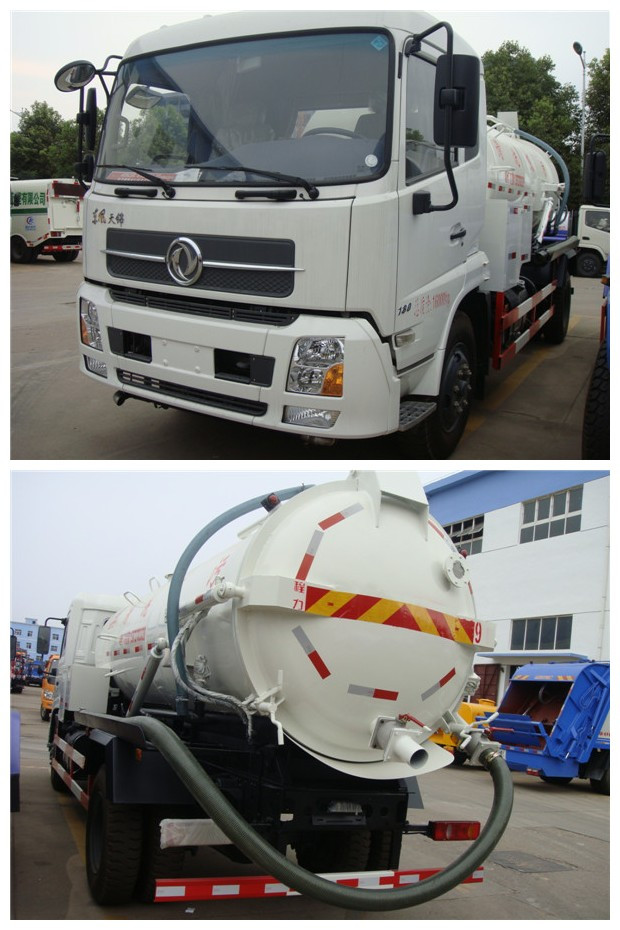

Vacuum Suction Sewage Truck with 4000L Capacity

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 30000.0-60000.0/ Piece

Price:$30000.0 - $60000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Apr 29, 2015 To Jul 21, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:SLS40

Certification:ISO9000, CCC

Emission Standard:Euro 3

Payload:4000kg

Transmission Type:Manual

Fuel:Diesel

Engine Type:4 Stroke

Tank Volume:4000L

Drive Wheel:4x2

Hoesrpower:132kw/180HP

Condition:New

Overall Dimensions L*W*H(Mm):5995X2000X2550

Engine Model:7980*2490*3380

Power:132kw/180HP

Displacement(Ml):4500

Chassis Brand:Dongfeng

Tank Shape:Cylindrical

Tank Material:5mm Thick Carbon Steel

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:SLCM

Packing:Nude Packing

Standard:ccc

Origin:Shandong

Production Capacity:200uits Per Month

Product Description

Introduction

1.We can supply all brands of special trucks, such as north Benz(beiben), Faw, Foton, Shacman, Sinotruck, JAC, Jmc, Dongfeng, Sintruk.
2. The drive type could be 4X2, 4X4, 6X2, 6X4, 6X6, 8X4
3. We can provide LHD (left hand drive) or RHD (right hand drive) vehicles.
4. Our products are Widely used in chemical enterprise, oil depot, storehouse, shop and terminal market.

Sludge suction truck is mainly used for suction, transportation and discharge of sewage from septic tank and sludge from drains.Widely used by municipal environment and sanitation department and residential management.

Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Spec

Product Name	Sewer Vacuum Suction Truck	Overall Dimension(mm)	5995x2000x2550
Gross Vehicle Weight(Kg)	6495	Fact load(kg)	4000
Curb Weight(Kg)	4385	Cab Allowed Persons	3
Appr/Dep Angle(°)	19/14	F/R Suspension(mm)	1032/1663
Axle No.	2	Wheelbase(mm)	3300
Axle Load(Kg)	2805/3690	Max Speed(Km/h)	90
Others		Equipped with PTO, Vacuum Pump,Pipe System, Hydraulic System, Valves,water-gas separator , oil-gas separator, level inspection window,etc .
[Chassis Technical Parameters]
Chassis Model	EQ1060TJ20D3	Chassis Brand	Dongfeng
Appr/Dep Angle(°)	19/15	Tyre No.	6
Spring Leaf No.	8/9+5	Tyre Specification	7.00-16
F/R Suspension(mm)	103 2/1488	Axle Load(kg)	2595/3900
Front Track(mm)	1506	Rear Track(mm)	1466
Fuel Type	Diesel	Emission Standard	Euro III
Gear box	5 speed forward with 1 reverse	Brake	Air brake
Steering Wheel	RHD	Drive Type	4x2
Engine Model	CY4102-C3F	Engine Brand	Chaoyang
Engine Power	95hp/70kw	Displacement(ml)	3856
[Superstructure Technical Parameters]
Tank Volume(L)	3000	Tank Material	Carbon Steel
Tank Thickness(mm)	5	Tank Shape	Cylindrical
