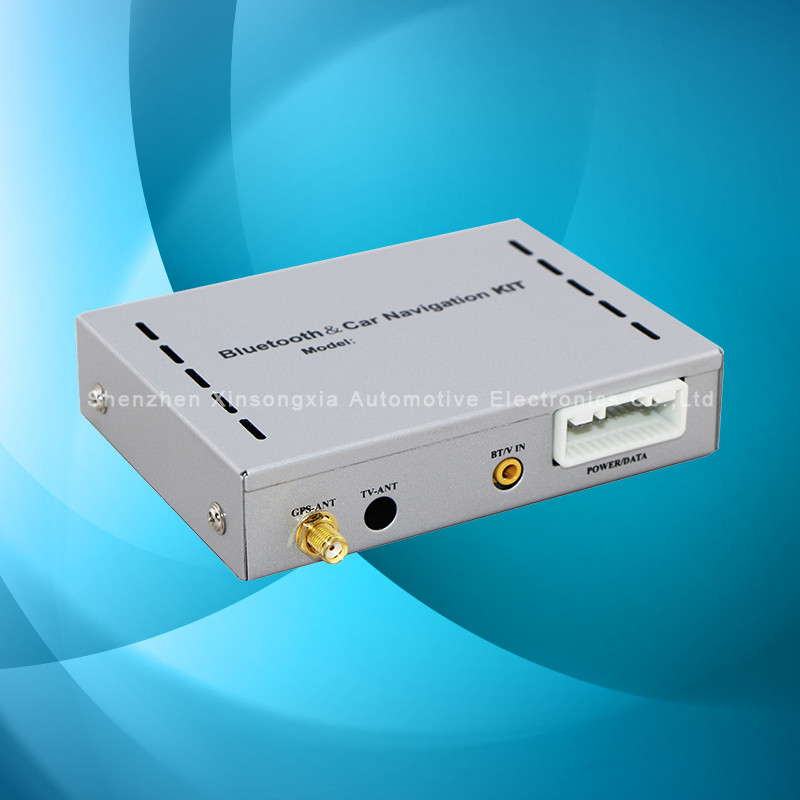

Universal GPS Navigation Box (BT)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Sets)	Unit Price
1.0	US $ 80/ Set

Price:US $80.0 / Set

Trade Terms: FOB

Payment Terms: T/T

Price Valid Time:From Mar 30, 2015 To Jun 30, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:LLT-TY8008BT

Type:GPS Navigator

Use:Automotive

Frequency:800MHz

Memory:256MB

Export Markets:Global

Additional Info.

Trademark:LLT

Packing:Standard Export Box

Standard:CCC

Origin:Shenzhen

Production Capacity:50000PCS

Product Description

Special navigation module

Brand: LLT Module number: LLT- TY8008BT

New model:

A type TY8001A (480X234):

B type TYS8002HD (800X480):

C type TY8006T (480X234): GPS AND TMC

D type TY8007T (800X480): GPS AND TMC

E type TY8008BT (480X234): GPS AND BT

F type TY8009BT (800X480): GPS AND BT

*Low-cost Navigation entertainment products;
*Various external interfaces, low power consumption, small size, easy installation;
*Support a variety of video output formats, support the two-channel high quality audio output, can link with car DVD and AV (AUDIO & VIDEO)directly;
*Built-in high sensitivity GPS receiving modules, can posit effectively; With external active antenna;
*Can directly use car-power, with ACC detection;
*GPS function through SD card,;
*Power light activity;
*BLUETOOTH function optional, Add USD18 for B/T and can get hand free calling;
*TMC function optional, Add USD22 for TMC.
*With USB port on unit, can read more audio and video
*Touch screen handwriting(Optional cost USD10)/Remote controller(Optional cost USD5.00)

Universal version, support all size LCD monitor and work with interface for Benz, Audi, BMW, Porsche, Land Rover etc.; Universal set will need touch screen 7'' or 6.5'' with touch cable, optional, Add USD10 for touch screen. Convenient and flexible.

Product accessories

Mainframe	1(standard configuration)
Dedicated wire	1(standard configuration)
Antenna	1(standard configuration)
Specification	1(standard configuration)
certification	1(standard configuration)
Warranty card	1(standard configuration)
Microphone	1(optional configuration)
Horn	1(optional configuration)
Map card	1(optional configuration)
Mute dedicated line	1(optional configuration)

Product parameters

Frequency:	664MHZ+336MHZ DSP/800MHZ
Main chip model:	Sirf Atlas V/MSB2531
Memory:	128MB/256MB
Storage space:	128MB(can expand to 8GB)
Navigation software storage:	SD card
Operating system:	WINCE6.0 CORE
Supported audio and video formats:	MP3/PCM/WMA/ Mp4/mpeg/mpg/asf/wmv/mov etc.
Support video type:	Mp4/mpeg/mpg/asf/wmv/mov etc.
Video output format:	Composite Video(CVBS,Y/C,YPbPr)/ Analog RGB
Video output voltage:	1.0Vpp/75?
Resolution:	480*230(selection by resistor)
Sound output:	Dual channel CD stereo sound
Operating temperature:	~40 to +85
Storage temperature:	~40 to +100
Operating voltage:	DC 9-16V
Tracking sensitivity:	~161dBm
Positioning accuracy:	10m, 2D RMS,5m, 2D RMS, WAAS enable
GPS Antenna type:	External active ceramic antenna


Statement:All brands on this website are belong to original company, if do not want to use this website, please note in time and delete.
