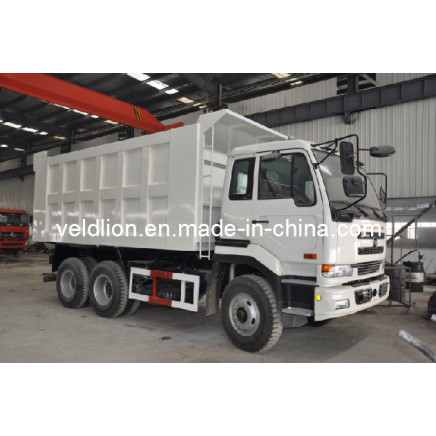

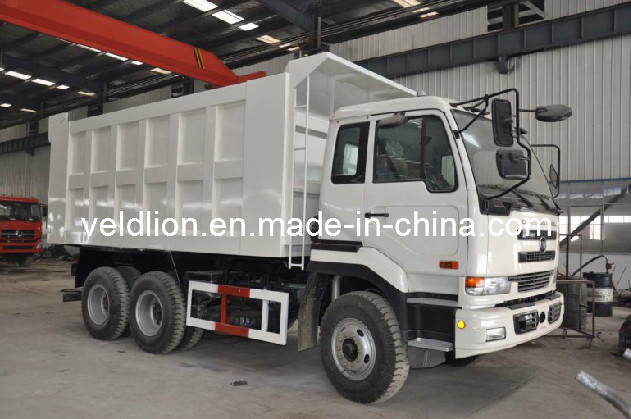

Ud 6x4 Dump Truck (WS3257)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, EXW, CIF, FCA

Payment Terms:L/C, T/T

Trademark:VELDLION

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:WS3257

Transmission Type:Manual

Power:Diesel

Load Capacity:25T

Emission Standard:Euro 3

Drive Wheel:4WD

Seats:?5

Tire Type:Solid Tire

Tire Certification:ISO

Tire Design:Radial

Condition:New

Truck:Dump Truck

Truck Type:Dump Truck

Type:Heavy Duty Truck

Export Markets:Global

Additional Info.

Trademark:VELDLION

Packing:Nude

Origin:China

Production Capacity:200

Product Description

UD 6X4 Dump truck

Our trucks Driving Whell with: 4x2 4x4 6x2 6x4 6x6 8x4...

The main products are
1. Water truck
2. Fuel tanker truck, Oil Truck, Tanker Truck
3. Fire engine truck
4. Truck mounted crane, crane truck
5. Dump truck, tipper, heavy duty truck
6. LPG Tank Truck, LPG Truck, LPG Tanker, LPG Semi-trailer, LPG Storage Tanker
6. Bulk cement truck
7. Concrete mixer truck, mixer truck, cement mixer truck
8. Garbage truck, Self-loading garbage truck, garbage compactor truck, sealed garbage truck
9. Fecal suction truck, sewage suction truck
10. High altitude working truck
11. Chemical liquid truck
12. Van truck, insulated truck, refrigeration truck
13. Semi Trailer, Low plate semi-trailer, oil semi-trailer, van semi-trailer, bulk cement transportation semi-trailer, container semi-trailer, chemical liquid semitrailer, etc more than 300 types in total.

Our products sell well in domestic and overseas markets, such as Africa, Southeast Asia, The Middle East and South America

Product	NISSAN UD 6x4 Dumper Truck
Chassis type	DND3253
Capacity	31-40T
Parameters	Overall dimension length/width/height (mm)	7870x2490x3200
	Box dimension length/width/height(mm)	5400x2300x1215
	Total Mass(kg)	25000
	Approach angle/ Departure angle(mm)	25/40
	Front suspension/rear suspension(mm)	1400/1520
	Fuel Type	Diesel
	Max Speed	95
Engine	Type	MDB3
	Horse Power	335HP
	Displacement/Power(kw)	12503/246
Chassis	Drive type	6x4
	Wheelbase(mm)	3650+1300
	Tread(front/rear)	2015 1860/1860
	Cab	3person
	Number of spring axle(front/rear)	11/10
	Tire Type	11.00R20
Cab description	The floating damping structure,whole electrical tippable cabin,with airconditioner, new designed upholstery, 3 passengers allowed,seat can adjustment
Dump truck description	This type of dump truck is remodel from the Nissan chasis DND3253.With high horse power andstrong durability,that suitable for any bad of conditions. It is so many after service stations around all over the world.
Other description	1.Engine:Original Japan Nissan 2.Transmission:Original Japan Nissan 3.Axles:From Japan 4.Girder:Made in China(China Girder is stronger than Japan) 5.Cab:Made in China,but all the cab mould and production line from Japan 6.Tyre:Made in China 7.Hydraulic jacking:hyva from Holand technology 8.Emission standards:Europe 3
