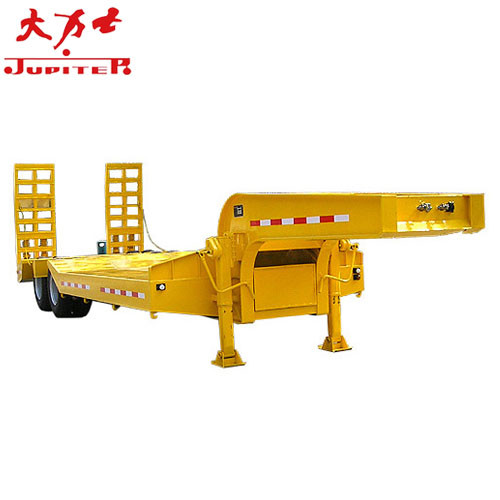

Two Axle Lowbed Semi Trailer for Heavy Machine Transportation (FTW9333TD)

More Views

Two Axle Lowbed Semi Trailer for Heavy Machine Transportation (FTW9333TD)

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
2.0	US $ 14000/ Piece

Price:US $14000.0 / Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, Paypal, Money Gram, Western Union

Price Valid Time:From Feb 05, 2015 To Apr 23, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:FTW9333TD

Type:Towing Pin

Towing Pin Material:Carbon Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Flexible Universal Joint

Brake Pad Material:Ceramic

Towing Pin Type:Mushroom Type

Towing Pin Diameter:50mm

Differential Gear Type:Gear Type

Independent Suspension Type:Trailing Arm Type

Colour:Yellow or as Your Request

Item:Two Axle Lowbed Semi Trailer

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:JUPITER Two Axle Lowbed Semi Trailer

Packing:Nude, Coating with Wax

Standard:CCC

Origin:China

HS Code:87163910

Production Capacity:90 Pieces/Month

Product Description

Two Axle Lowbed Semi Trailer for Heavy Machine Transportation

This low bed trailer is a kind of trailer that mainly used to transport various heavy trucks including tow tractors, motor bused and special vehicles, railway vehicles, mining machines, forestry machineries, agricultural machineries including excavators, bulldozers, loaders, pavers, and cranes, and many other heavy goods. The lower the center of gravity, the better its stability and safety and the stronger its capacity of transporting ultrahigh goods and going through barriers at the top of its head.

Its main components include chassis, axle, tyre, suspension system, steel rim, and electrical system.
We can provide tri-axial and bi-axial low bed trailers for our clients.
Spare wheel carrier
2 sets of spare wheel carrier
Pneumatic
Braking system
Double line air brakes
Electrical system
24V system with standard 7 pole plug
Rear electrical lighting, brake lights, indicators, fog lights and reversing light
Painting
Sand blasting before painting.
Anti corrosive primer,
Top paint color meet client customer wish
Accessory
One tool box, side protection
Option
Axle: BPW, SAF, Fuwa
Tyre: Hankook, double coin
Suspension: Air suspension
Braking system: WABCO, KNORR
Note: All weight and dimensions mentioned above are approximate, so changes are available depending on the selected prime movers and specific needs of our clients.

The standard specifications as below:

Tare Weight	About 5.6-8T
Dimension	12450mm2490mm1575mm (Size can be designed)
Loading Capacity (T)	? 45 T
Axle	13 T/16T, FUWA /BPW /Huajing Brand
Rim	9.00-22.5 9.75-22.5
Tire	12.00R22.5/ 315 80R22.5
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand )
Spring leaf	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type (Optional) Or use turntable (diameter is 1.1m)
Draw Bar	44 or 46mm square tube (length is 1.4m )
Tractor Hook	DN50
Support leg	Without
Main beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel .
Side beam	16mm or 18mm channel steel ( Material is Q235steel ).
Bottom Platform	3mm diamond steel plate
Brake chamber	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); one piece of 45L air tanks (Special for Export market)
ABS	Optional
Twist Locks	Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)
Valve	WABCO valve
Light	LED light (Special for Export market)
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.
