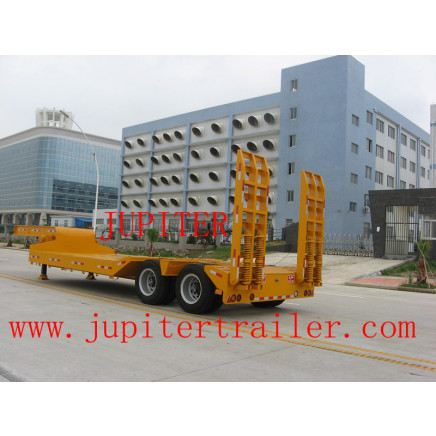

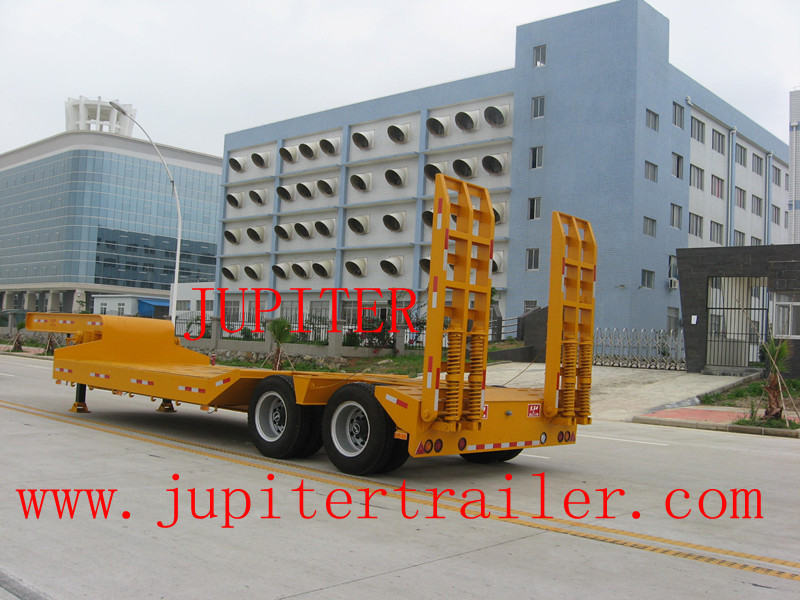

Two Axle Low Bed Semi Trailer (FTW9330TD)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
2.0	US $ 20000.0-30000.0/ Piece

Price:$20000.0 - $30000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Mar 13, 2015 To Jun 13, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:FTW9330TD

Type:Towing Pin

Towing Pin Material:Alloy Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Flexible Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:90mm

Differential Gear Type:Gear Type

Independent Suspension Type:Trailing Arm Type

Size:as Your Requirements

Colour:as Your Request

Export Markets:Global

Additional Info.

Trademark:Jupiter

Packing:Nude, Coating with Wax

Standard:CCC

Origin:China

Production Capacity:90 Pieces/Month

Product Description

This low bed trailer is a kind of trailer that mainly used to transport various heavy trucks including tow tractors, motor bused and special vehicles, railway vehicles, mining machines, forestry machineries, agricultural machineries including excavators, bulldozers, loaders, pavers, and cranes, and many other heavy goods. The lower the center of gravity, the better its stability and safety and the stronger its capacity of transporting ultrahigh goods and going through barriers at the top of its head.

Its main components include chassis, axle, tyre, suspension system, steel rim, and electrical system.

We can provide tri-axial and bi-axial low bed trailers for our clients.

Spare wheel carrier
2 sets of spare wheel carrier

Pneumatic
Braking system
Double line air brakes

Electrical system
24V system with standard 7 pole plug
Rear electrical lighting, brake lights, indicators, fog lights and reversing light

Painting
Sand blasting before painting.
Anti corrosive primer,
Top paint color meet client customer wish

Accessory
One tool box, side protection

Option
Axle: BPW, SAF
Tyre: Hankook, double coin
Suspension: Air suspension
Braking system: WABCO, KNORR

Note: All weight and dimensions mentioned above are approximate, so changes are available depending on the selected prime movers and specific needs of our clients.

Bottom Flange Thickness	18mm
Bottom Flange Width	140mm
Floor	chequer plate 3mm
Axle	2 units BPW 13T
Suspension	1 unit FUWA 13T Tandem
Spring Leaf	4 units 8-pieces type
Tyres	8 units 12R22.5-PR16
Wheel Rim	8 units 9.00*22.5
Kingpin	1 unit JOST KZ1008
Landing Gear	1 unit JOST C200T
Spare wheel carrier	2 units
Relay Valve	1 unit WABCO RE-6 4 ports
Electric Socket	7 poles
Single Air Chamber	2 units T30 MBA
Doulbe Air Chamber	4 units T3030 MBA
Air Tank	1 unit 48L
